5305-01-371-4281

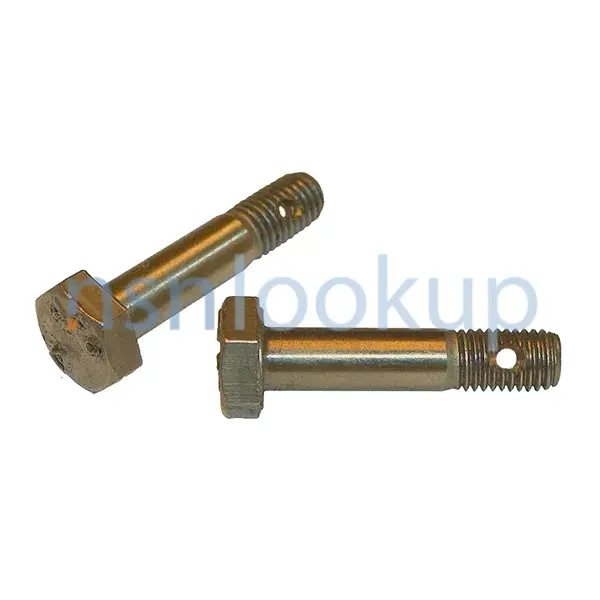

Machine Screw
5305013714281 013714281 AN174-32
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
May 2023
4
Marketplace 5305-01-371-4281
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-371-4281 5+ Documents (More...)
AN174-32 SCREW,MACHINE 27 EA NS Request Quotation Updated Every Day 5305-01-371-4281 RQST NE Updated
Every Day 5305-01-371-4281 RQST Updated Every Day 5305-01-371-4281 RQST NE Related Documents 5305-01-
Similar Supply Items to 9999-99-144-2922 5305-01-177-9701 5305-01-131-5844 5305-01-087-7005 5305-01-371-4281
Similar Supply Items to 9999-99-401-3802 5305-01-177-9701 5305-01-131-5844 5305-01-087-7005 5305-01-371-4281
Similar Supply Items to 9999-99-404-2459 5305-01-177-9701 5305-01-131-5844 5305-01-087-7005 5305-01-371-4281
Similar Supply Items to 9999-99-404-2669 5305-01-177-9701 5305-01-131-5844 5305-01-087-7005 5305-01-371-4281
Restrictions 5305-01-371-4281
5305-01-371-4281 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-01-371-4281
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-371-4281
- Belgium (ZB01)
- Effective Date:
- 1 Dec 1994
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5305-01-371-4281
- Part Number
- Manufacturer
- Status
- AN174-32
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
Datasheet 5305-01-371-4281
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- Fastener Length [AASB]
- 3.281 Inches Nominal
- Head Height [AASU]
- 0.140 Inches Minimum And 0.172 Inches Maximum
- Head Style [AASK]
- Dished Hexagon
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Screw Material [CYAU]
- Steel Corrosion Resisting
- Thread Series Designator [THSD]
- Unf
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 28
Similar Supply Items to 5305-01-371-4281
Freight Information 5305-01-371-4281
5305-01-371-4281 has freight characteristics managed by Germany.. 5305-01-371-4281 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
