5305-01-342-3676
Thumbscrew
5305013423676 013423676 12591400
An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified). View more Thumbscrew
November 2023
2
Marketplace 5305-01-342-3676
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-342-3676 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5305-01-342-3676 RQST NE Updated Every Day 5305-01-342-3676 RQST
Updated Every Day 5305-01-342-3676 RQST NE Related Documents 5305-01-342-3676 1+ Documents ( More...
Restrictions 5305-01-342-3676
5305-01-342-3676 is a Thumbscrew that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-342-3676
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-342-3676
- US Army (A919)
- Effective Date:
- 1 Dec 2009
- Former MOE Rule:
- A403
- Supplementary Receivers:
- BFCN
Approved Sources 5305-01-342-3676
- Part Number
- Manufacturer
- Status
- 12591400
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-342-3676
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- End Item Identification [AGAV]
- Used On Abf334 Ar5
- Fastener Length [AASB]
- 1.630 Inches Nominal
- Head Height [AASU]
- 0.380 Inches Nominal

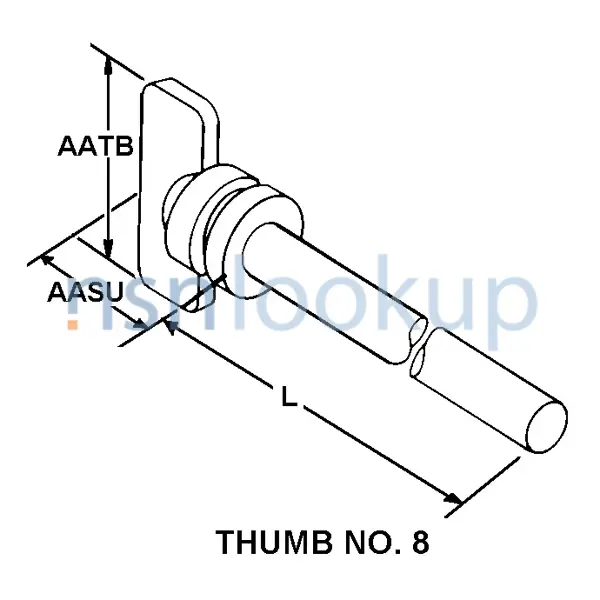

- Head Style [AASK]
- Thumb No. 8
- Material [MATT]
- Steel Comp 1018 Overall And Steel Comp 1035 Overall
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Material Document And Classification [MDCL]
- Astm A108 Assn Std Single Material Response Overall Or Astm A576 Assn Std Single Material Response Overall
- Point Chamfer Angle [CWDK]
- 45.0 Degrees Nominal
- Point Length [AAUY]
- 0.040 Inches Nominal
- Point Style [ABQJ]
- Flat
- Thread Series Designator [THSD]
- Unc
- Width Between Flats [AATB]
- 0.630 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.880 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 16
Weapon Systems (WSDC) 5305-01-342-3676
DLA Procurement Analysis 5305-01-342-3676
- Last Stock Position:
- 54 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-01-342-3676
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- GJ
- Artillery
Howitzer, Light Towed, 105mm, M119A1
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5305-01-342-3676
Freight Information 5305-01-342-3676
5305-01-342-3676 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5305-01-342-3676 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-342-3676 is not classified as a special type of cargo when transported by water. 5305-01-342-3676 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-01-342-3676
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-01-342-3676 1 Records
Contracting Technical Data File (CTDF) 5305-01-342-3676 October 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
