5305-01-334-1318

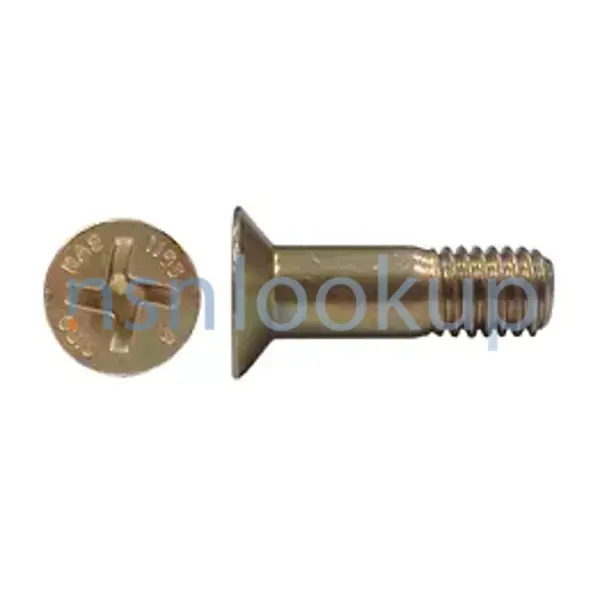

Close Tolerance Screw
5305013341318 013341318 NAS1153E6D
A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. View more Close Tolerance Screw
May 2023
7
Marketplace 5305-01-334-1318
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-334-1318 5+ Documents (More...)
NAS1153E6D SCREW,CLOSE TOLERANCE 26 EA NS Request Quotation FedMall Updated Every 15 Minutes 5305-01-
334-1318 BUY NE FedMall Updated Every Day 5305-01-334-1318 RQST NE Updated Every Day 5305-01-334-1318
Restrictions 5305-01-334-1318
5305-01-334-1318 is a Close Tolerance Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-334-1318
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-334-1318
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5305-01-334-1318
- Part Number
- Manufacturer
- Status
- NAS1153E6D
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-334-1318
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Head Largest Bearing Surface To Shank Hole Center [CRZS]
- 0.509 Inches Minimum First Hole And 0.549 Inches Maximum First Hole
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 10.0 Degrees Maximum
- Fastener Length [AASB]
- 0.636 Inches Minimum And 0.666 Inches Maximum
- Grip Diameter [AAUR]
- 0.1885 Inches Minimum And 0.1895 Inches Maximum
- Grip Length [ANEE]
- 0.365 Inches Minimum And 0.385 Inches Maximum
- Head Diameter [AASL]
- 0.328 Inches Minimum And 0.385 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Material [MATT]
- Iron Alloy 660 Overall
- Minimum Tensile Strength [CQBC]
- 16000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Offset Cruciform (Torque Set)
- Material Document And Classification [MDCL]
- Ams5737 Assn Std Single Material Response Overall
- Shank Unthreaded Hole Diameter [AAWB]
- 0.070 Inches Minimum First Hole And 0.080 Inches Maximum First Hole
- Thread Series Designator [THSD]
- Unjf
- Specification/Standard Data [ZZZK]
- 80205-Nas1153 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.276 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 32
DLA Procurement Analysis 5305-01-334-1318
Management Data 5305-01-334-1318
Similar Supply Items to 5305-01-334-1318
Freight Information 5305-01-334-1318
5305-01-334-1318 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096640. A Sub NMFC of X. It has a NMFC Description of SCREWS, IRON OR STEEL. 5305-01-334-1318 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50600 which rates the freight between FCL and LCL. 5305-01-334-1318 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-334-1318 is not classified as a special type of cargo when transported by water. 5305-01-334-1318 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
