5305-01-333-8819

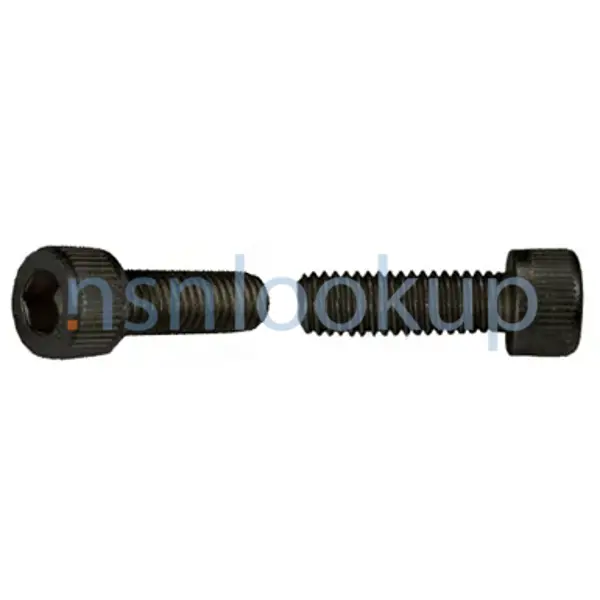

Socket Head Cap Screw
5305013338819 013338819 NAS1351-06-8
An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw
May 2023
8
Marketplace 5305-01-333-8819
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-333-8819 5+ Documents (More...)
NAS1351-06-8 SCREW,CAP,SOCKET HEAD 77 EA NS Request Quotation Updated Every Day 5305-01-333-8819 RQST
Socket Head Cap Screw 5305013338819 NAS1351-06-8 An externally threaded fastener whose threaded portion
Restrictions 5305-01-333-8819
5305-01-333-8819 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-333-8819
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-333-8819
- Taiwan, Province of China (YE01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5305-01-333-8819
- Part Number
- Manufacturer
- Status
- NAS1351-06-8
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-333-8819
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Thread Series Designator [THSD]
- Unrf
- Nominal Thread Diameter [AHYM]
- 0.138 Inches
- Thread Quantity Per Inch [CMLP]
- 40
- Thread Class [AAJD]
- 3A
- Fastener Length [AASB]
- 0.500 Inches Nominal
- Material [MATT]
- Steel Overall
- Head Style [AASK]
- Fillister
- Internal Drive Style [ABQZ]
- Drilled Holes
Similar Supply Items to 5305-01-333-8819
Freight Information 5305-01-333-8819
5305-01-333-8819 has freight characteristics managed by the Department of Energy (DOE).. 5305-01-333-8819 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
