5305-01-304-2729

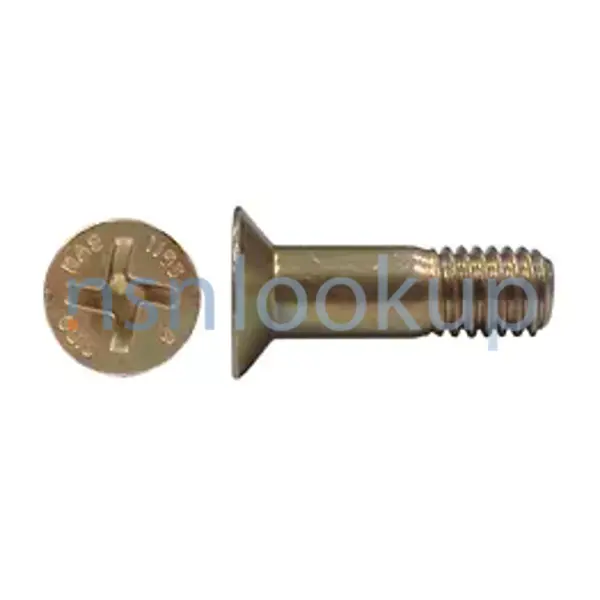

Close Tolerance Screw
5305013042729 013042729 NAS1153-18DP
A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. View more Close Tolerance Screw
May 2023
8
Marketplace 5305-01-304-2729
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-304-2729 5+ Documents (More...)
5305-01-304-2729 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-304-2729
Day 5305-01-304-2729 RQST NE Restrictions 5305-01-304-2729 DEMIL: A | DEMILI : 1 | CRITICALITY : X |
Restrictions 5305-01-304-2729
5305-01-304-2729 is a Close Tolerance Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-01-304-2729
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-304-2729
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5305-01-304-2729
- Part Number
- Manufacturer
- Status
- NAS1153-18DP
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-304-2729
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 1.386 Inches Minimum And 1.416 Inches Maximum
- Grip Diameter [AAUR]
- 0.1885 Inches Minimum And 0.1895 Inches Maximum
- Grip Length [ANEE]
- 1.125 Inches Nominal
- Hardness Rating [CQFM]
- 36.0 Rockwell C Minimum Overall And 40.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.328 Inches Minimum And 0.385 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Hole Configuration Style [CRHC]
- Round
- Hole Diameter [AAUB]
- 0.070 Inches Minimum And 0.080 Inches Maximum
- Hole Quantity [ASXK]
- 1
- Hole Type [BQDM]
- Drilled
- Material Document And Classification [MDCL]
- Mil-S-5626 Mil Spec 1St Material Response Overall Or Mil-S-5000 Mil Spec 2Nd Material Response Overall Or Mil-S-8503 Mil Spec 3Rd Material Response Overall Or Mil-S-6098 Mil Spec 4Th Material Response Overall Or Mil-S-6049 Mil Spec 5Th Material Response Overall
- Material [MATT]
- Steel Comp 4140 Overall Or Steel Comp E4340 Overall Or Steel Comp 6150 Overall Or Steel Comp 8735 Overall Or Steel Comp 8740 Overall
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.192 Inches
- Internal Drive Style [ABQZ]
- Offset Cruciform (Torque Set)
- Thread Series Designator [THSD]
- Unjf
- Specification/Standard Data [ZZZK]
- 80205-Nas1153 Professional/Industrial Association Standard
- Surface Finish [CSYM]
- 32.0 Microinches Grip
- Surface Finish [CSYM]
- 32.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2 Cl 3 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.276 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 32
