5305-01-297-1772

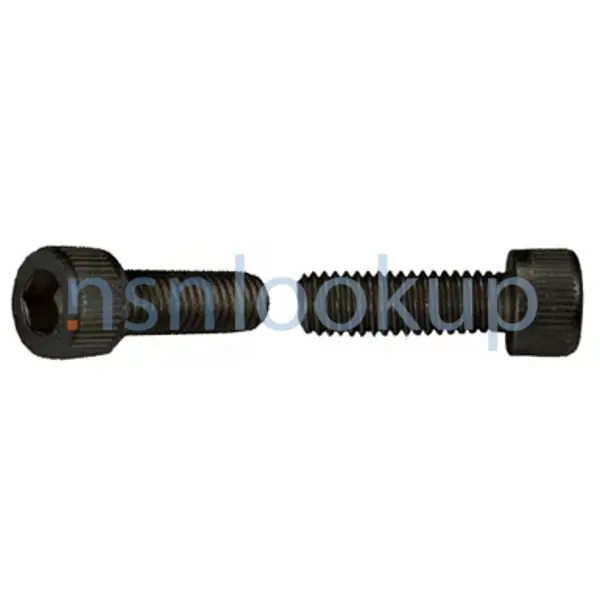

Socket Head Cap Screw
5305012971772 012971772 FF-S-86 NAS1351-14H56P 3188596 ITEM 26
An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw
May 2023
7
Marketplace 5305-01-297-1772
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5305-01-297-1772 5+ Documents (More...)
FF-S-86 SCREW,CAP,SOCKET HEAD 4 EA NS Request Quotation Updated Every Day 5305-01-297-1772 RQST NE Updated
Every Day 5305-01-297-1772 RQST Updated Every Day 5305-01-297-1772 RQST NE Related Documents 5305-01
Socket Head Cap Screw 5305012971772,FF-S-86 Account Upgrade 5305-01-297-1772Socket Head Cap Screw5305012971772
012971772 FF-S-86 NAS1351-14H56P 3188596 Reflective Tape 9390014862295014862295 Updated Every Day 981
TYVI3/8-16UNC-3AX3/4 LG(FF-S-TYI) 3/8-16UNC -3AX3/ 4 LG(FF-S-86 TY 3/8-16UNC-3AX3/ 4LG(FF-S-86 TYV701
/ 4LG(FF-S-86 TYV TYP V1 FF-S-86 TYP V1 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-620-3410
TY 3/8-16UNC-3AX3/ 4LG(FF-S-86 TYV701 / 4LG(FF-S-86 TYV TYP V1 FF-S-86 TYP V1 https//www.nsnlookup.com
TY 3/8-16UNC-3AX3/ 4LG(FF-S-86 TYV TY 3/8-16UNC-3AX3/ 4LG(FF-S-86 TYV TYP V1 FF-S-86 TYP V1 UNC-3A 1
TY 3/8-16UNC-3AX3/ 4LG(FF-S-86 TYV TY 3/8-16UNC-3AX3/ 4LG(FF-S-86 TYV TYP V1 FF-S-86 TYP V1 UNC-3A
1 -3AX3/ 4LG(FF-S-86 TYV TY 3/8-16UNC-3AX3/ 4LG(FF-S-86 TYV TYP V1 FF-S-86 TYP V1 UNC-3A 1-2 IN 845-
Restrictions 5305-01-297-1772
5305-01-297-1772 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-297-1772
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-297-1772
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Jul 2001
Approved Sources 5305-01-297-1772
- Part Number
- Manufacturer
- Status
- NAS1351-14H56P
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- FF-S-86
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 3188596 ITEM 26
- 77068 - Allied-Signal Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 3188596 ITEM 26
- 59364 - Honeywell International Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-01-297-1772
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 3.360 Inches Minimum And 3.500 Inches Maximum
- Head Diameter [AASL]
- 1.293 Inches Minimum And 1.312 Inches Maximum
- Head Height [AASU]
- 0.864 Inches Minimum And 0.875 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Hole Configuration Style [CRHC]
- Round Internal Hexagon
- Hole Diameter [AAUB]
- 0.253 Inches Minimum And 0.273 Inches Maximum
- Hole Quantity [ASXK]
- 6
- Hole Type [BQDM]
- Drilled
- Material [MATT]
- Steel Overall
- Nominal Thread Diameter [AHYM]
- 0.875 Inches
- Internal Drive Style [ABQZ]
- Hexagon
- Thread Series Designator [THSD]
- Unrf
- Width Across Flats [ASDB]
- 0.7500 Inches Minimum And 0.7570 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas1351 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 2 Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 2.250 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 14
