5305-01-285-9284
Shoulder Screw
5305012859284 012859284 717512848-001
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD. View more Shoulder Screw
November 2023
3
Marketplace 5305-01-285-9284
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-285-9284 4+ Documents (More...)
/fsg-53/fsc-5305/us

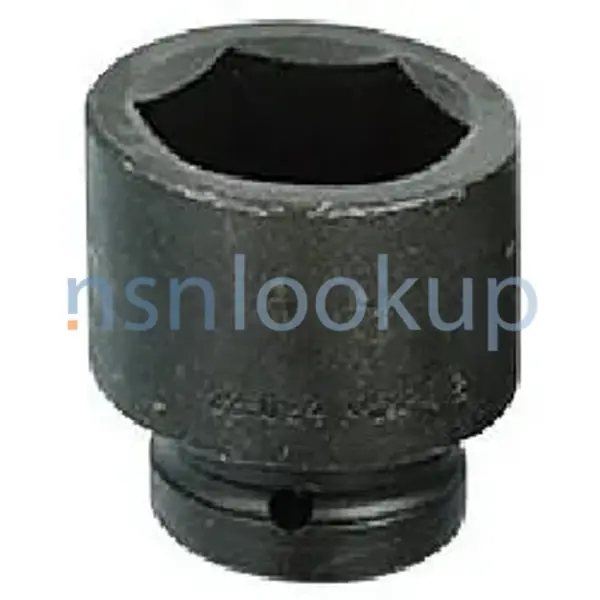

Photo 1/3 NSN 5305-01-285-9284 (Identification) 2/3 NSN 5305-01-285-9284 (Identification) 3/3 -
RQST NE Updated Every Day 5305-01-285-9284 RQST Updated Every Day 5305-01-285-9284 RQST NE Related Documents
/fsg-99/fsc-9999/uk
/fsg-84/fsc-8415/nz
/fsg-84/fsc-8455/ca
Restrictions 5305-01-285-9284
5305-01-285-9284 is a Shoulder Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-285-9284
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-285-9284
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
Approved Sources 5305-01-285-9284
- Part Number
- Manufacturer
- Status
- 717512848-001
- Manufacturer
- 04939 - Lockheed Martin Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-285-9284
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.357 Inches Minimum And 0.387 Inches Maximum
- Head Height [AASU]
- 0.086 Inches Nominal
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp 630 Overall
- Nominal Thread Diameter [AHYM]
- 0.086 Inches
- Internal Drive Style [ABQZ]
- Slot
- Material Document And Classification [MDCL]
- Ams 5643 Assn Std Single Material Response Overall
- Shoulder Diameter [AATN]
- 0.094 Inches Nominal All Shoulders
- Shoulder Length [AATX]
- 0.025 Inches Minimum Second Shoulder And 0.030 Inches Maximum Second Shoulder
- Shoulder Length [AATX]
- 0.064 Inches Minimum First Shoulder And 0.067 Inches Maximum First Shoulder
- Shoulder Shape [CWYB]
- Round All Shoulders
- Special Features [FEAT]
- Relief 0.180-0.182 In. Lg; 0.074-0.076 In. Dia
- Thread Quantity Per Inch [CMLP]
- 56
- Thread Series Designator [THSD]
- Unc
- Width Between Flats [AATB]
- 0.177 Inches Minimum And 0.187 Inches Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.327 Inches Minimum And 0.362 Inches Maximum
Weapon Systems (WSDC) 5305-01-285-9284
DLA Procurement Analysis 5305-01-285-9284
- Last Stock Position:
- 2 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-01-285-9284
Similar Supply Items to 5305-01-285-9284
Freight Information 5305-01-285-9284
5305-01-285-9284 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093490. A Sub NMFC of X. It has a NMFC Description of BOLT/NUT/SCREW/CLIPS/FASTENER/ETC. 5305-01-285-9284 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50270 which rates the freight between FCL and LCL. 5305-01-285-9284 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-285-9284 is not classified as a special type of cargo when transported by water. 5305-01-285-9284 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-01-285-9284
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
