5305-01-264-1460
Tapping Screw
5305012641460 012641460 30817
A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER. View more Tapping Screw
May 2023
3
Marketplace 5305-01-264-1460
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-264-1460 5+ Documents (More...)
Updated Every Day 5305-01-264-1460 RQST NE Updated Every Day 5305-01-264-1460 RQST Updated Every Day
/fsg-53/fsc-5305/us 5305-01-264-1460 Tapping Screw 5305012641460 012641460,30817 30817 A hardened externally
https//www.nsnlookup.com /fsg-53/fsc-5315/it 5315-15-063-0541 Spring Pin 5315150630541 150630541,0-30817
0-30817 A tubular item, so formed as to provide a spring action against the inside wall of a hole when
Datasheet Management /fsc-5998/us 5998-01-472-5913 Circuit Card Assembly 5998014725913014725913 900-30817
208-5454 Electrical Rotating Equipment End Bell 6901Chemical Vapor Samp6665015376901 0153769015-15-30817
a day Upgrade your Account Upgrade 6665-01-537-6901Chemical Vapor Samp6665015376901 0153769015-15-30817
a day Upgrade your Account Upgrade 6665-01-537-6901Chemical Vapor Samp6665015376901 0153769015-15-30817
Updated Every Day 5962-01-029-9731 RQST Updated https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-264-1460
Tapping Screw 5305012641460 012641460,30817 6901Chemical Vapor Samp6665015376901 0153769015-15-
Restrictions 5305-01-264-1460
5305-01-264-1460 is a Tapping Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-264-1460
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-264-1460
- US Army (A919)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CL
Approved Sources 5305-01-264-1460
- Part Number
- Manufacturer
- Status
- 30817
- Manufacturer
- 06650 - Bell And Howell Phillipsburg Co (Obsolete)
- Original Design
- Original Design
Datasheet 5305-01-264-1460
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Extended Washer Diameter [AATC]
- 0.322 Inches Minimum And 0.348 Inches Maximum
- Extended Washer Thickness [AATD]
- 0.019 Inches Minimum And 0.031 Inches Maximum
- Fastener Length [AASB]
- 0.375 Inches Nominal
- Features Provided [CBBL]
- Casehardened
- Head Height [AASU]
- 0.127 Inches Minimum And 0.129 Inches Maximum
- Head Style [AASK]
- Hexagon Extended Washer
- Material [MATT]
- Steel Overall
- Nonmachine Nominal Thread Diameter [CTYF]
- 0.164 Inches

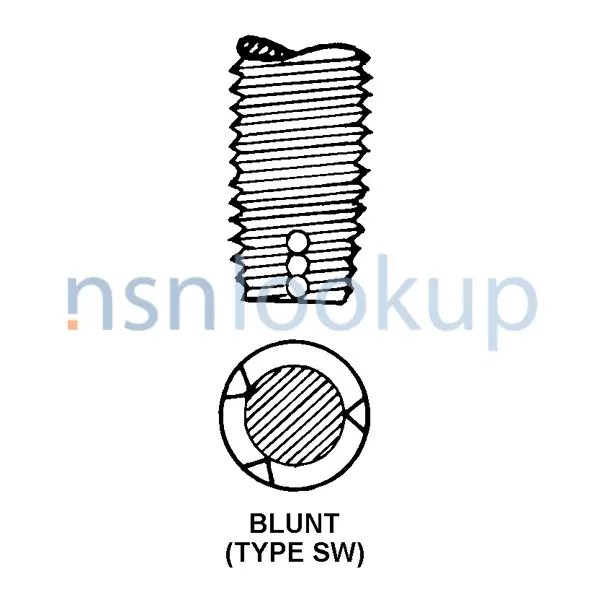

- Nonmachine Thread Style [CRGF]
- Blunt (Type Sw)
- Internal Drive Style [ABQZ]
- W/O Internal Drive
- Width Between Flats [AATB]
- 0.244 Inches Minimum And 0.250 Inches Maximum
- Surface Treatment [SFTT]
- Cadmium Overall
DLA Procurement Analysis 5305-01-264-1460
Management Data 5305-01-264-1460
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5305-01-264-1460
Freight Information 5305-01-264-1460
5305-01-264-1460 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096640. A Sub NMFC of X. It has a NMFC Description of SCREWS, IRON OR STEEL. 5305-01-264-1460 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50600 which rates the freight between FCL and LCL. 5305-01-264-1460 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-264-1460 is not classified as a special type of cargo when transported by water. 5305-01-264-1460 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-01-264-1460
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5305-01-264-1460 October 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
