5305-01-204-4697
Close Tolerance Screw
5305012044697 012044697 NAS1221-4-14
A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. View more Close Tolerance Screw
August 2023
12
Marketplace 5305-01-204-4697
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-204-4697 1+ Documents (More...)

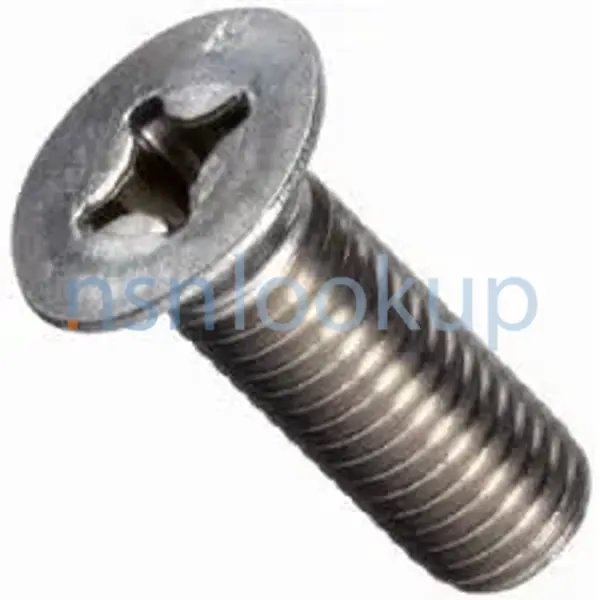

Photo 1/3 NSN 5305-01-204-4697 (Identification) 2/3 NSN 5305-01-204-4697 (Identification) 3/3 -
RQST NE Updated Every Day 5305-01-204-4697 RQST Updated Every Day 5305-01-204-4697 RQST NE Related Documents
Restrictions 5305-01-204-4697
5305-01-204-4697 is a Close Tolerance Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-204-4697
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-204-4697
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Jun 2003
- Australia (ZA01)
- Effective Date:
- 1 Jan 1997
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Nov 1998
- Germany (ZG01)
- Effective Date:
- 1 Aug 1996
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5305-01-204-4697
- Part Number
- Manufacturer
- Status
- NAS1221-4-14
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-204-4697
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 1.286 Inches Minimum And 1.316 Inches Maximum
- Grip Diameter [AAUR]
- 0.2470 Inches Minimum And 0.2495 Inches Maximum
- Grip Length [ANEE]
- 0.865 Inches Minimum And 0.885 Inches Maximum
- Hardness Rating [CQFM]
- 36.0 Rockwell C Minimum Overall And 40.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.461 Inches Minimum And 0.507 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Material [MATT]
- Steel Comp 4140 Overall Or Steel Comp 4340 Overall Or Steel Comp 8740 Overall
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Internal Drive Style [ABQZ]
- High-Torque
- Specification/Standard Data [ZZZK]
- 80205-Nas1221 Professional/Industrial Association Standard
- Surface Finish [CSYM]
- 32.0 Microinches Grip
- Surface Finish [CSYM]
- 32.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty2,Cl2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.401 Inches Minimum And 0.451 Inches Maximum
- Thread Series Designator [THSD]
- Unjf
- Thread Quantity Per Inch [CMLP]
- 28
