5305-01-177-9701

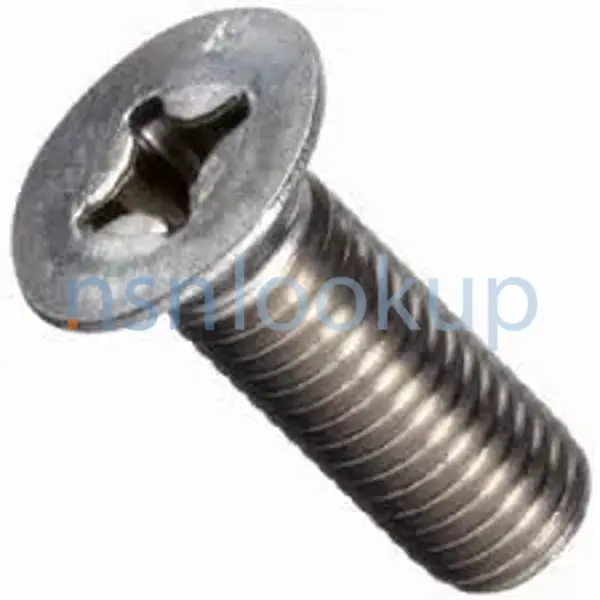

Machine Screw
5305011779701 011779701 NAS1221-04-8
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
June 2023
7
Marketplace 5305-01-177-9701
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-177-9701 5+ Documents (More...)
NAS1221-04-8 SCREW,MACHINE 138 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1221-04-8 SCREW,MACHINE 840 EA NS Request Quotation Updated Every Day 5305-01-177-9701 RQST NE Updated
EDC: | ADPEC : 9999-99-001-7219 is a Machine Screw Similar Supply Items to 9999-99-001-7219 5305-01-177-9701
EDC: | ADPEC : 9999-99-001-7232 is a Machine Screw Similar Supply Items to 9999-99-001-7232 5305-01-177-9701
EDC: | ADPEC : 9999-99-001-7288 is a Machine Screw Similar Supply Items to 9999-99-001-7288 5305-01-177-9701
Jack-Support Shoe 2590012556371 012556371 091-0214 5120-01-210-8792 5331-01-220-5499 5331-01-273-4551 5305-01-177-9701
Sleeve Spacer 5365011754833 011754833 091-0214 5120-01-210-8792 5331-01-220-5499 5331-01-273-4551 5305-01-177-9701
Restrictions 5305-01-177-9701
5305-01-177-9701 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-177-9701
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-177-9701
- US Army (A919)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Aug 2005
Approved Sources 5305-01-177-9701
- Part Number
- Manufacturer
- Status
- NAS1221-04-8
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-177-9701
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 0.717 Inches Minimum And 0.747 Inches Maximum
- Hardness Rating [CQFM]
- 36.0 Rockwell C Minimum And 40.0 Rockwell C Maximum
- Head Diameter [AASL]
- 0.194 Inches Minimum And 0.225 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.112 Inches
- Internal Drive Style [ABQZ]
- High-Torque
- Screw Material Document And Classification [CYAW]
- Mil-S-5626 Mil Spec 1St Material Response Or Mil-S-5000 Mil Spec 2Nd Material Response Or Mil-S-6049 Mil Spec 3Rd Material Response
- Screw Material [CYAU]
- Steel Comp 4140 Or Steel Comp E4340 Or Steel Comp 8740
- Screw Surface Treatment Document And Classification [CYBE]
- Qq-P-416 Ty2 Cl 2 Fed Spec Single Treatment Response
- Screw Surface Treatment [CYBA]
- Cadmium And Chromate
- Specification/Standard Data [ZZZK]
- 80205-Nas1221 Professional/Industrial Association Standard
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.207 Inches Minimum And 0.257 Inches Maximum
- Thread Series Designator [THSD]
- Unjc
- Thread Quantity Per Inch [CMLP]
- 40
