5305-01-162-7885
Assembled Washer Screw
5305011627885 011627885 25534835 11508017 11508164 11504611 5305PL0873945
A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s). View more Assembled Washer Screw
May 2023
16
Marketplace 5305-01-162-7885
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-162-7885 4+ Documents (More...)
RQST NE Updated Every Day 11508017 RQST NE Updated Every Day 5305-01-162-7885 RQST NE Updated Every
Day 5305-01-162-7885 RQST Updated Every Day 5305-01-162-7885 RQST NE Related Documents 5305-01-162-7885
Assembled Washer Screw 5305011627885 Documents 5305-01-162-7885 2+ Documents ( More... ) https/
Navy (DN)NZDiscontinued-Use 5305-01-162-7885Defense Logistics Agency (DS)IZDiscontinued-Use 5305-01-162-7885
Assembled Washer Screw 5305011627885 Agency (DS)IZDiscontinued-Use 5305-01-162-7885 https//www.nsnlookup.com
Navy (DN)NZDiscontinued-Use 5305-01-162-7885Defense Logistics Agency (DS)IZDiscontinued-Use 5305-01-162-7885
Assembled Washer Screw 5305011627885 ExpressionDepartment of the Navy (DN)NNDisposalDefense Logistics
Restrictions 5305-01-162-7885
5305-01-162-7885 is a Assembled Washer Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5305-01-162-7885
- Lithuania (WI01)
- Effective Date:
- 1 Jul 2000
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Mar 2005
Approved Sources 5305-01-162-7885
- Part Number
- Manufacturer
- Status
- 25534835
- Manufacturer
- 7X677 - General Motors Llc (Active)
- Primary Buy
- Primary Buy
- 11508017
- 7X677 - General Motors Llc (Active)
- Secondary Buy
- Secondary Buy
- 11508017
- 11862 - General Motors Corp Chevrolet Motor (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 11508164
- 11862 - General Motors Corp Chevrolet Motor (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 11504611
- 11862 - General Motors Corp Chevrolet Motor (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 25534835
- 11862 - General Motors Corp Chevrolet Motor (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305PL0873945
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 5305-01-162-7885
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 19.20 Millimeters Minimum And 20.00 Millimeters Maximum
- Hardness Rating [CQFM]
- 40.0 Rockwell C Minimum Primary Washer And 48.0 Rockwell C Maximum Primary Washer
- Head Height [AASU]
- 5.28 Millimeters Minimum And 5.84 Millimeters Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae Assn Std All Material Responses Primary Washer
- Material [MATT]
- Steel Primary Washer
- Nonmachine Thread Style [CRGF]
- Dog Type (Type B Or C)
- Nonmachine Nominal Thread Diameter [CTYF]
- 8.0 Millimeters
- Internal Drive Style [ABQZ]
- W/O Internal Drive
- Material Document And Classification [MDCL]
- Gm 500-M 9.8 Fscm 11862 Mfr Ref Single Material Response Fastener
- Primary Washer Material Thickness [CTJJ]
- 2.30 Millimeters Minimum And 2.63 Millimeters Maximum
- Primary Washer Outside Diameter [CSPG]
- 23.48 Millimeters Minimum And 24.00 Millimeters Maximum

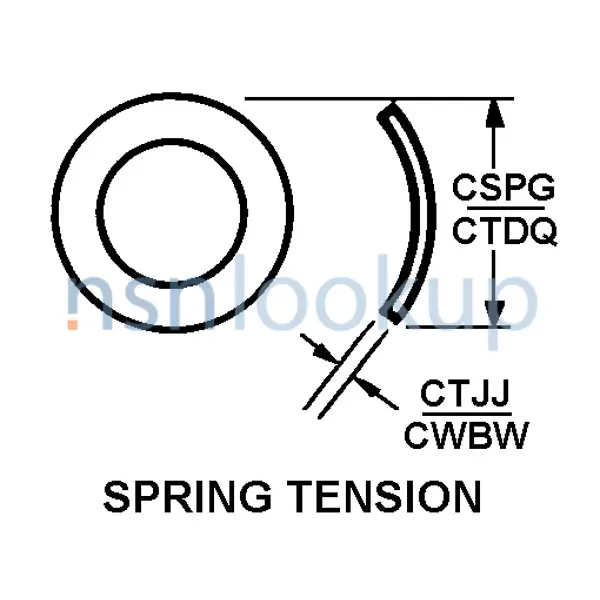

- Primary Washer Style [CTHW]
- Spring Tension
- Washer Quantity [AAVW]
- 1
- Width Between Flats [AATB]
- 12.73 Millimeters Minimum And 13.00 Millimeters Maximum
- Surface Treatment Document And Classification [STDC]
- Gm 6174-M,Fscm 11862 Mfr Ref Single Treatment Response Overall
- Surface Treatment [SFTT]
- Phosphate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 16.12 Millimeters Maximum
- Thread Pitch In Millimeters [CQQR]
- 1.25
