5305-01-146-9621

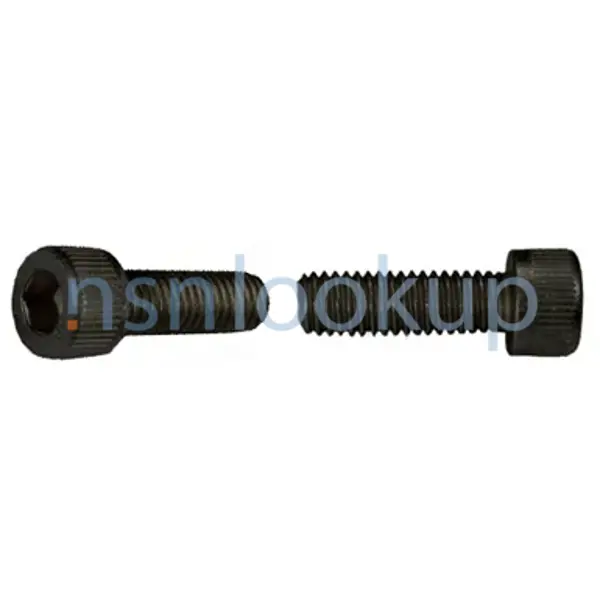

Socket Head Cap Screw
5305011469621 011469621 NAS1351-08-12P
An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw
November 2023
9
Marketplace 5305-01-146-9621
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-146-9621 2+ Documents (More...)
NAS1351-08-12P SCREW,CAP,SOCKET HEAD 12 HD NS Request Quotation Updated Every Day 5305-01-146-9621 RQST
Socket Head Cap Screw 5305011469621 NAS1351-08-12P An externally threaded fastener whose threaded portion
Day 5306-01-586-4556 RQST NE Restrictions 5306 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-146-9621
Socket Head Cap Screw 5305011469621 Documents 5305-01-146-9621 1+ Documents ( More... ) https//
Restrictions 5305-01-146-9621
5305-01-146-9621 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-146-9621
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-146-9621
- US Navy (N9BZ)
- Effective Date:
- 1 Oct 2009
- Supplementary Collaborators:
- KE
Approved Sources 5305-01-146-9621
- Part Number
- Manufacturer
- Status
- NAS1351-08-12P
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-146-9621
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.720 Inches Minimum And 0.750 Inches Maximum
- Hardness Rating [CQFM]
- 38.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.262 Inches Minimum And 0.270 Inches Maximum
- Head Height [AASU]
- 0.159 Inches Minimum And 0.164 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 155000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.164 Inches
- Internal Drive Style [ABQZ]
- Hexagon
- Width Across Flats [ASDB]
- 0.141 Inches Minimum And 0.143 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas1351 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2 Class 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.664 Inches Minimum And 0.750 Inches Maximum
- Thread Series Designator [THSD]
- Unrf
- Thread Quantity Per Inch [CMLP]
- 36
Weapon Systems (WSDC) 5305-01-146-9621
DLA Procurement Analysis 5305-01-146-9621
- Last Stock Position:
- 600 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-01-146-9621
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-01-146-9621
Freight Information 5305-01-146-9621
5305-01-146-9621 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-01-146-9621 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-01-146-9621 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-146-9621 is not classified as a special type of cargo when transported by water. 5305-01-146-9621 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-01-146-9621
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
