5305-01-087-7005

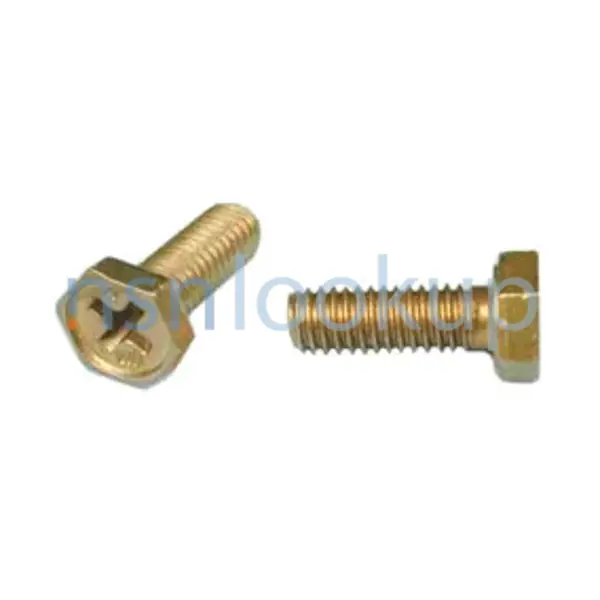

Machine Screw
5305010877005 010877005 NAS1096-1-4
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
June 2023
9
Marketplace 5305-01-087-7005
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-087-7005 5+ Documents (More...)
NAS1096-1-4 SCREW 950 EA NS Request Quotation NAS1096-1-4 SCREW 119 EA NS Request Quotation Subscribe
NAS1096-1-4 SCREW,MACHINE 2284 EA NS Request Quotation Updated Every Day 5305-01-087-7005 RQST NE Updated
is a Machine Screw Similar Supply Items to 9999-99-001-7288 5305-01-177-9701 5305-01-131-5844 5305-01-087-7005
is a Machine Screw Similar Supply Items to 9999-99-001-7232 5305-01-177-9701 5305-01-131-5844 5305-01-087-7005
is a Machine Screw Similar Supply Items to 9999-99-144-2922 5305-01-177-9701 5305-01-131-5844 5305-01-087-7005
is a Machine Screw Similar Supply Items to 9999-99-401-3802 5305-01-177-9701 5305-01-131-5844 5305-01-087-7005
Restrictions 5305-01-087-7005
5305-01-087-7005 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-01-087-7005
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-087-7005
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GT
- Spain (YB01)
- Effective Date:
- 1 Nov 2011
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2007
Approved Sources 5305-01-087-7005
- Part Number
- Manufacturer
- Status
- NAS1096-1-4
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-087-7005
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- Fastener Length [AASB]
- 0.234 Inches Minimum And 0.281 Inches Maximum
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum And 32.0 Rockwell C Maximum
- Head Height [AASU]
- 0.080 Inches Minimum And 0.095 Inches Maximum
- Head Style [AASK]
- Hexagon
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.138 Inches
- Internal Drive Style [ABQZ]
- Cross Recess Type 1
- Screw Material Document And Classification [CYAW]
- Ams 6300 Assn Std 1St Material Response Or Mil-S-6050 Mil Spec 2Nd Material Response
- Screw Material [CYAU]
- Steel Comp 4037 Or Steel Comp 8630
- Screw Surface Treatment Document And Classification [CYBE]
- Qq-P-416 Ty 2 Cl 2 Fed Spec Single Treatment Response
- Screw Surface Treatment [CYBA]
- Cadmium And Chromate
- Width Between Flats [AATB]
- 0.241 Inches Minimum And 0.250 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas1096 Professional/Industrial Association Standard
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.170 Inches Minimum And 0.249 Inches Maximum
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 32
