5305-01-082-2048
Close Tolerance Screw
5305010822048 010822048 418099-4 NAS1153C3 NAS1153E3 5305PL0726711 10114990

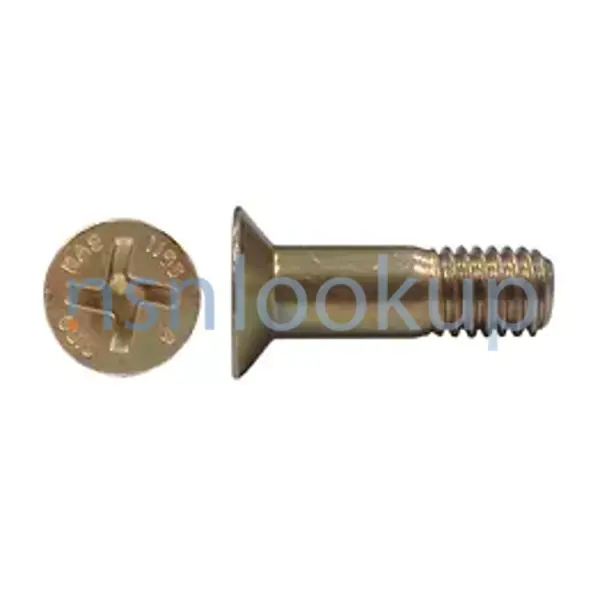

A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. View more Close Tolerance Screw
August 2023
39
Marketplace 5305-01-082-2048
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-082-2048 5+ Documents (More...)
NAS1153C3 SCREW,CLOSE TOLERANCE 32 PG NS Request Quotation NAS1153E3 SCREW,CLOSE TOLERANCE 2768 PG NS
NAS1153C3 SCREW,CLOSE TOLERANCE 9 PG NS Request Quotation Updated Every Day 5305-01-082-2048 RQST NE
NAS1153E3 SCREW,CLOSE TOLERANCE 250 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1153E3 SCREW,CLOSE TOLERANCE 175 EA NS Request Quotation Subscribe to View Vendor Details...
Close Tolerance Screw 5305010822048 010822048 $1 a day Upgrade your Account Upgrade 5305-01-082
-2048Close Tolerance Screw5305010822048 010822048 418099 www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01
Restrictions 5305-01-082-2048
5305-01-082-2048 is a Close Tolerance Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-01-082-2048
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-082-2048
- US Coast Guard (C920)
- Effective Date:
- 1 Oct 2009
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Finland (WF01)
- Effective Date:
- 1 Apr 2009
- Poland (WP01)
- Effective Date:
- 1 Jul 2011
- Czech Republic (WZ01)
- Effective Date:
- 1 Feb 2010
- Brazil (YA01)
- Effective Date:
- 1 Feb 2007
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Singapore (YJ01)
- Effective Date:
- 1 Jul 2000
- Malaysia (YW01)
- Effective Date:
- 1 Aug 2000
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 30 Jun 2004
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2008
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1998
- Italy (ZR01)
- Effective Date:
- 1 May 2012
- Denmark (ZS01)
- Effective Date:
- 1 Apr 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Oct 2008
Approved Sources 5305-01-082-2048
- Part Number
- Manufacturer
- Status
- NAS1153E3
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 5305PL0726711
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 10114990
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 418099-4
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- NAS1153C3
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-01-082-2048
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 0.449 Inches Minimum And 0.479 Inches Maximum
- Grip Diameter [AAUR]
- 0.1885 Inches Minimum And 0.1895 Inches Maximum
- Grip Length [ANEE]
- 0.178 Inches Minimum And 0.198 Inches Maximum
- Head Diameter [AASL]
- 0.328 Inches Minimum And 0.385 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Material [MATT]
- Iron Alloy 660 Overall
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Offset Cruciform (Torque Set)
- Material Document And Classification [MDCL]
- Ams 5737 Assn Std Single Material Response Overall
- Specification/Standard Data [ZZZK]
- 80205-Nas1153 Professional/Industrial Association Standard
- Surface Finish [CSYM]
- 32.0 Microinches Grip
- Surface Finish [CSYM]
- 32.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.251 Inches Minimum And 0.301 Inches Maximum
- Thread Series Designator [THSD]
- Unjf
- Thread Quantity Per Inch [CMLP]
- 32
