5305-01-079-1369
Close Tolerance Screw
5305010791369 010791369 NAS1153E8

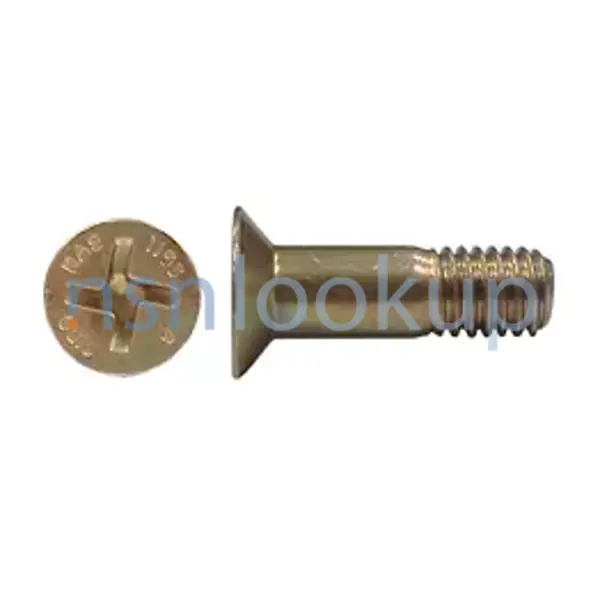

A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. View more Close Tolerance Screw
November 2023
19
Marketplace 5305-01-079-1369
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-079-1369 5+ Documents (More...)
NAS1153E8 SCREW,CLOSE TOLERANCE 140 PG NS Request Quotation Subscribe to View Vendor Details... 5305-
NAS1153E8 SCREW,CLOSE TOLERANCE 880 PG NS Request Quotation Updated Every Day 5305-01-079-1369 RQST NE
NAS1153E8 SCREW,CLOSE TOLERANCE 125 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1153E8 SCREW,CLOSE TOLERANCE 99 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5305-01-079-1369
5305-01-079-1369 is a Close Tolerance Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-01-079-1369
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-079-1369
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Coast Guard (C920)
- Effective Date:
- 1 Sep 2009
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Brazil (YA01)
- Effective Date:
- 1 Jun 2015
- Spain (YB01)
- Effective Date:
- 1 Nov 2005
- Australia (ZA01)
- Effective Date:
- 1 Mar 2012
- United Kingdom (ZK01)
- Effective Date:
- 1 May 2000
- Italy (ZR01)
- Effective Date:
- 1 Dec 2014
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5305-01-079-1369
- Part Number
- Manufacturer
- Status
- NAS1153E8
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-01-079-1369
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 0.761 Inches Minimum And 0.791 Inches Maximum
- Grip Diameter [AAUR]
- 0.1885 Inches Minimum And 0.1895 Inches Maximum
- Grip Length [ANEE]
- 0.490 Inches Minimum And 0.510 Inches Maximum
- Head Diameter [AASL]
- 0.328 Inches Minimum And 0.385 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Material [MATT]
- Iron Alloy 660 Overall
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Offset Cruciform (Torque Set)
- Material Document And Classification [MDCL]
- Ams 5737 Assn Std Single Material Response Overall
- Specification/Standard Data [ZZZK]
- 80205-Nas1153 Professional/Industrial Association Standard
- Surface Finish [CSYM]
- 32.0 Microinches Grip
- Surface Finish [CSYM]
- 32.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.251 Inches Minimum And 0.301 Inches Maximum
- Thread Series Designator [THSD]
- Unjf
- Thread Quantity Per Inch [CMLP]
- 32
Weapon Systems (WSDC) 5305-01-079-1369
DLA Procurement Analysis 5305-01-079-1369
