5305-01-026-9518
Hexagon Head Cap Screw
5305010269518 010269518 2HA732 OS1571 0S1571
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
Managed by United States
NSN Created on 3 Sep 1976
Data Last Changed
July 2025
July 2025
NATO Update Count
36
36
NATO Data Quality
Marketplace 5305-01-026-9518
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-026-9518 1+ Documents (More...)
2HA732 OS1571 0S1571 An externally threaded fastener designed for insertion into holes in assembled

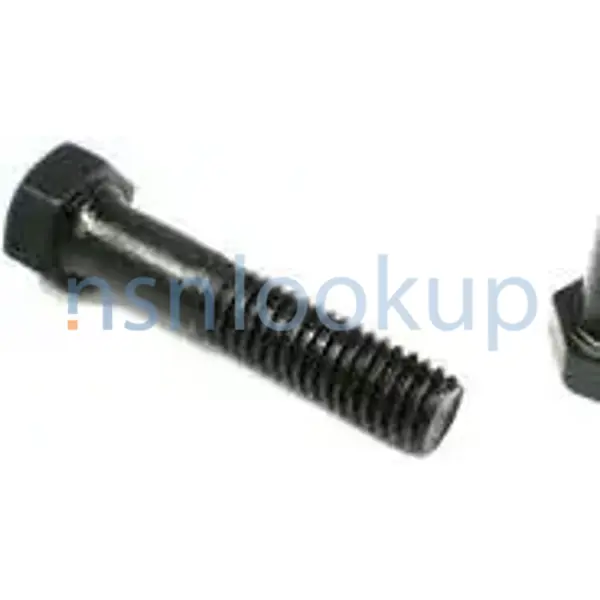

Photo 1/2 NSN 5305-01-026-9518 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5305-01-026-9518 RQST Updated Every Day 5305-01-026-9518 RQST NE Related Documents
Photo 1/2 NSN 5305-01-026-9518 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5305-01-026-9518 RQST Updated Every Day 5305-01-026-9518 RQST NE Related Documents
Restrictions 5305-01-026-9518
5305-01-026-9518 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-026-9518
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-026-9518
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Aug 1995
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Oct 2009
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Columbia (YC01)
- Effective Date:
- 1 Jun 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Feb 1998
- Canada (ZC01)
- Effective Date:
- 1 Jan 1996
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1999
- United Kingdom (ZK01)
- Effective Date:
- 10 Dec 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Mar 2007
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5305-01-026-9518
- Part Number
- Manufacturer
- Status
- 2HA732
- Manufacturer
- 75Q65 - Oshkosh Defense Llc (Active)
- Primary Buy
- Primary Buy
- 0S1571
- 11083 - Caterpillar Inc (Active)
- Original Design
- Original Design
- OS1571
- K0190 - Caterpillar (Uk) Ltd (Active)
- Secondary Buy
- Secondary Buy
- 2HA732
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5305-01-026-9518
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.750 Inches Nominal
- Head Height [AASU]
- 1.054 Inches Minimum And 1.134 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae Grade 5 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Width Between Flats [AATB]
- 2.538 Inches Minimum And 2.625 Inches Maximum
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.750 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Series Designator [THSD]
- Unc
