5305-01-022-9613
Socket Head Cap Screw
5305010229613 010229613 NAS1351-10LN40P TN1351-10LN40P
An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw
May 2023
15
Marketplace 5305-01-022-9613
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-022-9613 5+ Documents (More...)

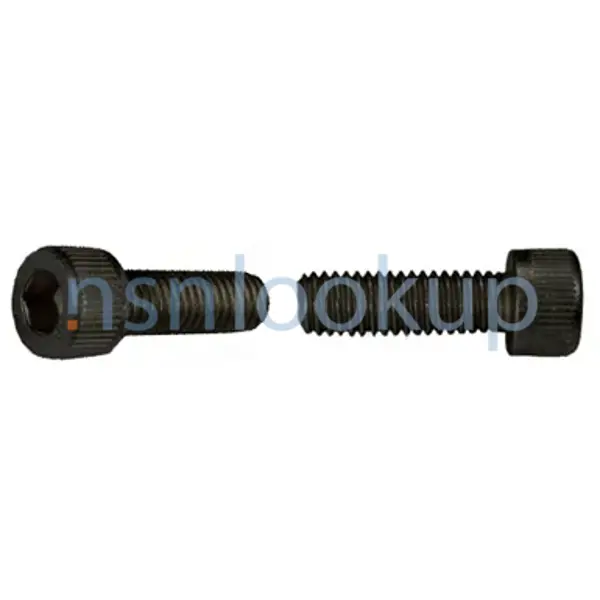

Photo 1/3 NSN 5305-01-022-9613 (Identification) 2/3 NSN 5305-01-022-9613 (Identification) 3/3 -
( More... ) https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-022-9613 Socket Head Cap Screw 5305010229613
Restrictions 5305-01-022-9613
5305-01-022-9613 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-01-022-9613
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-022-9613
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BD
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1999
Approved Sources 5305-01-022-9613
- Part Number
- Manufacturer
- Status
- NAS1351-10LN40P
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- TN1351-10LN40P
- 26304 - Torkon Fastener Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5305-01-022-9613
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 2.440 Inches Minimum And 2.500 Inches Maximum
- Hardness Rating [CQFM]
- 38.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.921 Inches Minimum And 0.937 Inches Maximum
- Head Height [AASU]
- 0.616 Inches Minimum And 0.625 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Material [MATT]
- Plastic Polyamide Locking Feature
- Material [MATT]
- Steel Fastener
- Minimum Tensile Strength [CQBC]
- 170000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.625 Inches
- Internal Drive Style [ABQZ]
- Hexagon
- Locking Feature [AAUM]
- Pellet Threads
- Width Across Flats [ASDB]
- 0.500 Inches Minimum And 0.505 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas1351 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2 Class 2 Fed Spec Single Treatment Response Fastener
- Surface Treatment [SFTT]
- Cadmium Fastener And Chromate Fastener
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.750 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 18
- Thread Series Designator [THSD]
- Unrf
