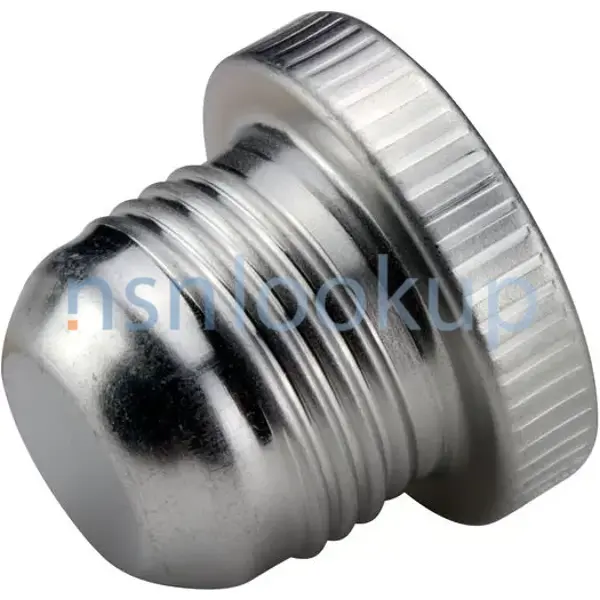

5305-01-018-8910
Externally Relieved Body Screw
5305010188910 010188910 ASP-GN-8 GS10414-7
An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING. View more Externally Relieved Body Screw
November 2023
11
Marketplace 5305-01-018-8910
Request a Quotation from participating marketplace vendors
Related Documents 5305-01-018-8910 1+ Documents (More...)
(Identification) 1/3 NSN 5305-01-018-8910 (Identification) 2/3 NSN 5305-01-018-8910 (Identification
Minutes 5305-01-018-8910 BUY NE FedMall Updated Every Day 5305-01-018-8910 RQST NE Updated Every Day
Restrictions 5305-01-018-8910
5305-01-018-8910 is a Externally Relieved Body Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-01-018-8910
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-01-018-8910
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 5305-01-018-8910
- Part Number
- Manufacturer
- Status
- GS10414-7
- Manufacturer
- 73030 - Hamilton Sundstrand Corporation (Active)
- Primary Buy
- Primary Buy
- ASP-GN-8
- 99017 - Caplugs Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5305-01-018-8910
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Largest Bearing Surface Of Head To End Of First Diameter [AAWH]
- 0.499 Inches Minimum And 0.549 Inches Maximum
- Externally Relieved Body Diameter Quantity [CSNG]
- 1
- Fastener Length [AASB]
- 0.700 Inches Minimum And 0.750 Inches Maximum
- First Diameter From Head [AAWC]
- 0.098 Inches Minimum And 0.103 Inches Maximum
- Hardness Rating [CQFM]
- 38.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.218 Inches Minimum And 0.226 Inches Maximum
- Head Height [AASU]
- 0.134 Inches Minimum And 0.138 Inches Maximum
- Head Style [AASK]
- Undercut Universal
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 155000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.138 Inches
- Internal Drive Style [ABQZ]
- Hexagon
- Point Style [ABQJ]
- Cone
- Width Across Flats [ASDB]
- 0.1094 Inches Minimum And 0.1111 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2 Class 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.201 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unc
Weapon Systems (WSDC) 5305-01-018-8910
DLA Procurement Analysis 5305-01-018-8910
- Last Stock Position:
- 146 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-01-018-8910
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- May 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 5340
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 5340
- X
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5305-01-018-8910
Freight Information 5305-01-018-8910
5305-01-018-8910 has freight characteristics managed by the Defense Intelligence Agency (DIA).It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 5305-01-018-8910 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5305-01-018-8910 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-01-018-8910 is not classified as a special type of cargo when transported by water. 5305-01-018-8910 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-01-018-8910
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any bag or sack used by the vendor
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- 100
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-01-018-8910 2 Records
Contracting Technical Data File (CTDF) 5305-01-018-8910 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
