5305-00-993-2461

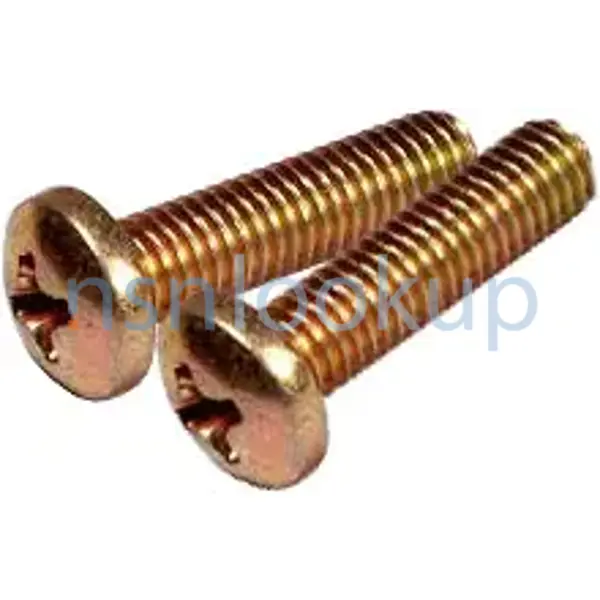

Machine Screw

5305009932461 009932461 FFS92 100-1S8-16 FFS92TYPE1STYLE1S 23-01191-071 214419 MS35207-281 MS35228-81 889216-47 AN520-416-12 5305PL0851735

An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
January 2024

NATO Update Count
50

NATO Data Quality

5305-00-993-2461 SCREW,MACHINE 5305009932461 009932461 1/3 — 5305-00-993-2461 Photo 1/3

AASK Style A23 for 5305-00-993-2461 2/3 — NSN 5305-00-993-2461 (Identification) 2/3

ABQZ Style B1 for 5305-00-993-2461 3/3 — NSN 5305-00-993-2461 (Identification) 3/3

Marketplace 5305-00-993-2461

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS35207-281 SCREW,MACHINE 93 HD NS

Subscribe to View Vendor Details...

FFS92 SCREW,MACHINE 10 HD NS

FFS92. SCREW,MACHINE 150 HD NS

FFS-92 SCREW,MACHINE 8 HD NS

Subscribe to View Vendor Details...

MS35207-281 SCREW,MACHINE 300 HD NS

Subscribe to View Vendor Details...

MS35207-281 SCREW,MACHINE 30600 HD NS

AN520-416-12 SCREW,MACHINE 2049 HD NS

Subscribe to View Vendor Details...

MS35207-281 SCREW,MACHINE 62 HD NS

Subscribe to View Vendor Details...

FFS92TYPE1STYLE1S SCREW,MACHINE 300 HD NS

FFS92 SCREW,MACHINE 100 HD NS

FF-S-92 SCREW,MACHINE 118 HD NS

Subscribe to View Vendor Details...

MS35207-281 SCREW,MACHINE 18 HD NS

Subscribe to View Vendor Details...

MS-35207-281 SCREW,MACHINE 100 HD NS

FF-S-92 SCREW,MACHINE 204 HD NS

Subscribe to View Vendor Details...

MS35207-281 SCREW,MACHINE 3108 HD NS

FFS92 SCREW,MACHINE 2113 HD NS

Subscribe to View Vendor Details...

MS35207-281 SCREW 20 HD NS

MS35207-281 SCREW 5 HD NS

Subscribe to View Vendor Details...

SCREWMACHINEM151 SCREW,MACHINE RQST NS

Subscribe to View Vendor Details...

FFS92 SCREW,MACHINE RQST NS

Subscribe to View Vendor Details...

MS35207-281 SCREW,MACHINE 1 HD NS

FFS92 SCREW,MACHINE 47 HD NS

Subscribe to View Vendor Details...

5305-00-993-2461 SCREW,PAN HEAD 128 HD NS

Subscribe to View Vendor Details...

FFS92 SCREW,MACHINE 1 HD NS

Subscribe to View Vendor Details...

FFS92 SCREW,MACHINE 296 HD NS

Subscribe to View Vendor Details...

MS35207-281 SCREW,MACHINE 50 HD NS

FF-S-92 SCREW,MACHINE 400 HD NS

Subscribe to View Vendor Details...

FF-S-92 SCREW,MACHINE 3512 HD NS

FFS92 SCREW,MACHINE 230 HD NS

Subscribe to View Vendor Details...

1549159 SCREW,MACHINE 128 HD NS

Subscribe to View Vendor Details...

FFS92 SCREW,MACHINE 1 HD NS

FF-S-92 SCREW,MACHINE 41 HD NS

Updated Every Day

214419 RQST NE

Updated Every Day

5305-00-993-2461 RQST NE

Updated Every Day

5305-00-993-2461 RQST

Updated Every Day

5305-00-993-2461 RQST NE

Restrictions 5305-00-993-2461

5305-00-993-2461 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5305-00-993-2461

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-993-2461

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G930)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC B

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJVHXHSHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Nov 2006

Czech Republic (WZ01)
Effective Date:: 1 Jan 2012

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Mar 1997

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5305-00-993-2461

Part Number
Manufacturer
Status
MS35207-281: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
FFS92: 81348 - Federal Specifications Promulgated (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC 4
100-1S8-16: 80063 - Us Army Communications & Electronics (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
FFS92TYPE1STYLE1S: 80244 - General Services Administration (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
23-01191-071: 00724 - Raytheon Company (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
214419: 24617 - General Motors Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC X
MS35228-81: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5305009932461: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
889216-47: 02106 - Mrl Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
AN520-416-12: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
5305PL0851735: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5305-00-993-2461

Characteristic
Specifications
FIIG: A500D0
Fastener Length [AASB]: 0.719 Inches Minimum And 0.750 Inches Maximum
Head Height [AASU]: 0.162 Inches Minimum And 0.175 Inches Maximum
Head Diameter [AASL]: 0.473 Inches Minimum And 0.492 Inches Maximum
Head Style [AASK]: Pan
Minimum Tensile Strength [CQBC]: 60000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]: 0.250 Inches
Nondefinitive Spec/Std Data [ZZZT]: 3 Type And 9C Style
Internal Drive Style [ABQZ]: Cross Recess Type 1
Screw Material [CYAU]: Steel Comp 1010 Or Steel Comp 1011 Or Steel Comp 1013
Screw Surface Treatment Document And Classification [CYBE]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response
Screw Surface Treatment [CYBA]: Cadmium And Chromate
Thread Class [AAJD]: 2A
Thread Direction [AAJF]: Right-Hand
Thread Length [AASA]: 0.648 Inches Minimum And 0.750 Inches Maximum
Thread Series Designator [THSD]: Unf
Thread Quantity Per Inch [CMLP]: 28

Weapon Systems (WSDC) 5305-00-993-2461

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5305-00-993-2461

Last Stock Position:: 29500 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5305-00-993-2461

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Nov 2019: Department of the Army (DA); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-019-0921
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-018-8079
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-043-6716
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-150-9944
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-151-0596
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-145-6896
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-290-2707
US Marine Corps (DM): M; 4; Reversal Of Phrase Code A 5305-00-021-4419

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

CC: Other Aircraft Categories
Multi-Application Aviation Spares

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5305-00-993-2461

5305-12-304-4978 5305-99-128-8063 5305-12-163-9343 5305-12-317-3830 5305-99-923-0427 5305-17-029-4829 5305-66-098-4392 5305-99-135-7232 5305-99-716-4897 5305-99-544-4397 5305-66-037-1467 5305-66-015-5147 5305-99-104-3201 5305-66-153-8134 5305-66-086-8019 5305-21-897-8212 5305-99-577-2095 5305-13-109-5678

Freight Information 5305-00-993-2461

5305-00-993-2461 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-993-2461 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-993-2461 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-993-2461 is not classified as a special type of cargo when transported by water. 5305-00-993-2461 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5305-00-993-2461

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5305-00-993-2461 2 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A718V0852: 17 Jan 2018; Subscribe; 316; Subscribe; Subscribe
SPE5EY18F2573: 05 Dec 2017; Subscribe; 171; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5305-00-993-2461 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5305-00-993-2461

Related Documents 5305-00-993-2461 5+ Documents (More...)

Restrictions 5305-00-993-2461

Import and Export 5305-00-993-2461

End Users 5305-00-993-2461

Approved Sources 5305-00-993-2461

Datasheet 5305-00-993-2461

Weapon Systems (WSDC) 5305-00-993-2461

DLA Procurement Analysis 5305-00-993-2461

Management Data 5305-00-993-2461

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5305-00-993-2461

Freight Information 5305-00-993-2461

Packaging Data 5305-00-993-2461

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5305-00-993-2461 2 Records

Contracting Technical Data File (CTDF) 5305-00-993-2461 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
