5305-00-993-1848

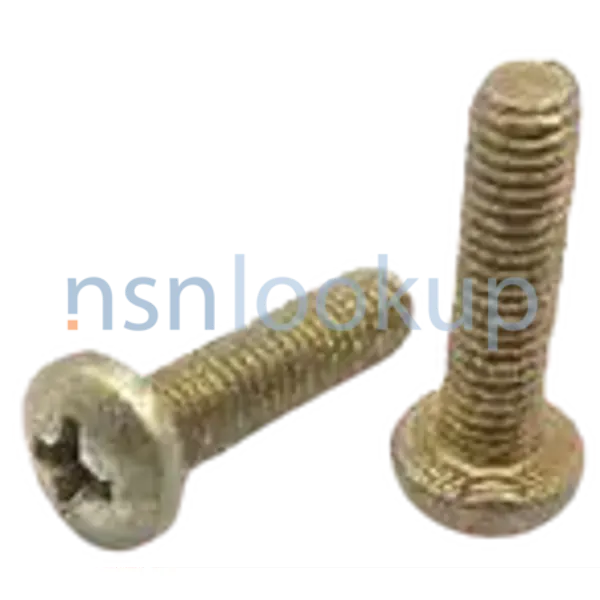

Machine Screw

5305009931848 009931848 436752 402343 5338-306 MS35207-265 G0005404 A207D24 DSR1523-8 1055-845 31145 B4525-303-4 AN526-1032R12 859001-00 MS35207-57 7-099-000154 6543 CIPRD-MS35207-265 19088 2537 MS24584-57 A1BMW6024G AN526C-1032R12 19088ADX 71137-265 BM12297-05 935.63.12.067

An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
102

NATO Data Quality

AASK Style A23 for 5305-00-993-1848 1/2 — NSN 5305-00-993-1848 (Identification) 1/2

ABQZ Style B1 for 5305-00-993-1848 2/2 — NSN 5305-00-993-1848 (Identification) 2/2

Marketplace 5305-00-993-1848

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

5305-00-993-1848 SCREW,MACHINE 600 HD NS

MS35207-265 SCREW,MACHINE 718 HD NS

Subscribe to View Vendor Details...

MS35207-265 SCREW,MACHINE 48 HD NS

Subscribe to View Vendor Details...

AN526C1032R12 SCREW,MACHINE 4702 HD NS

AN526-1032R12 SCREW,MACHINE 2953 HD NS

MS35207-265 SCREW,MACHINE 1997 HD NS

Subscribe to View Vendor Details...

MS35207-265 SCREW 128 HD NS

MS35207-265 SCREW 12 HD NS

MS35207-265 SCREW 20 HD NS

Subscribe to View Vendor Details...

859001-00M151DEC7834P SCREW,MACHINE RQST NS

Subscribe to View Vendor Details...

MS35207-265 SCREW,MACHINE 40 HD NS

Subscribe to View Vendor Details...

MS35207-265 SCREW,MACHINE 5049 HD NS

Subscribe to View Vendor Details...

5305-00-993-1848 SCREW, MACHINE 5 HD NS

Updated Every Day

436752 RQST NE

Updated Every Day

5305-00-993-1848 RQST NE

Updated Every Day

5305-00-993-1848 RQST

Updated Every Day

5305-00-993-1848 RQST NE

Restrictions 5305-00-993-1848

5305-00-993-1848 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5305-00-993-1848

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-993-1848

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC T IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004
Supplementary Receivers:: XH; AMC 1 AMSC T

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC T IMC Z IMCACTY SX

NASA (G070)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G170)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G180)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G190)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G940)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NIZD
Supplementary Collaborators:: GTKEJVJBHSHD; AMC 1 AMSC T IMC Z IMCACTY GH

MOE Rule:: S911
Effective Date:: 1 Apr 2006
Former MOE Rule:: S006; AMC 1 AMSC T IMC Z IMCACTY XN

Bosnia and Herzegovina (VB01)
Effective Date:: 1 Oct 2013

Sweden (VK01)
Effective Date:: 1 May 2016

Austria (WB01)
Effective Date:: 1 Feb 2005

Finland (WF01)
Effective Date:: 1 Feb 2008

Lithuania (WI01)
Effective Date:: 1 Jul 2000

Slovenia (WL01)
Effective Date:: 1 Apr 2006

Poland (WP01)
Effective Date:: 1 Feb 2005

Bulgaria (WU01)
Effective Date:: 1 Oct 2002

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Apr 1991

Argentina (YF01)
Effective Date:: 1 Feb 2015

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Jan 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Saudi Arabia (YS01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Thailand (YY01)
Effective Date:: 1 Feb 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

South Africa (ZD01)
Effective Date:: 1 Aug 2008

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 5305-00-993-1848

Part Number
Manufacturer
Status
MS35207-265: 80205 - National Aerospace Standards (Active); Primary Buy; RNCC 3 RNVC 2 MEDALS DAC E
MS35207-265: 77445 - Rtx Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35207-265: 96906 - Military Standards (Active); Secondary Buy; RNCC 5 RNVC 2 MEDALS DAC 4
G0005404: K0967 - Mbda Uk Ltd (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
MS35207-265: 07ZN5 - North-East Fasteners Corp. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35207-265: 0PXV4 - The Boeing Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35207-265: 1GP79 - Pilgrim Screw Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35207-265: 33PQ1 - Afi Industries, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35207-265: 52661 - Rtx Corporation (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35207-265: 63020 - Crescent Manufacturing Operating (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35207-265: 76301 - The Boeing Company (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
MS35207-265: 13499 - Rockwell Collins, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
B4525-303-4: 60532 - Trane U.S. Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
AN526-1032R12: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
859001-00: 32345 - Defense Reduction Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
MS35207-57: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC E
7-099-000154: 12361 - Grove U.S. Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 5
6543: 72653 - Gc/Waldom Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC 5
CIPRD-MS35207-265: 14153 - Defense Logistics Agency (Active); Canceled/Obsolete; RNCC 5 RNVC 9 MEDALS DAC A
19088: 73734 - Federal Screw Products Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
2537: 70655 - Auto Vehicle Parts Co (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS24584-57: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
A1BMW6024G: 70318 - Allmetal Screw Products Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
AN526C-1032R12: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
7-099-000154: 0MKW7 - Minnpar, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
19088ADX: 1VN02 - Airdale Express Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
71137-265: 95097 - Little Giant Crane And Shovel Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5305009931848: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
BM12297-05: 19422 - Demarkus Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
935.63.12.067: S4080 - Pilatus Aircraft Ltd (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
10082685: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305PL0631723: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
436752: 24617 - General Motors Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
402343: 5X050 - Crysteel Manufacturing, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
5338-306: 61796 - Cemen Tech, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
A207D24: K7766 - Bsi Standards Limited (Active); Transferred; RNCC E RNVC 8 DAC 5
DSR1523-8: K1037 - Meggitt Aerospace Limited (Active); Transferred; RNCC E RNVC 8 DAC 5
1055-845: 31361 - Woodward, Inc. (Active); Transferred; RNCC E RNVC 8 DAC 5
31145: 05573 - Barnes Group Inc. (Active); Transferred; RNCC E RNVC 8 DAC 2

Datasheet 5305-00-993-1848

Characteristic
Specifications
FIIG: A500D0
End Item Identification [AGAV]: Acf; A4n; Abm; Auf; Aga; Atf; 95A; Byn; Aun; Ahn; Rg-33 Mrap
Fastener Length [AASB]: 0.719 Inches Minimum And 0.750 Inches Maximum
Head Height [AASU]: 0.122 Inches Minimum And 0.133 Inches Maximum
Head Diameter [AASL]: 0.357 Inches Minimum And 0.373 Inches Maximum
Head Style [AASK]: Pan
Minimum Tensile Strength [CQBC]: 55000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]: 0.190 Inches
Internal Drive Style [ABQZ]: Cross Recess Type 1
Screw Material Document And Classification [CYAW]: 66 Fed Std All Material Responses
Screw Material [CYAU]: Steel Comp 1010 Or Steel Comp 1011 Or Steel Comp 1013
Screw Surface Treatment Document And Classification [CYBE]: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response
Screw Surface Treatment [CYBA]: Cadmium And Chromate
Thread Class [AAJD]: 2A
Thread Direction [AAJF]: Right-Hand
Thread Length [AASA]: 0.657 Inches Minimum And 0.750 Inches Maximum
Thread Series Designator [THSD]: Unf
Thread Quantity Per Inch [CMLP]: 32

Weapon Systems (WSDC) 5305-00-993-1848

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5305-00-993-1848

Last Stock Position:: 412400 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5305-00-993-1848

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); HD; Subscribe; 1
Oct 2021: US Coast Guard (GP); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2019: Department of the Air Force (DF); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-775-5140
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-01-024-2204

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

BX: Rotary Wing Aircraft
OH-58D Army Helicopter Improvement Program (AHIP)

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

BO: BREATHING OXYGEN SYSTEMS AND COMPONENT

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Special Material Content:

9: Non-Hazardous or Non-Sensitive Item

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 5305-00-993-1848

5305-12-304-4978 5305-99-128-8063 5305-12-163-9343 5305-12-317-3830 5305-99-923-0427 5305-17-029-4829 5305-66-098-4392 5305-99-135-7232 5305-99-716-4897 5305-99-544-4397 5305-66-037-1467 5305-66-015-5147 5305-99-104-3201 5305-66-153-8134 5305-66-086-8019 5305-21-897-8212 5305-99-577-2095 5305-13-109-5678

Freight Information 5305-00-993-1848

5305-00-993-1848 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 5305-00-993-1848 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 5305-00-993-1848 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 5305-00-993-1848 is not classified as a special type of cargo when transported by water. 5305-00-993-1848 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5305-00-993-1848

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; MIL-DTL-117, Type III, Class B, Style 2, Heavy Duty, Waterproof, Transparent Bag; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5305-00-993-1848 36 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPEHA624F0080: 16 Oct 2023; Subscribe; 14; Subscribe; Subscribe
SPEHA623F1731: 21 Aug 2023; Subscribe; 11; Subscribe; Subscribe
SPEHA623F1731: 21 Aug 2023; Subscribe; 11; Subscribe; Subscribe
SPEHA623F1562: 14 Jul 2023; Subscribe; 14; Subscribe; Subscribe
SPEHA623F1562: 14 Jul 2023; Subscribe; 14; Subscribe; Subscribe
SPEHA623F1268: 19 May 2023; Subscribe; 18; Subscribe; Subscribe
SPEHA623F1268P00001: 19 May 2023; Subscribe; 80; Subscribe; Subscribe
SPEHA623F1268P00001: 19 May 2023; Subscribe; 18; Subscribe; Subscribe
SPEHA623F1077: 14 Apr 2023; Subscribe; 76; Subscribe; Subscribe
SPEHA623F1077P00001: 14 Apr 2023; Subscribe; 76; Subscribe; Subscribe
SPEHA623F1077P00001: 14 Apr 2023; Subscribe; 76; Subscribe; Subscribe
SPEHA623F0882: 16 Mar 2023; Subscribe; 158; Subscribe; Subscribe
SPEHA623F0882P00001: 16 Mar 2023; Subscribe; 158; Subscribe; Subscribe
SPEHA623F0882P00001: 16 Mar 2023; Subscribe; 152; Subscribe; Subscribe
SPEHA623F0423: 03 Jan 2023; Subscribe; 18; Subscribe; Subscribe
SPEHA623F0423: 03 Jan 2023; Subscribe; 18; Subscribe; Subscribe
SPEHA622F1032: 27 Jun 2022; Subscribe; 177; Subscribe; Subscribe
SPEHA622F1032: 27 Jun 2022; Subscribe; 177; Subscribe; Subscribe
SPEHA622F0663: 21 Mar 2022; Subscribe; 23; Subscribe; Subscribe
SPEHA622F0663: 21 Mar 2022; Subscribe; 23; Subscribe; Subscribe
SPEHA622F0160: 18 Oct 2021; Subscribe; 215; Subscribe; Subscribe
SPEHA622F0160: 18 Oct 2021; Subscribe; 215; Subscribe; Subscribe
SPEHA621F0913: 27 Sep 2021; Subscribe; 10; Subscribe; Subscribe
SPEHA621F0913: 27 Sep 2021; Subscribe; 10; Subscribe; Subscribe
SPEHA621F0756: 16 Aug 2021; Subscribe; 16; Subscribe; Subscribe
SPEHA621F0756: 16 Aug 2021; Subscribe; 16; Subscribe; Subscribe
SPEHA621F0655: 19 Jul 2021; Subscribe; 518; Subscribe; Subscribe
SPEHA621F0655: 19 Jul 2021; Subscribe; 518; Subscribe; Subscribe
SPEHA621F0261: 28 Jan 2021; Subscribe; 701; Subscribe; Subscribe
SPEHA621F0261: 28 Jan 2021; Subscribe; 701; Subscribe; Subscribe
SPE4A718P3869P00004: 28 Dec 2017; Subscribe; 2320; Subscribe; Subscribe
SPE5EC17P0417: 12 Apr 2017; Subscribe; 1082; Subscribe; Subscribe
SPE5EC17P0079P00002: 26 Oct 2016; Subscribe; 4; Subscribe; Subscribe
SPE5EC16M0792: 16 Aug 2016; Subscribe; 785; Subscribe; Subscribe
SPE5EC15M0890: 30 Sep 2015; Subscribe; 786; Subscribe; Subscribe
SPE5EC15M0371: 19 Feb 2015; Subscribe; 6; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5305-00-993-1848 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: Y
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5305-00-993-1848

Related Documents 5305-00-993-1848 5+ Documents (More...)

Restrictions 5305-00-993-1848

Import and Export 5305-00-993-1848

End Users 5305-00-993-1848

Approved Sources 5305-00-993-1848

Datasheet 5305-00-993-1848

Weapon Systems (WSDC) 5305-00-993-1848

DLA Procurement Analysis 5305-00-993-1848

Management Data 5305-00-993-1848

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 5305-00-993-1848

Freight Information 5305-00-993-1848

Packaging Data 5305-00-993-1848

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5305-00-993-1848 36 Records

Contracting Technical Data File (CTDF) 5305-00-993-1848 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
