5305-00-984-6210

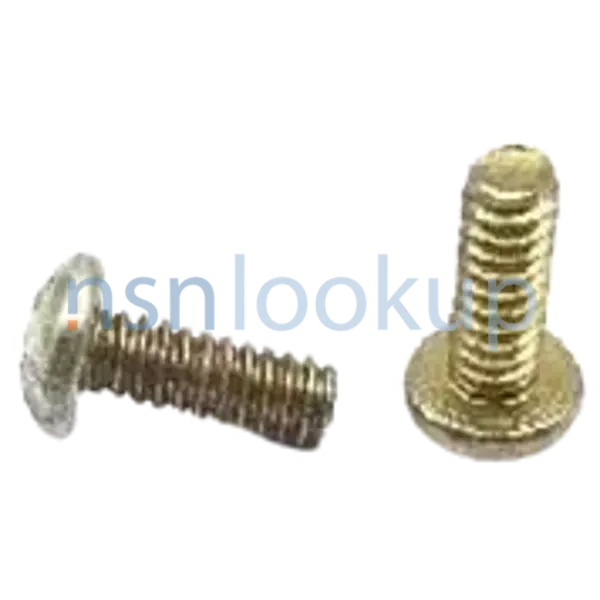

Machine Screw
5305009846210 009846210 ASME B18.6.3 MS35206-263 822-1067 01-0296 ITEM 53 509185 50817 WA-1429-10 95095659 G159927 FA09010487 B18.6.3 472-123 436732 62731 M1290 92154 2019823 416995 XX002-0637 120221 62019 012554-5 AN515-10-8 62500-10 MS35206-55
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
152
152
NATO Data Quality
Marketplace 5305-00-984-6210
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5305-00-984-6210 RQST NE
Updated Every Day 5305-00-984-6210 RQST
Updated Every Day 5305-00-984-6210 RQST NE
Related Documents 5305-00-984-6210 5+ Documents (More...)
MS35206-263 SCREW,MACHINE 245 EA NS Request Quotation AN515-10-8 SCREW,MACHINE 300 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 100 EA NS Request Quotation 62731 SCREW,MACHINE 156 EA NS Request Quotation
AN515-10-8 SCREW,MACHINE 99 EA NS Request Quotation MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 100 EA NS Request Quotation 62731 SCREW,MACHINE 156 EA NS Request Quotation
AN515-10-8 SCREW,MACHINE 99 EA NS Request Quotation MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation
AN515-10-8 SCREW,MACHINE 300 EA NS Request Quotation MS35206-263 SCREW,MACHINE 245 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 100 EA NS Request Quotation 62731 SCREW,MACHINE 156 EA NS Request Quotation
AN515-10-8 SCREW,MACHINE 99 EA NS Request Quotation MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 100 EA NS Request Quotation 62731 SCREW,MACHINE 156 EA NS Request Quotation
AN515-10-8 SCREW,MACHINE 99 EA NS Request Quotation MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 90 EA NS Request Quotation Subscribe to View Vendor Details...
MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation Subscribe to View Vendor Details...
MS35206-263 SCREW,MACHINE 9300 EA NS Request Quotation MS35206-55 SCREW,MACHINE 4400 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation Subscribe to View Vendor Details...
MS35206-263 SCREW,MACHINE 9300 EA NS Request Quotation MS35206-55 SCREW,MACHINE 4400 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 70 EA NS Request Quotation Subscribe to View Vendor Details...
MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation AN515-10-8 SCREW,MACHINE 99 EA NS Request Quotation
MS35206-55 SCREW,MACHINE 4400 EA NS Request Quotation MS35206-263 SCREW,MACHINE 9300 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation AN515-10-8 SCREW,MACHINE 99 EA NS Request Quotation
MS35206-55 SCREW,MACHINE 4400 EA NS Request Quotation MS35206-263 SCREW,MACHINE 9300 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 90 EA NS Request Quotation Subscribe to View Vendor Details...
MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation AN515-10-8 SCREW,MACHINE 99 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 9300 EA NS Request Quotation MS35206-55 SCREW,MACHINE 4400 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 99 EA NS Request Quotation AN515-10-8 SCREW,MACHINE 99 EA NS Request Quotation
MS35206-263 SCREW,MACHINE 9300 EA NS Request Quotation MS35206-55 SCREW,MACHINE 4400 EA NS Request Quotation
Restrictions 5305-00-984-6210
5305-00-984-6210 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-984-6210
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-984-6210
- US Army (A191)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AJCTCLBFBDAZ
- MOE Rule:
- B031
- Effective Date:
- 1 Apr 1991
- US Coast Guard (C014)
- Effective Date:
- 1 Feb 2013
- Supplementary Collaborators:
- XH
- US Air Force (FXGS)
- Effective Date:
- 1 Nov 2000
- Former MOE Rule:
- FEGS
- Supplementary Receivers:
- SUTG
- NASA (G171)
- Effective Date:
- 1 Apr 1991
- NASA (G181)
- Effective Date:
- 1 Apr 1991
- NASA (G191)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- NASA (G801)
- Effective Date:
- 1 Apr 1991
- NASA (G861)
- Effective Date:
- 1 Apr 1991
- NASA (G881)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC14)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTJFHXHD
- Supplementary Receivers:
- KE
- Sweden (VK01)
- Effective Date:
- 1 Feb 2017
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Lithuania (WI01)
- Effective Date:
- 1 Jul 2000
- Slovenia (WL01)
- Effective Date:
- 1 Jan 2012
- Poland (WP01)
- Effective Date:
- 1 May 2005
- Bulgaria (WU01)
- Effective Date:
- 1 Oct 2002
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Jul 2010
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 2003
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5305-00-984-6210
- Part Number
- Manufacturer
- Status
- ASME B18.6.3
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- MS35206-263
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- 92154
- 2S125 - Hillman Group Inc The (Active)
- Primary Buy
- Primary Buy
- 822-1067
- 44940 - Cummins Power Generation Inc. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 01-0296 ITEM 53
- 20019 - Ward Leonard Ct Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 509185
- 01014 - Avtron Aerospace Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 50817
- 06433 - General Electrodynamics Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- WA-1429-10
- 08484 - Breeze-Eastern Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 95095659
- 33968 - Clark Equipment Co (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- G159927
- 34623 - Am General Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- FA09010487
- 44185 - Wollard International Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- B18.6.3
- 80204 - American National Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 2019823
- 001JK - Embraer S.A. (Active)
- Secondary Buy
- Secondary Buy
- 416995
- 77294 - Piper Industrial Manufacturing (Active)
- Secondary Buy
- Secondary Buy
- 2019823
- FB459 - Embraer Aviation International (Active)
- Secondary Buy
- Secondary Buy
- MS35206-263
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- XX002-0637
- H2229 - Rdm Technology B.V. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 120221
- 16004 - Davey Compressor Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 62019
- 90598 - Engineered Air Systems Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 472-123
- 92739 - Ampex Systems Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 012554-5
- 1FP59 - Ikon Systems Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- AN515-10-8
- 81352 - Air Force-Navy Aeronautical (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 62500-10
- 90598 - Engineered Air Systems Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS35206-55
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 71136-263
- 95097 - Little Giant Crane And Shovel Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 62731
- 16004 - Davey Compressor Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2019823
- S4956 - Embraer Empresa Brasileira De (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 87G1008H
- 12603 - Clark Equipment Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5350009846210
- A00AM - E.C.A Etablissement Central Des (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10082675
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 5305009846210
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 5925-984-6210
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 472-123
- 0PN68 - Ampex Data Systems Corporation (Active)
- Advisory Reference
- Advisory Reference
- 436732
- 80195 - Ed Etnyre & Co (Active)
- Advisory Reference
- Advisory Reference
- 62019
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Advisory Reference
- Advisory Reference
- 62731
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Advisory Reference
- Advisory Reference
- 62500-10
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Advisory Reference
- Advisory Reference
- 120221
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Advisory Reference
- Advisory Reference
- M1290
- 11568 - Gardner Denver Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-984-6210
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- End Item Identification [AGAV]
- Nsn 2320-01-304-2277 Pls (Palletized Loading System)
- Fastener Length [AASB]
- 0.500 Inches Nominal
- Head Diameter [AASL]
- 0.357 Inches Minimum And 0.373 Inches Maximum
- Head Height [AASU]
- 0.122 Inches Minimum And 0.133 Inches Maximum
- Head Style [AASK]
- Pan
- Minimum Tensile Strength [CQBC]
- 55000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Cross Recess Type 1
- Screw Material Document And Classification [CYAW]
- 66 Fed Std All Material Responses
- Screw Material [CYAU]
- Steel Comp 1010 Or Steel Comp 1011 Or Steel Comp 1013
- Screw Surface Treatment [CYBA]
- Zinc
- Screw Surface Treatment Document And Classification [CYBE]
- Astmb633 Assn Std Single Treatment Response
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A
- Thread Length [AASA]
- 0.417 Inches Minimum And 0.500 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Series Designator [THSD]
- Unc
DLA Procurement Analysis 5305-00-984-6210
- Last Stock Position:
- 100 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-984-6210
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- 02
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5305-00-984-6210
5305-12-304-4978 5305-99-128-8063 5305-12-163-9343 5305-12-317-3830 5305-99-923-0427 5305-17-029-4829 5305-66-098-4392 5305-99-135-7232 5305-99-716-4897 5305-99-544-4397 5305-66-037-1467 5305-66-015-5147 5305-99-104-3201 5305-66-153-8134 5305-66-086-8019 5305-21-897-8212 5305-99-577-2095 5305-13-109-5678
Freight Information 5305-00-984-6210
5305-00-984-6210 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-984-6210 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-984-6210 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-984-6210 is not classified as a special type of cargo when transported by water. 5305-00-984-6210 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
