5305-00-983-7447

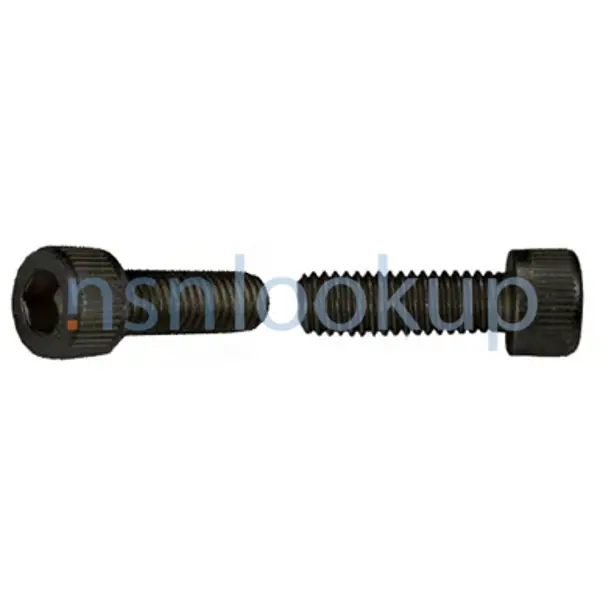

Socket Head Cap Screw
5305009837447 009837447 PS264 NAS1351-6-14P NAS1351-06-14P XX002-0286 MS16998-73
An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
November 2023
November 2023
NATO Update Count
47
47
NATO Data Quality
Marketplace 5305-00-983-7447
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-983-7447 5+ Documents (More...)
PS264 NAS1351-6-14P MS16998-73 NAS1351-06-14P XX002-0286 An externally threaded fastener whose threaded
MS16998-73 SCREW,CAP,SOCKET HEAD 30 EA NS Request Quotation Subscribe to View Vendor Details... 5305-
MS16998-73 SCREW,CAP,SOCKET HEAD 8 EA NS Request Quotation NAS1351-6-14P SCREW,CAP,SOCKET HEAD 12 EA
MS16998-73 SCREW,CAP,SOCKET HEAD 30 EA NS Request Quotation Subscribe to View Vendor Details... 5305-
MS16998-73 SCREW,CAP,SOCKET HEAD 8 EA NS Request Quotation NAS1351-6-14P SCREW,CAP,SOCKET HEAD 12 EA
enable JavaScript in your web browser . 5998-66-152-0464Circuit Card Assembly5998661520464 661520464 PS264
Socket Head Cap Screw 5305009837447,PS264 $1 a day Upgrade your Account Upgrade 5305-00-983-7447Socket
Head Cap Screw5305009837447 009837447 PS264 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-983
Socket Head Cap Screw 5305009837447,PS264 $1 a day Upgrade your Account Upgrade 5305-00-983-7447Socket
Head Cap Screw5305009837447 009837447 PS264 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-983
MS16998-73 SCREW,CAP,SOCKET HEAD 30 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 8 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 8 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 30 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 8 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 8 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 30 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 8 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation Subscribe to View Vendor Details...
MS16998-73 SCREW,CAP,SOCKET HEAD 8 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5305-00-983-7447
5305-00-983-7447 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-983-7447
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-983-7447
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCTBFBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Nov 2006
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Dec 2014
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Nov 2013
Approved Sources 5305-00-983-7447
- Part Number
- Manufacturer
- Status
- NAS1351-6-14P
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- NAS1351-06-14P
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- XX002-0286
- H2229 - Rdm Technology B.V. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MS16998-73
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PS264
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-983-7447
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.875 Inches Nominal
- Head Diameter [AASL]
- 0.550 Inches Minimum And 0.562 Inches Maximum
- Head Height [AASU]
- 0.368 Inches Minimum And 0.375 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Material [MATT]
- Steel Overall
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Internal Drive Style [ABQZ]
- Hexagon
- Width Across Flats [ASDB]
- 0.312 Inches Nominal
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 2 Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.875 Inches Nominal
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 24
Weapon Systems (WSDC) 5305-00-983-7447
DLA Procurement Analysis 5305-00-983-7447
- Last Stock Position:
- 233 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-983-7447
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5305-00-983-7447
Freight Information 5305-00-983-7447
5305-00-983-7447 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-983-7447 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-983-7447 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-983-7447 is not classified as a special type of cargo when transported by water. 5305-00-983-7447 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-983-7447
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-983-7447 9 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623V385X
- 13 Jul 2023
- Subscribe
- 1000
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F5540
- 17 Feb 2022
- Subscribe
- 1597
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F5540
- 17 Feb 2022
- Subscribe
- 1597
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F318M
- 15 Jul 2021
- Subscribe
- 44
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F318M
- 15 Jul 2021
- Subscribe
- 44
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F390E
- 12 Sep 2018
- Subscribe
- 341
- Subscribe
- Subscribe
- Subscribe
- SPE5EY18F8121
- 21 Mar 2018
- Subscribe
- 890
- Subscribe
- Subscribe
- Subscribe
- SPE5E216V8541
- 02 Aug 2016
- Subscribe
- 1131
- Subscribe
- Subscribe
- Subscribe
- SPE5E216V5248
- 12 Apr 2016
- Subscribe
- 508
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5305-00-983-7447 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
