5305-00-947-2309

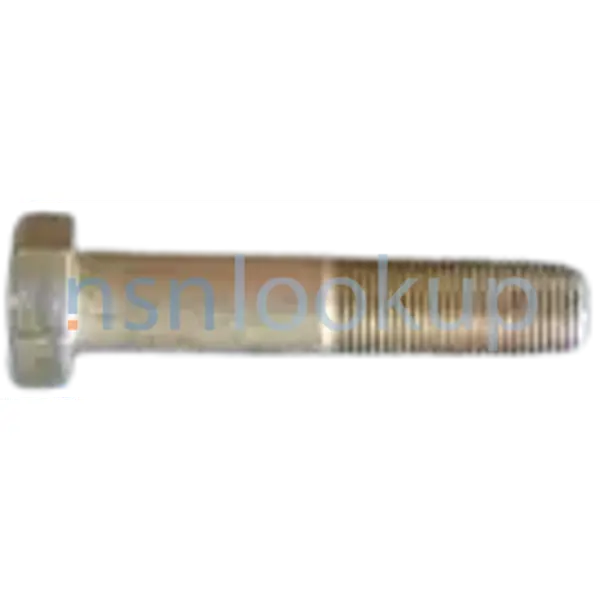

Hexagon Head Cap Screw
5305009472309 009472309 FFS85 FF-S-85 GE3S27916200N9 MS90727-194 B1821BH075F375N MS90726-194
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
Managed by United States
NSN Created on 30 Mar 1966
Data Last Changed
November 2023
November 2023
NATO Update Count
59
59
NATO Data Quality
Marketplace 5305-00-947-2309
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
5305-009472309 SCREW,CAP,HEXAGON HEAD 1 EA NS
5305009472309 SCREW,CAP,HEXAGON HEAD 54 EA NS
5305-00-947-2309 SCREW,CAP,HEXAGON HEAD 55 EA NS
Updated Every Day 5305-00-947-2309 RQST NE
Updated Every Day 5305-00-947-2309 RQST
Updated Every Day 5305-00-947-2309 RQST NE
Related Documents 5305-00-947-2309 5+ Documents (More...)
FFS85 FF-S-85 GE3S27916200N9 MS90726-194 MS90727-194 B1821BH075F375N An externally threaded fastener
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 37 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 2 EA NS Request
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 37 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 2 EA NS Request
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details...
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details...
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details...
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details...
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details...
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details...
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details...
FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5305-00-947-2309
5305-00-947-2309 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-947-2309
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-947-2309
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCTBFBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Mar 2016
- Australia (ZA01)
- Effective Date:
- 1 Jul 2002
- Belgium (ZB01)
- Effective Date:
- 3 Apr 2003
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 8 Jun 2011
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Jan 1997
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 5305-00-947-2309
- Part Number
- Manufacturer
- Status
- B1821BH075F375N
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Primary Buy
- Primary Buy
- FFS85
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- FF-S-85
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- MS90727-194
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B1821BH075F375N
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90726-194
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305009472309
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- GE3S27916200N9
- 09172 - General Electric Co Materials (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-947-2309
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 3.656 Inches Minimum And 3.750 Inches Maximum
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.455 Inches Minimum And 0.483 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae Gr 8 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.750 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 10P Style And 8 Grade
- Width Between Flats [AATB]
- 1.100 Inches Minimum And 1.125 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.750 Inches Minimum
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 16
