5305-00-936-4277
Thumbscrew
5305009364277 009364277 10861387-1
An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified). View more Thumbscrew
August 2023
38
Marketplace 5305-00-936-4277
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-936-4277 4+ Documents (More...)
(Identification) 1/2 NSN 5305-00-936-4277 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5305-00-936-4277 RQST Updated Every Day 5305-00-936-4277 RQST NE Related
Thumbscrew 5305009364277 009364277 53/fsc-5305/us 5305-00-080-5381 Thumbscrew 5305000805381 000805381
Thumbscrew 5305009364277 009364277 Upgrade for $1 a day Upgrade your Account Upgrade 5305-00-936
-4277Thumbscrew5305009364277 009364277 10861387 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-
Thumbscrew 5305009364277 009364277 Upgrade for $1 a day Upgrade your Account Upgrade 5305-00-936
-4277Thumbscrew5305009364277 009364277 10861387 Request a Quotation from participating marketplace vendors
Restrictions 5305-00-936-4277
5305-00-936-4277 is a Thumbscrew that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-936-4277
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-936-4277
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2003
Approved Sources 5305-00-936-4277
- Part Number
- Manufacturer
- Status
- 10861387-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10861387-1
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 5305-00-936-4277
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Diameter [AHYM]
- 0.380 Inches
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 2.190 Inches Nominal
- Fastener Length [AASB]
- 3.310 Inches Nominal
- Material [MATT]
- Steel Overall
- Material Document And Classification [MDCL]
- Mil-S-46172 Mil Spec Single Material Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Type 2,Class 3 Fed Spec Single Treatment Response Overall

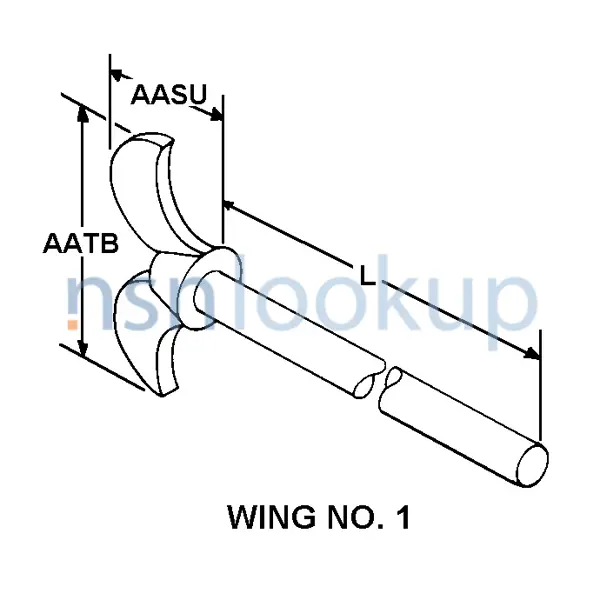

- Head Style [AASK]
- Wing No. 1
- Head Height [AASU]
- 0.500 Inches Nominal
- Width Between Flats [AATB]
- 2.000 Inches Nominal
- Point Style [ABQJ]
- Flat
- Special Features [FEAT]
- Unthreaded Hole In Shank,.076 Inches Nominal Diameter,Located 2.6220 Inches Minimum And 2.685 Inches Maximum From Bearing Surface Of Head
- Departure From Cited Document [ZZZW]
- When Used In M667 Applications Data Referenced To This Note May Not Be Changed,Waived Or Deviated From Without Determination Of Impact To Interfacecontrol Drawing No.18876-10293271 Or Written Approval Of The Lance Project Managers Office
Weapon Systems (WSDC) 5305-00-936-4277
DLA Procurement Analysis 5305-00-936-4277
- Last Stock Position:
- 179 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-936-4277
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-00-936-4277
Freight Information 5305-00-936-4277
5305-00-936-4277 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-936-4277 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-936-4277 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-936-4277 is not classified as a special type of cargo when transported by water. 5305-00-936-4277 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-936-4277
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-936-4277 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A424V0014
- 20 Oct 2023
- Subscribe
- 392
- Subscribe
- Subscribe
- Subscribe
- SPE4A623PU772
- 20 Jul 2023
- Subscribe
- 529
- Subscribe
- Subscribe
- Subscribe
- SPE4A723P6786
- 28 Feb 2023
- Subscribe
- 277
- Subscribe
- Subscribe
- Subscribe
- SPE4A622PM467
- 18 May 2022
- Subscribe
- 177
- Subscribe
- Subscribe
- Subscribe
- SPE4A622PF988
- 21 Mar 2022
- Subscribe
- 22
- Subscribe
- Subscribe
- Subscribe
- SPE5E816MQ183P00001
- 22 Apr 2016
- Subscribe
- 399
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5305-00-936-4277 October 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
