5305-00-916-2345

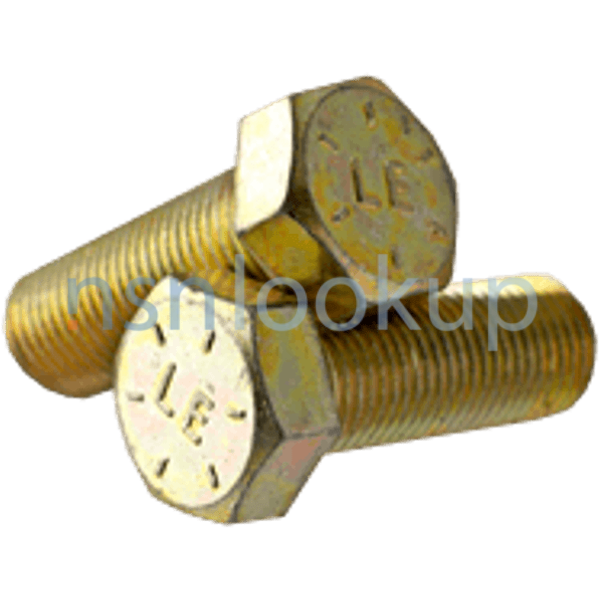

Hexagon Head Cap Screw
5305009162345 009162345 2300211-301220.002.0 222163 AES01F750B00AW9AA1 AES01F750B00AW9A91 MS90727-187 B1821BH075F200N FF-S-85 10082654
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
November 2023
53
Marketplace 5305-00-916-2345
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-916-2345 5+ Documents (More...)
Hexagon Head Cap Screw 5305009162345 5305-00-916-2345 5305009162345 009162345 is an externally
Hexagon Head Cap Screw 5305009162345 5305-00-916-2345 5305009162345 009162345 is an externally
Hexagon Head Cap Screw 5305009162345 5305-00-916-2345 5305009162345 009162345 is an externally
FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request
MS90727-187 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation Subscribe to View Vendor Details...
526761 FF-S-85 TY II ST 10P FFS85TYPE2STYLE10P 121793 An externally threaded fastener designed for
526761 FF-S-85 TY II ST 10P FFS85TYPE2STYLE10P 121793 An externally threaded fastener designed for
Restrictions 5305-00-916-2345
5305-00-916-2345 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5305-00-916-2345
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCLBFBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G180)
- Effective Date:
- 1 Apr 1991
- NASA (G930)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEJVHSHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Mar 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Feb 1994
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5305-00-916-2345
- Part Number
- Manufacturer
- Status
- AES01F750B00AW9AA1
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Primary Buy
- Primary Buy
- 2300211-301220.002.0
- D9448 - Rheinmetall Landsysteme Gmbh (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AES01F750B00AW9A91
- 05047 - The American Society Of Mechanical (Active)
- Secondary Buy
- Secondary Buy
- MS90727-187
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305009162345
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B1821BH075F200N
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FF-S-85
- 81348 - Federal Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10082654
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 222163
- 30076 - Hyster-Yale Group, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-916-2345
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.938 Inches Minimum And 2.000 Inches Maximum
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.455 Inches Minimum And 0.483 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Comp M1020 Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.750 Inches
- Material Document And Classification [MDCL]
- Astm A354, Gr Bd Assn Std All Material Responses Overall
- Width Between Flats [AATB]
- 1.100 Inches Minimum And 1.125 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.750 Inches Minimum And 1.938 Inches Maximum
- Thread Series Designator [THSD]
- Unf
- Thread Quantity Per Inch [CMLP]
- 16
Weapon Systems (WSDC) 5305-00-916-2345
DLA Procurement Analysis 5305-00-916-2345
- Last Stock Position:
- 2863 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-916-2345
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5305-00-916-2345
Freight Information 5305-00-916-2345
5305-00-916-2345 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-916-2345 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-916-2345 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-916-2345 is not classified as a special type of cargo when transported by water. 5305-00-916-2345 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-916-2345
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-916-2345 Most Recent 146 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A624FAB8F
- 08 Nov 2023
- Subscribe
- 47
- Subscribe
- Subscribe
- Subscribe
- SPE4A624FA6DX
- 20 Oct 2023
- Subscribe
- 932
- Subscribe
- Subscribe
- Subscribe
- SPE4A621V694L
- 19 Aug 2021
- Subscribe
- 2751
- Subscribe
- Subscribe
- Subscribe
- SPE4A621V277K
- 03 May 2021
- Subscribe
- 6993
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F5966P00002
- 21 Dec 2018
- Subscribe
- 7035
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F5965P00001
- 21 Dec 2018
- Subscribe
- 58
- Subscribe
- Subscribe
- Subscribe
- SPE5E318P0033
- 10 Oct 2017
- Subscribe
- 3500
- Subscribe
- Subscribe
- Subscribe
- SPE5E217V8016
- 05 Jun 2017
- Subscribe
- 837
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017148A01
- 26 Aug 2016
- Subscribe
- 3219
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017143M
- 21 Aug 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017141D
- 17 Aug 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017137J01
- 11 Aug 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017135C
- 08 Aug 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017134P
- 06 Aug 2016
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017132K
- 03 Aug 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017132U
- 03 Aug 2016
- Subscribe
- 160
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017130B
- 28 Jul 2016
- Subscribe
- 60
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017127B
- 27 Jul 2016
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017119Y
- 25 Jul 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017116L
- 21 Jul 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017111R
- 18 Jul 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017108K
- 14 Jul 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017099Y
- 07 Jul 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017098W
- 06 Jul 2016
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017059V
- 13 Jun 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017054V
- 08 Jun 2016
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017053X
- 08 Jun 2016
- Subscribe
- 1000
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017039P
- 26 May 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017040R
- 26 May 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017023U
- 23 May 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017026J
- 23 May 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017016L
- 19 May 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D0017000W
- 12 May 2016
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00179874
- 09 May 2016
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00179807
- 06 May 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00179649
- 04 May 2016
- Subscribe
- 80
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00179026
- 21 Apr 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00178800
- 19 Apr 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00178453
- 09 Apr 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00178090
- 01 Apr 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00178098
- 01 Apr 2016
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00178130
- 01 Apr 2016
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00175615
- 09 Feb 2016
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00175546
- 06 Feb 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00175475
- 05 Feb 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00175240
- 02 Feb 2016
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00175031
- 29 Jan 2016
- Subscribe
- 160
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00174971
- 28 Jan 2016
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00174847
- 25 Jan 2016
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00174123
- 04 Jan 2016
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00173808
- 22 Dec 2015
- Subscribe
- 120
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00173787
- 22 Dec 2015
- Subscribe
- 120
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00173677
- 18 Dec 2015
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00172879
- 25 Nov 2015
- Subscribe
- 260
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00172887
- 25 Nov 2015
- Subscribe
- 60
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00172803
- 23 Nov 2015
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00172694
- 19 Nov 2015
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00172699
- 19 Nov 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00172700
- 19 Nov 2015
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00172710
- 19 Nov 2015
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00172056
- 27 Oct 2015
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171893
- 21 Oct 2015
- Subscribe
- 80
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171899
- 21 Oct 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171878
- 20 Oct 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171845
- 19 Oct 2015
- Subscribe
- 26
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171840
- 19 Oct 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171605
- 13 Oct 2015
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171600
- 13 Oct 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171363
- 28 Sep 2015
- Subscribe
- 11
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171296
- 25 Sep 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171310
- 25 Sep 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171312
- 25 Sep 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7L115D00171214
- 23 Sep 2015
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900753GR
- 23 Aug 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900753GK
- 22 Aug 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900753CV
- 19 Aug 2015
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900752UJ
- 12 Aug 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900752VE
- 12 Aug 2015
- Subscribe
- 64
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900751XG
- 29 Jul 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900751DR
- 14 Jul 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900751CP
- 13 Jul 2015
- Subscribe
- 60
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900750ZA
- 09 Jul 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900750ZG
- 09 Jul 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900750UB
- 03 Jul 2015
- Subscribe
- 84
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900750GV
- 23 Jun 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900750GM
- 23 Jun 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900749QN
- 10 Jun 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900749QQ
- 10 Jun 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900749QS
- 10 Jun 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900749NP
- 08 Jun 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900749NW
- 08 Jun 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900749HL
- 02 Jun 2015
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900749CY
- 29 May 2015
- Subscribe
- 60
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900748GJ
- 13 May 2015
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900747YL
- 07 May 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900745WJ
- 01 Apr 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900745MT
- 29 Mar 2015
- Subscribe
- 80
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900745MK
- 28 Mar 2015
- Subscribe
- 80
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900745HS
- 26 Mar 2015
- Subscribe
- 63
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900744WW
- 20 Mar 2015
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900744YC
- 20 Mar 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900744FF
- 10 Mar 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900743ZN
- 05 Mar 2015
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900743UK01
- 03 Mar 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900742PT
- 12 Feb 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900742NZ
- 11 Feb 2015
- Subscribe
- 8
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900742CX
- 05 Feb 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900741QK
- 27 Jan 2015
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900741PU
- 26 Jan 2015
- Subscribe
- 208
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900741KZ
- 23 Jan 2015
- Subscribe
- 24
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900741CH
- 15 Jan 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740WB
- 12 Jan 2015
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740VB
- 11 Jan 2015
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740VJ
- 11 Jan 2015
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740UP
- 09 Jan 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740SW
- 08 Jan 2015
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740KY
- 31 Dec 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740JU
- 30 Dec 2014
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740KM
- 30 Dec 2014
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740JV
- 30 Dec 2014
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740CH
- 22 Dec 2014
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900740BS
- 19 Dec 2014
- Subscribe
- 150
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900739LF
- 08 Dec 2014
- Subscribe
- 16
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900739LD
- 08 Dec 2014
- Subscribe
- 84
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900738KU
- 14 Nov 2014
- Subscribe
- 28
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900737WU
- 03 Nov 2014
- Subscribe
- 16
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900737QX
- 27 Oct 2014
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900737QA
- 27 Oct 2014
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900737LJ
- 23 Oct 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900737JH
- 21 Oct 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900736DP
- 25 Sep 2014
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900736DH
- 25 Sep 2014
- Subscribe
- 140
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900736DF
- 25 Sep 2014
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900736DE
- 25 Sep 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900735UW
- 22 Sep 2014
- Subscribe
- 19
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900735UF
- 22 Sep 2014
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900734XW
- 08 Sep 2014
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900734TS
- 04 Sep 2014
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900734NL
- 30 Aug 2014
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900734GU
- 27 Aug 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900734AR
- 25 Aug 2014
- Subscribe
- 152
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900733XW
- 21 Aug 2014
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900733KG
- 13 Aug 2014
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900732SE
- 04 Aug 2014
- Subscribe
- 9
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900732QA
- 31 Jul 2014
- Subscribe
- 9
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D900732LS
- 30 Jul 2014
- Subscribe
- 9
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5305-00-916-2345 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
