5305-00-832-9849
Setscrew
5305008329849 008329849 CC-4143-01 50121 122-10935-3 5305PL1697428 5305PL0735733 CC-4143
An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads. View more Setscrew
Managed by United States
NSN Created on 6 Apr 1967
Data Last Changed
November 2023
November 2023
NATO Update Count
47
47
NATO Data Quality
Marketplace 5305-00-832-9849
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-832-9849 5+ Documents (More...)
122-10935-3 CC-4143-01 50121 5305PL1697428 5305PL0735733 CC-4143 An externally threaded device whose

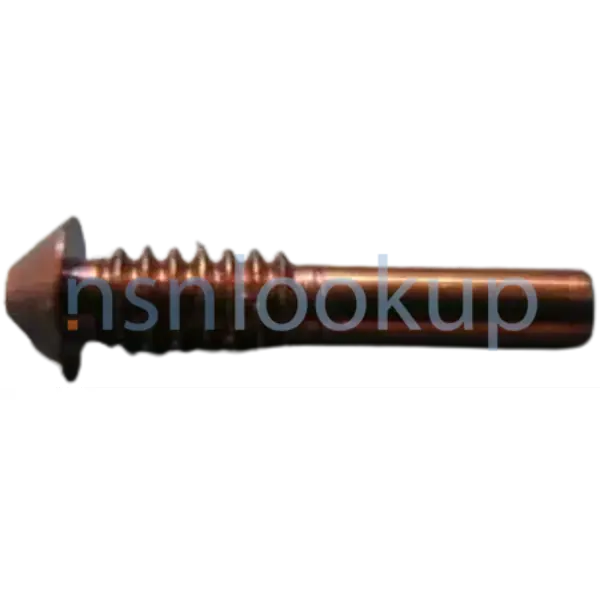

Photo 1/4 NSN 5305-00-832-9849 (Identification) 2/4 NSN 5305-00-832-9849 (Identification) 3/4 NSN
( More... ) https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-832-9849 Setscrew 5305008329849 008329849,122
Photo 1/4 NSN 5305-00-832-9849 (Identification) 2/4 NSN 5305-00-832-9849 (Identification) 3/4 NSN
( More... ) https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-832-9849 Setscrew 5305008329849 008329849,122
058-9362 5305-00-097-8953 5305-00-131-7417 5305-00-027-6244 5305-00-286-0301 5305-14-347-8900 5305-00-832-9849
058-9362 5305-00-097-8953 5305-00-131-7417 5305-00-027-6244 5305-00-286-0301 5305-14-347-8900 5305-00-832-9849
058-9362 5305-00-097-8953 5305-00-131-7417 5305-00-027-6244 5305-00-286-0301 5305-14-347-8900 5305-00-832-9849
058-9362 5305-00-097-8953 5305-00-131-7417 5305-00-027-6244 5305-00-286-0301 5305-14-347-8900 5305-00-832-9849
Restrictions 5305-00-832-9849
5305-00-832-9849 is a Setscrew that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-832-9849
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-832-9849
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Nov 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Mar 2010
- Belgium (ZB01)
- Effective Date:
- 1 Dec 1999
- Canada (ZC01)
- Effective Date:
- 1 Feb 2005
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Mar 2000
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Aug 1996
- Portugal (ZP01)
- Effective Date:
- 1 Jul 1996
- Denmark (ZS01)
- Effective Date:
- 1 Sep 2002
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5305-00-832-9849
- Part Number
- Manufacturer
- Status
- 50121
- Manufacturer
- 26233 - Nylok Llc (Active)
- Primary Buy
- Primary Buy
- CC-4143-01
- 62323 - Conax Florida Corporation (Active)
- Secondary Buy
- Secondary Buy
- 50121
- 59053 - Butler, Inc (Active)
- Secondary Buy
- Secondary Buy
- 122-10935-3
- 99449 - H Koch & Sons Co (Active)
- Secondary Buy
- Secondary Buy
- 50121
- 26304 - Torkon Fastener Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305PL1697428
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5305PL0735733
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- CC-4143
- 62323 - Conax Florida Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5305-00-832-9849
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.445 Inches Minimum And 0.455 Inches Maximum
- Head Style [AASK]
- Headless (Setscrew)
- Material [MATT]
- Plastic Locking Feature
- Material [MATT]
- Steel Comp 631 Fastener
- Nominal Thread Diameter [AHYM]
- 0.112 Inches
- Internal Drive Style [ABQZ]
- Slot
- Locking Feature [AAUM]
- Strip Threads
- Material Document And Classification [MDCL]
- Ams 5643 Assn Std Single Material Response Fastener
- Point Style [ABQJ]
- Dog
- Point Diameter [AAVA]
- 0.082 Inches Minimum And 0.083 Inches Maximum
- Point Length [AAUY]
- 0.315 Inches Minimum And 0.335 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Mil-S-5002 Mil Spec Single Treatment Response Fastener
- Surface Treatment [SFTT]
- Passivate Fastener
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.120 Inches Minimum And 0.130 Inches Maximum
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 40
