5305-00-807-3927

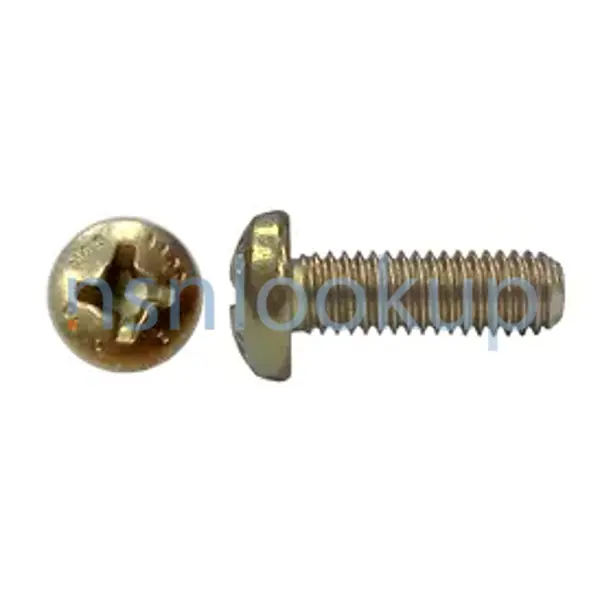

Machine Screw
5305008073927 008073927 NAS1101-04-3 NAS1100-04-4 10125500
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
November 2023
41
Marketplace 5305-00-807-3927
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-807-3927 3+ Documents (More...)
NAS1100-04-4 SCREW,MACHINE 1400 EA NS Request Quotation NAS1101-04-3 SCREW,MACHINE 62 EA NS Request Quotation
NAS1100-04-4 SCREW,MACHINE 625 EA NS Request Quotation Updated Every Day 5305-00-807-3927 RQST NE Updated
/fsg-31/fsc-3120/us
Day 3120-01-423-3300 RQST Updated Every Day 3120- https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-807-3927
Machine Screw 5305008073927 008073927 your Account Upgrade 5305-00-807-3927Machine Screw5305008073927
NAS1101-04-3 SCREW,MACHINE 34 EA NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-807-3927 Machine Screw 5305008073927 008073927
Restrictions 5305-00-807-3927
5305-00-807-3927 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-807-3927
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-807-3927
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- NASA (G180)
- Effective Date:
- 1 Sep 1993
- US Marine Corps (MC47)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Finland (WF01)
- Effective Date:
- 1 Jun 2009
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- Spain (YB01)
- Effective Date:
- 1 Dec 2008
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Jan 2002
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Portugal (ZP01)
- Effective Date:
- 1 Jul 1998
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Oct 1997
- Norway (ZT01)
- Effective Date:
- 1 Mar 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jun 1997
Approved Sources 5305-00-807-3927
- Part Number
- Manufacturer
- Status
- NAS1100-04-4
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 10125500
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- NAS1101-04-3
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-807-3927
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- Fastener Length [AASB]
- 0.219 Inches Minimum And 0.250 Inches Maximum
- Hardness Rating [CQFM]
- 36.0 Rockwell C Minimum And 40.0 Rockwell C Maximum
- Head Diameter [AASL]
- 0.205 Inches Minimum And 0.219 Inches Maximum
- Head Height [AASU]
- 0.070 Inches Minimum And 0.080 Inches Maximum
- Head Style [AASK]
- Pan
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.112 Inches
- Internal Drive Style [ABQZ]
- Torque Set
- Screw Material Document And Classification [CYAW]
- Mil-S-5000 Mil Spec 1St Material Response Or Mil-S-6049 Mil Spec 2Nd Material Response Or Mil-S-6098 Mil Spec 3Rd Material Response Or Mil-S-8503 Mil Spec 4Th Material Response Or Mil-S-5626 Mil Spec 5Th Material Response Or Ams 6300 Assn Std 6Th Material Response
- Screw Surface Treatment Document And Classification [CYBE]
- Qq-P-416,Ty 2,Cl 3 Fed Spec All Treatment Responses
- Screw Surface Treatment [CYBA]
- Cadmium And Chromate
- Screw Material [CYAU]
- Steel Comp E4340 Or Steel Comp 8740 Or Steel Comp 8735 Or Steel Comp 6150 Or Steel Comp 4140 Or Steel Comp 4037
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.200 Inches Minimum And 0.250 Inches Maximum
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 40
