5305-00-719-5219

Hexagon Head Cap Screw

5305007195219 007195219 FF-S-85 500412-12 A200.0229-85 MS35290-11 24C-820 18C820 4042-503 2455012 A200022985 71144-111 9424113 B1821BH050F125N MS90727-111 MS90726-111 13247-011 5305PL0895381 5305PL1426074

An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
June 2025

NATO Update Count
100

NATO Data Quality

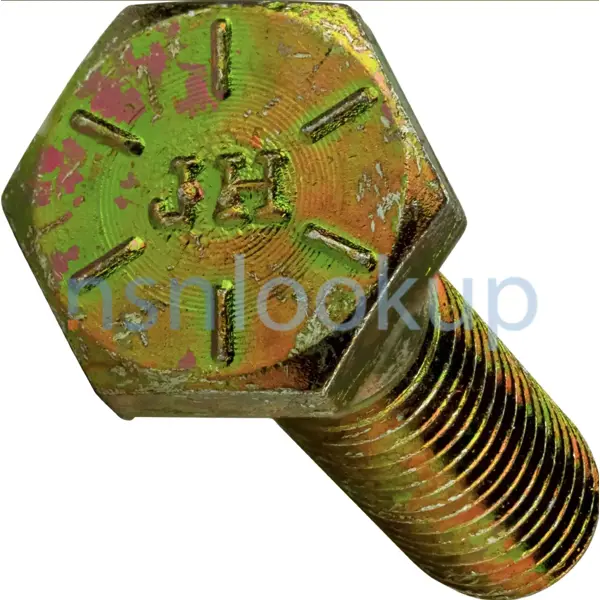

5305-00-719-5219 SCREW,CAP,HEXAGON HEAD 5305007195219 007195219 1/2 — 5305-00-719-5219 Photo 1/2

AASK Style C1 for 5305-00-719-5219 2/2 — NSN 5305-00-719-5219 (Identification) 2/2

Marketplace 5305-00-719-5219

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

MS90726-111 SCREW,CAP,HEXAGON HEAD 99 HD NS

Subscribe to View Vendor Details...

FFS85 SCREW,CAP,HEXAGON HEAD 94 HD NS

FF-S-85 SCREW,CAP,HEXAGON HEAD 200 HD NS

Subscribe to View Vendor Details...

MS90727-111 SCREW,CAP,HEXAGON HEAD 96 HD NS

B1821BH050F125N SCREW,CAP,HEXAGON HEAD 124 HD NS

Subscribe to View Vendor Details...

13247-011 SCREW,CAP,HEXAGON H 67 HD SN

Subscribe to View Vendor Details...

MS35290-11 CAP 88 HD NS

MS35290-11 SCREW 190 HD NS

MS90726-11 SCREW 1 HD NS

Subscribe to View Vendor Details...

9424113CUCVFEB9034P SCREW,CAP,HEXAGON HEAD RQST NS

Subscribe to View Vendor Details...

MS90726-111 SCREW,CAP,HEXAGON HEAD RQST NS

Subscribe to View Vendor Details...

MS90726-111 SCREW,CAP,HEXAGON HEAD 25410 HD NS

Subscribe to View Vendor Details...

5305-00-719-5219 SCREW 2 HD NS

Subscribe to View Vendor Details...

MS90726-111 SCREW,CAP,HEXAGON HEAD 98 HD NS

Subscribe to View Vendor Details...

FF-S-85 SCREW,CAP,HEXAGON HEAD 37 HD NS

FFS85 SCREW,CAP,HEXAGON HEAD 2 HD NS

MS90726-111 SCREW,CAP,HEXAGON HEAD 7 HD NS

Subscribe to View Vendor Details...

1549159 SCREW,CAP,HEXAGON HEAD 2 HD NS

Updated Every Day

5305-00-719-5219 RQST NE

Updated Every Day

5305-00-719-5219 RQST

Updated Every Day

5305-00-719-5219 RQST NE

Restrictions 5305-00-719-5219

5305-00-719-5219 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5305-00-719-5219

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-719-5219

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJVHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Jul 2000

Poland (WP01)
Effective Date:: 1 Apr 2003

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Malaysia (YW01)
Effective Date:: 1 Jun 1996

Australia (ZA01)
Effective Date:: 1 Jun 2011

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Jul 2005

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Aug 1993

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jun 2009

Approved Sources 5305-00-719-5219

Part Number
Manufacturer
Status
B1821BH050F125N: 05047 - The American Society Of Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
FF-S-85: 81348 - Federal Specifications Promulgated (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
500412-12: 97271 - Dana Light Axle Products, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
A200.0229-85: 54077 - Oshkosh Aerotech, Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
2455012: 0B6S1 - International Business Machines Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 5
MS35290-11: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
24C-820: 40152 - Vme Americas Inc Sub Of Vme Group N (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
18C820: 12603 - Clark Equipment Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5305007195219: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
4042-503: 15093 - Specialties Sales And Mfg Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
2455012: 30874 - International Business Machines (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
A200022985: 54077 - Oshkosh Aerotech, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
71144-111: 95097 - Little Giant Crane And Shovel Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4042-503: 15083 - Terrell Machine Co Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
9424113: 11862 - General Motors Corp Chevrolet Motor (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
B1821BH050F125N: 80204 - American National Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS90727-111: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS90726-111: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
13247-011: U3788 - Vermeer Equipment (Uk) Ltd (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
5305PL0895381: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305PL1426074: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5305-00-719-5219

Characteristic
Specifications
FIIG: A003B0
End Item Identification [AGAV]: Jnavigation Radio Set;Airborne Mobile Dir Air Spt Ct;B-1 Support Equipment;Aircraft Elevators;Fire Pumps;Circuit Switch;Cargo / Weapons Elevators;Jp-5 Aviation Fuel System;Phoenix Missile;Communications Systems
Fastener Length [AASB]: 1.250 Inches Nominal
Hardness Rating [CQFM]: 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
Head Height [AASU]: 0.302 Inches Minimum And 0.323 Inches Maximum
Head Style [AASK]: Hexagon
Material Document And Classification [MDCL]: Sae J429 Gr 8 Assn Std Single Material Response Overall
Material [MATT]: Steel Overall
Minimum Tensile Strength [CQBC]: 150000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]: 0.500 Inches
Nondefinitive Spec/Std Data [ZZZT]: 2 Type And 10P Style And 8 Grade
Width Between Flats [AATB]: 0.736 Inches Minimum And 0.750 Inches Maximum
Surface Treatment Document And Classification [STDC]: Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
Surface Treatment [SFTT]: Zinc Overall And Chromate Overall
Thread Class [AAJD]: 2A
Thread Direction [AAJF]: Right-Hand
Thread Length [AASA]: 1.250 Inches Maximum
Thread Series Designator [THSD]: Unf
Thread Quantity Per Inch [CMLP]: 20

Weapon Systems (WSDC) 5305-00-719-5219

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5305-00-719-5219

Last Stock Position:: 19900 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5305-00-719-5219

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); HD; Subscribe; 1
Oct 2021: Department of the Air Force (DF); HD; Subscribe; 1
Oct 2020: Department of the Air Force (DF); HD; Subscribe; 1
Feb 2020: Department of the Army (DA); HD; Subscribe; 1

MOE: USC; Code; Statement; Order of Use; Jump To Code; Qty Per Assy; UOM; Technical Document; Quantative Expression
US Marine Corps (DM): M; 0; Reversal Of Phrase Code Z 5305-00-761-4227

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 5305-00-719-5219

Freight Information 5305-00-719-5219

5305-00-719-5219 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-719-5219 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-719-5219 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-719-5219 is not classified as a special type of cargo when transported by water. 5305-00-719-5219 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5305-00-719-5219

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5305-00-719-5219 31 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A624FAE9G: 10 Nov 2023; Subscribe; 9; Subscribe; Subscribe
SPE4A624FA4JW: 17 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A624FA1AJ: 12 Oct 2023; Subscribe; 36; Subscribe; Subscribe
SPE4A624FA1AJ: 12 Oct 2023; Subscribe; 36; Subscribe; Subscribe
SPE4A624FA9D6: 11 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A624FA9D6: 11 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A624FA65V: 04 Oct 2023; Subscribe; 3; Subscribe; Subscribe
SPE4A624FA65V: 04 Oct 2023; Subscribe; 3; Subscribe; Subscribe
SPE4A624FA45G: 03 Oct 2023; Subscribe; 2; Subscribe; Subscribe
SPE4A624FA48J: 03 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A624FA45G: 03 Oct 2023; Subscribe; 2; Subscribe; Subscribe
SPE4A624FA48J: 03 Oct 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A624FA492: 02 Oct 2023; Subscribe; 5; Subscribe; Subscribe
SPE4A624FA492: 02 Oct 2023; Subscribe; 5; Subscribe; Subscribe
SPE4A623FCB45: 28 Sep 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A623FCB45: 28 Sep 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A623FC5BH: 25 Sep 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A623FC5BH: 25 Sep 2023; Subscribe; 1; Subscribe; Subscribe
SPE4A623V7610: 24 Jan 2023; Subscribe; 271; Subscribe; Subscribe
SPE4A622F2519: 02 Nov 2021; Subscribe; 460; Subscribe; Subscribe
SPE4A622F2519: 02 Nov 2021; Subscribe; 460; Subscribe; Subscribe
SPE4A621F459K: 01 Sep 2021; Subscribe; 68; Subscribe; Subscribe
SPE4A621F459K: 01 Sep 2021; Subscribe; 68; Subscribe; Subscribe
SPE4A621F451D: 26 Aug 2021; Subscribe; 54; Subscribe; Subscribe
SPE4A621F451D: 26 Aug 2021; Subscribe; 54; Subscribe; Subscribe
SPE4A621F9020: 05 Mar 2021; Subscribe; 68; Subscribe; Subscribe
SPE4A621F9019: 05 Mar 2021; Subscribe; 54; Subscribe; Subscribe
SPE4A621F9019: 05 Mar 2021; Subscribe; 54; Subscribe; Subscribe
SPE4A621F9020: 05 Mar 2021; Subscribe; 68; Subscribe; Subscribe
SPE5E419V1063: 06 Nov 2018; Subscribe; 182; Subscribe; Subscribe
SPE5EM18V7163P00001: 03 Aug 2018; Subscribe; 55; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5305-00-719-5219 April 2020

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5305-00-719-5219

Related Documents 5305-00-719-5219 5+ Documents (More...)

Restrictions 5305-00-719-5219

Import and Export 5305-00-719-5219

End Users 5305-00-719-5219

Approved Sources 5305-00-719-5219

Datasheet 5305-00-719-5219

Weapon Systems (WSDC) 5305-00-719-5219

DLA Procurement Analysis 5305-00-719-5219

Management Data 5305-00-719-5219

Army

Navy

Marine Corps

Similar Supply Items to 5305-00-719-5219

Freight Information 5305-00-719-5219

Packaging Data 5305-00-719-5219

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5305-00-719-5219 31 Records

Contracting Technical Data File (CTDF) 5305-00-719-5219 April 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
