5305-00-719-3997

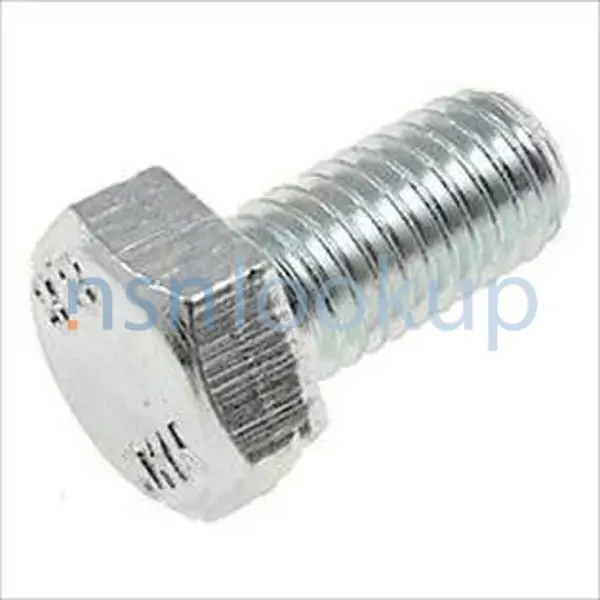

Hexagon Head Cap Screw
5305007193997 007193997 1/4-20UNC-2AX1/2LGTY1GR316 2078-2402-001 AB 01-0296 ITEM NO 54 E106482 PART NO 96 SPP60-0152 32018-4-AK 801625-551-003 PC NO 29A 82-2063-0050 1034-D100 ITEM 306-12080 92-AV101-N-SYM- 30 MS35307-303 145-4510942-13 0740778 207MR082P001 F08 28320 F420C2-8 717124431800
