5305-00-709-8517

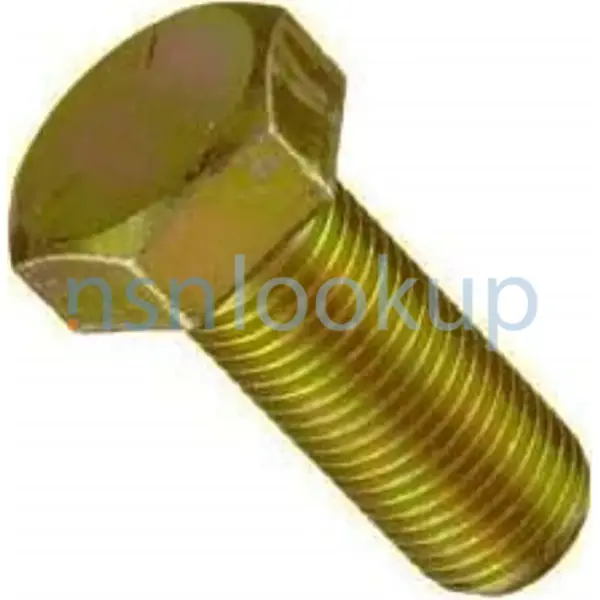

Hexagon Head Cap Screw

5305007098517 007098517 ASME B18.2.1 199-310 AES01F438A00AW9A91 B1821BH044F100N 181395 MS90727-85 FF-S-85 MS90726-85 10469647

An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw

Managed by United States

NSN Created on 1 Jan 1960

Data Last Changed
June 2025

NATO Update Count
69

NATO Data Quality

5305-00-709-8517 SCREW,CAP,HEXAGON HEAD 5305007098517 007098517 1/2 — 5305-00-709-8517 Photo 1/2

AASK Style C1 for 5305-00-709-8517 2/2 — NSN 5305-00-709-8517 (Identification) 2/2

Marketplace 5305-00-709-8517

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

FF/S/85 SCREW,CAP,HEXAGON HEAD 30 PG NS

FFS85 SCREW,CAP,HEXAGON HEAD 11 PG NS

Subscribe to View Vendor Details...

MS90726-85 SCREW,CAP,HEXAGON HEAD 40 PG NS

Subscribe to View Vendor Details...

MS90726-85 SCREW,CAP,HEXAGON HEAD 435 PG NS

Subscribe to View Vendor Details...

MS90727-85 SCREW,CAP,HEXAGON HEAD 200 PG NS

Subscribe to View Vendor Details...

FFS85 SCREW,CAP,HEXAGON HEAD 94 PG NS

FF-S-85 SCREW,CAP,HEXAGON HEAD 200 PG NS

Subscribe to View Vendor Details...

5305-00-709-8517 SCREW,CAP,HEXAGON HEAD 19 PG NS

Subscribe to View Vendor Details...

FFS85 SCREW,CAP,HEXAGON HEAD 1 PG NS

Subscribe to View Vendor Details...

MS90726-85 SCREW,CAP,HEXAGON HEAD 236 PG NS

Subscribe to View Vendor Details...

5905-00-709-8517 SCREW,CAP,HEXAGON HEAD 8 PG NS

Subscribe to View Vendor Details...

Updated 14 Days Ago

AES01F438A00AW9A91 SCREW 17 PG NS

Subscribe to View Vendor Details...

BOLT716201 SCREW,CAP,HEXAGON HEAD RQST NS

Subscribe to View Vendor Details...

181395 SCREW,CAP,HEXAGON HEAD 1 PG NS

Subscribe to View Vendor Details...

181395 SCREW,CAP,HEXAGON HEAD 2 PG NS

Subscribe to View Vendor Details...

181395 SCREW,CAP,HEXAGON HEAD 10 PG NS

Subscribe to View Vendor Details...

MS90727-85 SCREW,CAP,HEXAGON HEAD 5 PG NS

Subscribe to View Vendor Details...

MS90727-85 SCREW,CAP,HEXAGON HEAD 2300 PG NS

MS90726-85 SCREW,CAP,HEXAGON HEAD 77 PG NS

ASMEB18.2.1 SCREW,CAP,HEXAGON HEAD 1100 PG NS

Subscribe to View Vendor Details...

FF-S-85 SCREW,CAP,HEXAGON HEAD 37 PG NS

FFS85 SCREW,CAP,HEXAGON HEAD 2 PG NS

Subscribe to View Vendor Details...

007098517.5305 SCREW,CAP,HEXAGON HEAD 30 PG NS

Subscribe to View Vendor Details...

FFS85 SCREW,CAP,HEXAGON HEAD 1 PG NS

Updated Every Day

5305-00-709-8517 RQST NE

Updated Every Day

5305-00-709-8517 RQST

Updated Every Day

5305-00-709-8517 RQST NE

Restrictions 5305-00-709-8517

5305-00-709-8517 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5305-00-709-8517

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-709-8517

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

National Security Agency (DGXK)
Effective Date:: 1 Apr 2006
Former MOE Rule:: DKZ2; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G06X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G06I; AMC 1 AMSC G

NASA (G76X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G76I; AMC 1 AMSC G

NASA (G81X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G81I; AMC 1 AMSC G

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Jul 2000

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Feb 2012

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 May 1998

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Jul 2003

Approved Sources 5305-00-709-8517

Part Number
Manufacturer
Status
181395: 39VG9 - Progress Rail Locomotive Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AES01F438A00AW9A91: 05047 - The American Society Of Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
ASME B18.2.1: 05047 - The American Society Of Mechanical (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
B1821BH044F100N: 80204 - American National Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
181395: 21450 - Army Weapons Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
MS90727-85: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
181395: 72915 - General Motors Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
5305007098517: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
FF-S-85: 81348 - Federal Specifications Promulgated (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS90726-85: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
10469647: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
199-310: 72741 - Dorman Products, Inc. (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC E

Datasheet 5305-00-709-8517

Characteristic
Specifications
FIIG: A003B0
Fastener Length [AASB]: 1.000 Inches Nominal
Hardness Rating [CQFM]: 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
Head Height [AASU]: 0.272 Inches Minimum And 0.291 Inches Maximum
Head Style [AASK]: Hexagon
Material Document And Classification [MDCL]: Sae Gr 8 Assn Std Single Material Response Overall
Material [MATT]: Steel Overall
Minimum Yield Strength [CQHQ]: 120000 Pounds Per Square Inch
Minimum Tensile Strength [CQBC]: 150000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]: 0.438 Inches
Width Between Flats [AATB]: 0.612 Inches Minimum And 0.625 Inches Maximum
Surface Treatment Document And Classification [STDC]: Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
Surface Treatment [SFTT]: Zinc Overall And Chromate Overall
Thread Direction [AAJF]: Right-Hand
Thread Class [AAJD]: 2A
Thread Length [AASA]: 1.000 Inches Maximum
Thread Quantity Per Inch [CMLP]: 20
Thread Series Designator [THSD]: Unf

Weapon Systems (WSDC) 5305-00-709-8517

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5305-00-709-8517

Last Stock Position:: 1100 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5305-00-709-8517

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Feb 2023: Department of the Air Force (DF); PG; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe
May 2021: Defense Logistics Agency (DS); EA; Subscribe
Oct 2019: Department of the Air Force (DF); EA; Subscribe

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 5305-00-709-8517

Freight Information 5305-00-709-8517

5305-00-709-8517 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-709-8517 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-709-8517 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-709-8517 is not classified as a special type of cargo when transported by water. 5305-00-709-8517 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5305-00-709-8517

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5305-00-709-8517 Most Recent 64 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE4A624FAJ86: 01 Nov 2023; Subscribe; 222; Subscribe; Subscribe
SPE4A624FAJ87: 01 Nov 2023; Subscribe; 1170; Subscribe; Subscribe
SPE4A623FBSS6: 11 Aug 2023; Subscribe; 16; Subscribe; Subscribe
SPE4A623FBSS7: 11 Aug 2023; Subscribe; 1080; Subscribe; Subscribe
SPE4A623FBSS6: 11 Aug 2023; Subscribe; 16; Subscribe; Subscribe
SPE4A623FBSS7: 11 Aug 2023; Subscribe; 1080; Subscribe; Subscribe
SPE4A623FBP0M: 03 Aug 2023; Subscribe; 242; Subscribe; Subscribe
SPE4A623FBP0N: 03 Aug 2023; Subscribe; 563; Subscribe; Subscribe
SPE4A623FBP0M: 03 Aug 2023; Subscribe; 242; Subscribe; Subscribe
SPE4A623FBP0N: 03 Aug 2023; Subscribe; 563; Subscribe; Subscribe
SPE4A523V2681: 03 Jul 2023; Subscribe; 1247; Subscribe; Subscribe
SPE4A523V2641: 29 Jun 2023; Subscribe; 22; Subscribe; Subscribe
SPE4A523V2575: 27 Jun 2023; Subscribe; 16; Subscribe; Subscribe
SPE4A523V2489: 23 Jun 2023; Subscribe; 55; Subscribe; Subscribe
SPE5EM19V1029P00001: 20 Nov 2018; Subscribe; 13200; Subscribe; Subscribe
SPE5E319V2106: 15 Nov 2018; Subscribe; 7190; Subscribe; Subscribe
SPE5E317V2046: 11 May 2017; Subscribe; 16098; Subscribe; Subscribe
SPE5E217V1773: 16 Nov 2016; Subscribe; 8954; Subscribe; Subscribe
SPE5E216V8823: 09 Aug 2016; Subscribe; 4604; Subscribe; Subscribe
SPM7LX10D9W066441: 29 Jan 2015; Subscribe; 2800; Subscribe; Subscribe
SPM7LX10D9W066221: 29 Dec 2014; Subscribe; 36; Subscribe; Subscribe
SPM7LX10D9W066129: 16 Dec 2014; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W066097: 11 Dec 2014; Subscribe; 50; Subscribe; Subscribe
SPM7LX10D9W066086: 10 Dec 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066066: 08 Dec 2014; Subscribe; 200; Subscribe; Subscribe
SPM7LX10D9W066037: 02 Dec 2014; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W065957: 17 Nov 2014; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W065916: 13 Nov 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W065874: 05 Nov 2014; Subscribe; 200; Subscribe; Subscribe
SPM7LX10D9W065751: 21 Oct 2014; Subscribe; 16; Subscribe; Subscribe
SPM7LX10D9W065731: 17 Oct 2014; Subscribe; 16; Subscribe; Subscribe
SPM7LX10D9W065703: 14 Oct 2014; Subscribe; 16; Subscribe; Subscribe
SPM7LX10D9W065696: 13 Oct 2014; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W065674: 07 Oct 2014; Subscribe; 4; Subscribe; Subscribe
SPM7LX10D9W065613: 25 Sep 2014; Subscribe; 4; Subscribe; Subscribe
SPM7LX10D9W065493: 12 Sep 2014; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W065495: 12 Sep 2014; Subscribe; 40; Subscribe; Subscribe
SPM7LX10D9W065453: 09 Sep 2014; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W065461: 09 Sep 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W065465: 09 Sep 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W065381: 27 Aug 2014; Subscribe; 4; Subscribe; Subscribe
SPM7LX10D9W065363: 26 Aug 2014; Subscribe; 40; Subscribe; Subscribe
SPM7LX10D9W065366: 26 Aug 2014; Subscribe; 50; Subscribe; Subscribe
SPM7LX10D9W065339: 25 Aug 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W065347: 25 Aug 2014; Subscribe; 10; Subscribe; Subscribe
SPM7LX10D9W065220: 13 Aug 2014; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W065228: 13 Aug 2014; Subscribe; 4; Subscribe; Subscribe
SPM7LX10D9W065236: 13 Aug 2014; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W065193: 12 Aug 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W065122: 04 Aug 2014; Subscribe; 1; Subscribe; Subscribe
SPE5E214MQ355: 25 Jun 2014; Subscribe; 20000; Subscribe; Subscribe
SPM7LX10D9W064950: 10 Jun 2014; Subscribe; 5; Subscribe; Subscribe
SPM7LX10D9W064930: 05 Jun 2014; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W064926: 05 Jun 2014; Subscribe; 4; Subscribe; Subscribe
SPM7LX10D9W064917: 04 Jun 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064836: 21 May 2014; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W064829: 20 May 2014; Subscribe; 5; Subscribe; Subscribe
SPM7LX10D9W064813: 19 May 2014; Subscribe; 45; Subscribe; Subscribe
SPM7LX10D9W064814: 19 May 2014; Subscribe; 7; Subscribe; Subscribe
SPM7LX10D9W064781: 14 May 2014; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W064703: 05 May 2014; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W064625: 25 Apr 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064611: 24 Apr 2014; Subscribe; 66; Subscribe; Subscribe
SPM7LX10D9W064604: 23 Apr 2014; Subscribe; 3401; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5305-00-709-8517 October 2020

Criticality and Quality

Critical Item Code:
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 5305-00-709-8517

Related Documents 5305-00-709-8517 5+ Documents (More...)

Restrictions 5305-00-709-8517

Import and Export 5305-00-709-8517

End Users 5305-00-709-8517

Approved Sources 5305-00-709-8517

Datasheet 5305-00-709-8517

Weapon Systems (WSDC) 5305-00-709-8517

DLA Procurement Analysis 5305-00-709-8517

Management Data 5305-00-709-8517

Army

Air Force

Navy

Marine Corps

Similar Supply Items to 5305-00-709-8517

Freight Information 5305-00-709-8517

Packaging Data 5305-00-709-8517

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 5305-00-709-8517 Most Recent 64 Records

Contracting Technical Data File (CTDF) 5305-00-709-8517 October 2020

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
