5305-00-651-2686

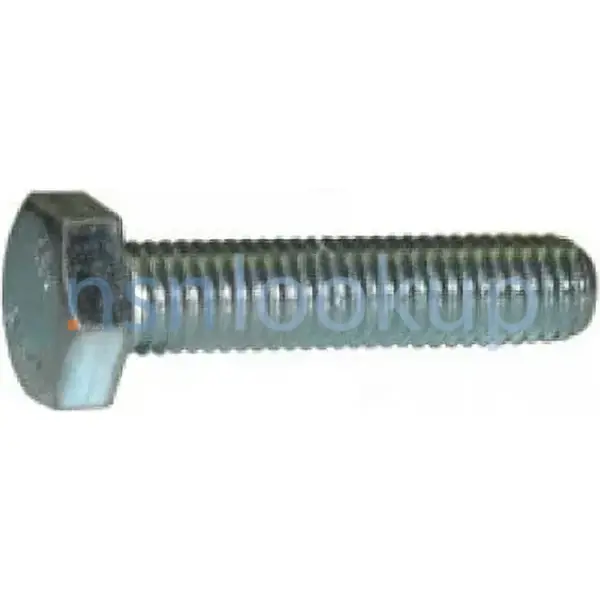

Hexagon Head Cap Screw
5305006512686 006512686 0S1597 0S-1597 036-9823 S1597
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
July 2025
17
Marketplace 5305-00-651-2686
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-651-2686 5+ Documents (More...)
S1597 SCREW 300 EA NS Request Quotation 0S1597 BOLT 413 EA NS Request Quotation Updated Every Day 5305
-00-651-2686 RQST NE Updated Every Day 5305-00-651-2686 RQST Updated Every Day 5305-00-651-2686 RQST
United States (US) 4. 2810-00-036-9823 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Related Documents 2810-00-036-9823
/fsg-30/fsc-3040/tr
3040-27-036-9823 RQST NE Restrictions RQST NE Updated Every Day 3040-27-036-9823 RQST Updated Every
3040-27-036-9823 4+ Documents ( More... ) https/ https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00
Day 5340-01-036-9823 RQST NE Restrictions 5340-01-036-9823 DEMIL: B | DEMILI : | https//www.nsnlookup.com
/fsg-30/fsc-3040/tr 3040-27-036-9823 RQST NE Updated Every Day 3040-27-036-9823 RQST Updated Every Day
web browser . 2510-99-835-4280Window Glaz Channel2510998354280 998354280 S1680 790008-19 790009-16 S1597
enable JavaScript in your web browser . 5840-99-782-5559Frequency Converter5840997825559 997825559 S1597
Restrictions 5305-00-651-2686
5305-00-651-2686 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
