Premium Information is available for this item - Upgrade for $1 a day
5305-00-638-8920

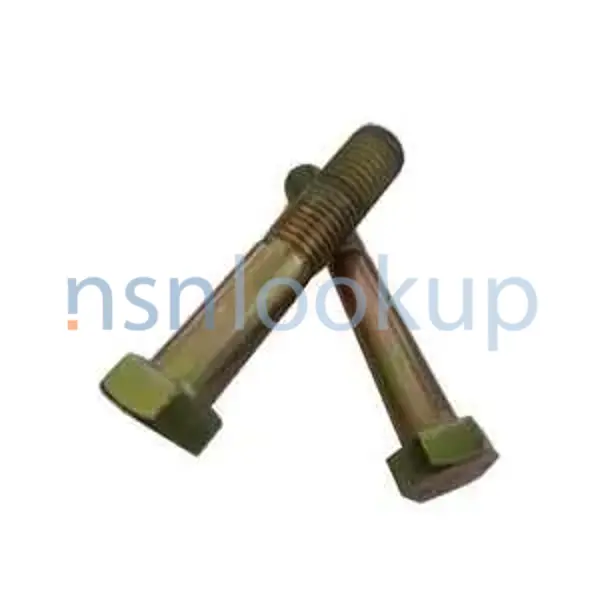

Hexagon Head Cap Screw
5305006388920 006388920 ASME B18.2.1 018-1622-12-0 454907 545-0370-01-0 FIND 9 413-636 306-40021 AES01C375B25AW9A91 1816HX1 300836 B1821BH038C225N MS90728-67 53056388920 10082557
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
84
84
NATO Data Quality
Marketplace 5305-00-638-8920
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
B1821BH038C225N SCREW 100 HD NS
1816HX1 SCREW 30 HD NS
MS90728-67 SCREW 144 HD NS
454907 SCREW 59 HD NS
MS90728-67 SCREW 7 HD NS
MS90728-67 SCREW,CAP,HEXAGON HEAD 1 HD NS
5305-00-638-8920 SCREW,CAP,HEXAGON HEAD 2 HD NS
B1821BH038C225N SCREW,CAP,HEXAGON HEAD 1000 HD NS
Updated Every Day 5305-00-638-8920 RQST NE
Updated Every Day 5305-00-638-8920 RQST
Updated Every Day 5305-00-638-8920 RQST NE
Related Documents 5305-00-638-8920 5+ Documents (More...)
ASME B18.2.1 018-1622-12-0 454907 545-0370-01-0 FIND 9 413-636 306-40021 AES01C375B25AW9A91 300836 B1821BH038C225N
1816HX1 MS90728-67 53056388920 10082557 An externally threaded fastener designed for insertion into
MS90728-67 SCREW,CAP,HEXAGON HEAD 830 HD NS Request Quotation Subscribe to View Vendor Details... 5305
1816HX1 MS90728-67 53056388920 10082557 An externally threaded fastener designed for insertion into
MS90728-67 SCREW,CAP,HEXAGON HEAD 830 HD NS Request Quotation Subscribe to View Vendor Details... 5305
MS90728-67 SCREW,CAP,HEXAGON HEAD 8 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 230 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 230 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 230 EA NS Request Quotation Subscribe to View Vendor Details...
B1821BH038C225N SCREW,CAP,HEXAGON HEAD 29 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 230 EA NS Request Quotation Subscribe to View Vendor Details...
B1821BH038C225N SCREW,CAP,HEXAGON HEAD 29 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 230 EA NS Request Quotation Subscribe to View Vendor Details...
B1821BH038C225N SCREW,CAP,HEXAGON HEAD 29 EA NS Request Quotation Subscribe to View Vendor Details...
MS90728-67 SCREW,CAP,HEXAGON HEAD 230 EA NS Request Quotation Subscribe to View Vendor Details...
B1821BH038C225N SCREW,CAP,HEXAGON HEAD 29 EA NS Request Quotation Subscribe to View Vendor Details...
a day Upgrade your Account Upgrade 5305-01-057-0334Hexagon Head Cap Screw5305010570334 010570334 454907
www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-057-0334 Hexagon Head Cap Screw 5305010570334,454907 454907
Hexagon Head Cap Screw 5305006388920, Upgrade 5305-00-638-8920Hexagon Head Cap Screw5305006388920
www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-057-0334 Hexagon Head Cap Screw 5305010570334,454907 454907
Hexagon Head Cap Screw 5305006388920, Upgrade 5305-00-638-8920Hexagon Head Cap Screw5305006388920
Restrictions 5305-00-638-8920
5305-00-638-8920 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-638-8920
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-638-8920
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTCLBFBDAZ
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G070)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKEJVHSHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Slovenia (WL01)
- Effective Date:
- 1 Nov 2008
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Oct 1996
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1997
Approved Sources 5305-00-638-8920
- Part Number
- Manufacturer
- Status
- AES01C375B25AW9A91
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Primary Buy
- Primary Buy
- ASME B18.2.1
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1816HX1
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 300836
- H0G87 - Wiba Zevenaar B.V. (Active)
- Secondary Buy
- Secondary Buy
- B1821BH038C225N
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305006388920
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90728-67
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 53056388920
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1816HX1
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10082557
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 018-1622-12-0
- 26840 - Hale Products, Inc. (Active)
- Advisory Reference
- Advisory Reference
- 454907
- 80195 - Ed Etnyre & Co (Active)
- Advisory Reference
- Advisory Reference
- 545-0370-01-0 FIND 9
- 26840 - Hale Products, Inc. (Active)
- Advisory Reference
- Advisory Reference
- 413-636
- 10988 - Cnh Industrial America Llc (Active)
- Advisory Reference
- Advisory Reference
- 306-40021
- 9F512 - Parker-Hannifin Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-638-8920
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Thread Series Designator [THSD]
- Unc
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.000 Inches Minimum And
- Thread Length [AASA]
- 1.188 Inches Maximum
- Fastener Length [AASB]
- 2.156 Inches Minimum And
- Fastener Length [AASB]
- 2.250 Inches Maximum
- Material [MATT]
- Steel Overall
- Material Document And Classification [MDCL]
- Sae J429 Grade 8 Assn Std Single Material Response Or
- Material Document And Classification [MDCL]
- Astm A354 Grade Bd Assn Std Single Material Response Overall
- Surface Treatment [SFTT]
- Zinc And
- Surface Treatment [SFTT]
- Chromate Overall
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum And
- Hardness Rating [CQFM]
- 38.0 Rockwell C Maximum Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Head Style [AASK]
- Hexagon
- Head Height [AASU]
- 0.226 Inches Minimum And
- Head Height [AASU]
- 0.243 Inches Maximum
- Width Between Flats [AATB]
- 0.551 Inches Minimum And
- Width Between Flats [AATB]
- 0.562 Inches Maximum
- Surface Finish [CSYM]
- 63.0 Microinches Threads
- End Item Identification [AGAV]
- Mrap-Rg-33
Weapon Systems (WSDC) 5305-00-638-8920
DLA Procurement Analysis 5305-00-638-8920
- Last Stock Position:
- 170500 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-638-8920
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Dec 2021
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- Defense Logistics Agency (DS)
- HD
- Subscribe
- HD
- Oct 2020
- Defense Logistics Agency (DS)
- HD
- Subscribe
- HD
- Oct 2019
- Department of the Air Force (DF)
- HD
- Subscribe
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5305-00-022-7537
- 0
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5305-00-022-7801
- 0
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 5305-00-725-2319
- 4
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 6
- Critical Repair Part to a Non-Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Coast Guard
- Inventory Activity:
- T
- Serial Number Control:
- 2
- Material Control:
- 0
- Reserved
NATO Stock Numbers Related to 5305-00-638-8920
5305-23-110-7871 5305-15-072-2385 5305-32-080-7488 5305-15-058-0111 5305-15-005-3078 5305-15-007-8618 5305-15-004-1506 5305-32-083-8831 5305-99-404-5225 5305-15-072-1910 5305-21-614-1302 5305-12-182-3224 5305-21-866-4147 5305-33-003-4049 5305-12-387-7596 5305-12-386-5375 5305-22-625-5152 5305-72-000-0039
Freight Information 5305-00-638-8920
5305-00-638-8920 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-638-8920 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-638-8920 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-638-8920 is not classified as a special type of cargo when transported by water. 5305-00-638-8920 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-638-8920
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-638-8920 3 Records
Contracting Technical Data File (CTDF) 5305-00-638-8920 October 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
