5305-00-447-6532
Machine Screw
5305004476532 004476532 90744 MS9555-07
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
November 2023
13
Marketplace 5305-00-447-6532
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-447-6532 5+ Documents (More...)
MS9555-07 SCREW,MACHINE 99 EA NS Request Quotation Subscribe to View Vendor Details...
MS9555-07 SCREW,MACHINE 6 EA NS Request Quotation Subscribe to View Vendor Details...
/www.nsnlookup.com /fsg-31/fsc-3110/us 3110-00-100-5832 Tapered Roller Bearing 3110001005832 90381-90744
-5865/uk 5865-99-702-4015 Module Assembly 5865997024015 997024015 BUY NE FedMall Updated Every Day 90744
/90334 809585DPC25 90334-9-10 90334X1S9033490744Y4S90744 335311 90744-9-10 90334X1S9033490 A cylindrical
vendors Request FedMall Updated Every 15 Minutes 3110-00-829-9917 BUY NE FedMall Updated Every Day 90744
90744 FE970DV0002 Managed by United Kingdom NSN Created on 18 Jun 1997 Data Last Changed January 2023
for $1 a day Upgrade your Account Upgrade 4920-01-296-1518Test Program Set4920012961518 012961518 90744
/fsg-49/fsc-4920/us 4920-01-143-5558 Patchcard 4920011435558 011435558,57977-47773 57977-477739PCA-90744
United Kingdom NSN Created on 18 Jun 1997 Data Last Changed January 2023 011435558 57977-477739PCA-90744
Restrictions 5305-00-447-6532
5305-00-447-6532 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-447-6532
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-447-6532
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
Approved Sources 5305-00-447-6532
- Part Number
- Manufacturer
- Status
- MS9555-07
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 90744
- 24235 - Williams International Co., L.L.C. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS9555-07
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5305-00-447-6532
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0

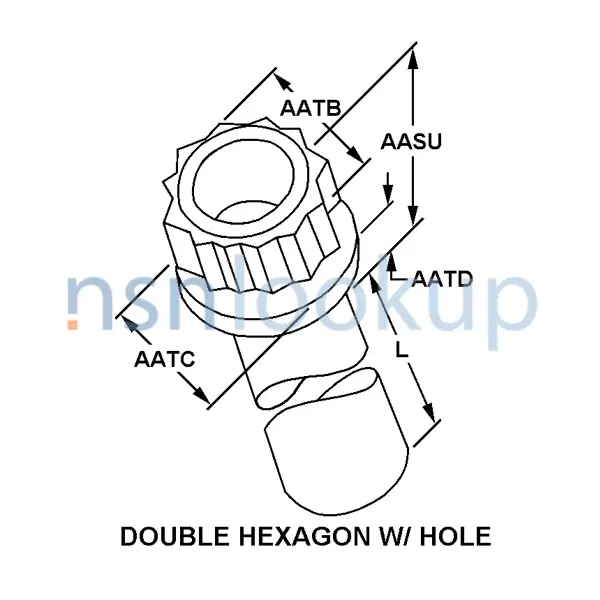

- Extended Washer Diameter [AATC]
- 0.302 Inches Minimum And 0.322 Inches Maximum
- Extended Washer Thickness [AATD]
- 0.030 Inches Minimum
- Fastener Length [AASB]
- 0.552 Inches Minimum And 0.572 Inches Maximum
- Hardness Rating [CQFM]
- 24.0 Rockwell C Minimum And 35.0 Rockwell C Maximum
- Head Height [AASU]
- 0.220 Inches Minimum And 0.240 Inches Maximum
- Head Style [AASK]
- Double Hexagon W/ Hole
- Minimum Tensile Strength [CQBC]
- 130000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.164 Inches
- Screw Material Document And Classification [CYAW]
- Ams 5731 Assn Std Single Material Response
- Screw Material [CYAU]
- Iron Alloy 660
- Thread Quantity Per Inch [CMLP]
- 36
- Thread Series Designator [THSD]
- Unjf
- Width Between Flats [AATB]
- 0.219 Inches Nominal
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.470 Inches Minimum And 0.510 Inches Maximum
Weapon Systems (WSDC) 5305-00-447-6532
DLA Procurement Analysis 5305-00-447-6532
- Last Stock Position:
- 5565 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-447-6532
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-00-447-6532
Freight Information 5305-00-447-6532
5305-00-447-6532 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 013680. A Sub NMFC of X. It has a NMFC Description of ALUM SCREWS. 5305-00-447-6532 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05760 which rates the freight between FCL and LCL. 5305-00-447-6532 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-447-6532 is not classified as a special type of cargo when transported by water. 5305-00-447-6532 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-447-6532
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-447-6532 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E318V3965
- 09 Mar 2018
- Subscribe
- 2770
- Subscribe
- Subscribe
- Subscribe
- SPE5E317V3328
- 27 Jul 2017
- Subscribe
- 1395
- Subscribe
- Subscribe
- Subscribe
- SPE5E317V1704
- 26 Apr 2017
- Subscribe
- 180
- Subscribe
- Subscribe
- Subscribe
- SPM5AZ09D00870437
- 23 Jan 2014
- Subscribe
- 3743
- Subscribe
- Subscribe
- Subscribe
- SPM5AZ09D00870424
- 15 Jul 2013
- Subscribe
- 640
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5305-00-447-6532 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
