5305-00-395-7733
Machine Screw
5305003957733 003957733 953528-136
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
May 2023
8
Marketplace 5305-00-395-7733
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-395-7733 1+ Documents (More...)
(Identification) 1/2 NSN 5305-00-395-7733 (Identification) 2/2 - - 1.
20 EA NS Request Quotation Updated Every Day 5305-00-395-7733 RQST NE Updated Every Day 5305-00-395-
Restrictions 5305-00-395-7733
5305-00-395-7733 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-395-7733
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-395-7733
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- Poland (WP01)
- Effective Date:
- 1 Aug 2006
Approved Sources 5305-00-395-7733
- Part Number
- Manufacturer
- Status
- 953528-136
- Manufacturer
- 06848 - Honeywell International Inc (Active)
- Primary Buy
- Primary Buy
- 953528-136
- 3U752 - Grandeur Fasteners Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5305-00-395-7733
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- Extended Washer Diameter [AATC]
- 0.302 Inches Minimum And 0.322 Inches Maximum
- Extended Washer Thickness [AATD]
- 0.040 Inches Maximum
- Fastener Length [AASB]
- 1.500 Inches Nominal
- Head Hole Configuration Style [CYBG]

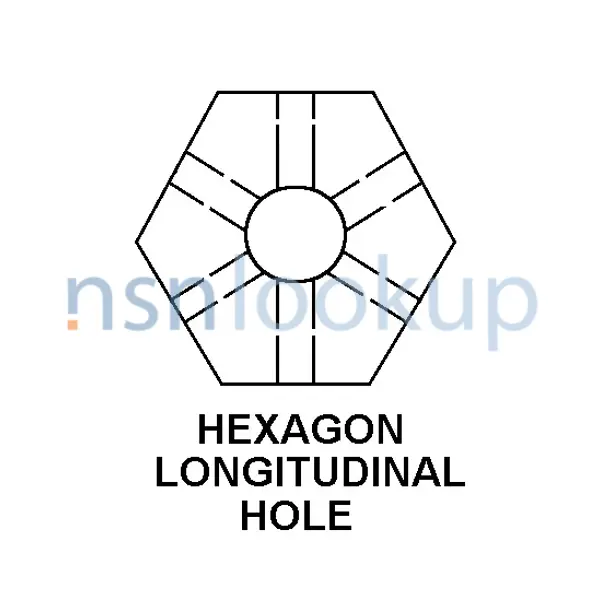

- Hexagon Longitudinal Hole
- Head Height [AASU]
- 0.240 Inches Minimum And 0.260 Inches Maximum
- Head Style [AASK]
- Double Hexagon W/ Hole
- Hole Diameter [AAUB]
- 0.040 Inches Nominal
- Hole Quantity [ASXK]
- 4
- Nominal Thread Diameter [AHYM]
- 0.164 Inches
- Screw Material [CYAU]
- Steel Corrosion Resisting
- Width Between Flats [AATB]
- 0.220 Inches Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 1.000 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unjc
Weapon Systems (WSDC) 5305-00-395-7733
DLA Procurement Analysis 5305-00-395-7733
Management Data 5305-00-395-7733
Similar Supply Items to 5305-00-395-7733
Freight Information 5305-00-395-7733
5305-00-395-7733 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-395-7733 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-395-7733 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5305-00-395-7733 is not classified as a special type of cargo when transported by water. 5305-00-395-7733 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
