5305-00-338-2052
Close Tolerance Screw
5305003382052 003382052 NAS1153E17

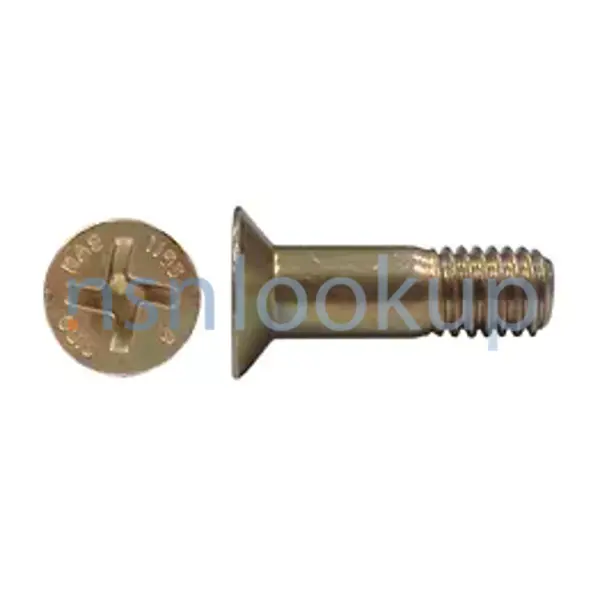

A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. View more Close Tolerance Screw
November 2023
24
Marketplace 5305-00-338-2052
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-338-2052 5+ Documents (More...)
NAS1153E17 SCREW,CLOSE TOLERANCE 52 PG NS Request Quotation Subscribe to View Vendor Details... 5305-
NAS1153E17 SCREW,CLOSE TOLERANCE 3 PG NS Request Quotation Updated Every Day 5305-00-338-2052 RQST NE
NAS1153E17 SCREW,CLOSE TOLERANCE 3 EA NS Request Quotation Updated Every Day 5305-00-449-2484 RQST Updated
States (US) 4. 5305-00-449-2484 Marketplace Restrictions Approved Sources Datasheet Management NAS1153E17
Restrictions 5305-00-338-2052
5305-00-338-2052 is a Close Tolerance Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-338-2052
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-338-2052
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Oct 2007
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- South Africa (ZD01)
- Effective Date:
- 1 May 2013
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Dec 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5305-00-338-2052
- Part Number
- Manufacturer
- Status
- NAS1153E17
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-00-338-2052
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 1.323 Inches Minimum And 1.353 Inches Maximum
- Grip Diameter [AAUR]
- 0.1885 Inches Minimum And 0.1895 Inches Maximum
- Grip Length [ANEE]
- 0.052 Inches Minimum And 0.072 Inches Maximum
- Head Diameter [AASL]
- 0.328 Inches Minimum And 0.385 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Material [MATT]
- Iron Alloy 660 Overall
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Offset Cruciform (Torque Set)
- Material Document And Classification [MDCL]
- Ams 5737 Assn Std Single Material Response Overall
- Specification/Standard Data [ZZZK]
- 80205-Nas1153 Professional/Industrial Association Standard
- Surface Finish [CSYM]
- 32.0 Microinches Grip
- Surface Finish [CSYM]
- 32.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.251 Inches Minimum And 0.301 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unjf
Weapon Systems (WSDC) 5305-00-338-2052
DLA Procurement Analysis 5305-00-338-2052
- Last Stock Position:
- 12700 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-338-2052
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-00-338-2052
Freight Information 5305-00-338-2052
5305-00-338-2052 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-338-2052 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-338-2052 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-338-2052 is not classified as a special type of cargo when transported by water. 5305-00-338-2052 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
