5305-00-314-3541

Thumbscrew

5305003143541 003143541 S628 4-1EPC49 4-1GPC49 4-1JPC49 4-1KPC49 4-1LPC49 4-1MALT1PC49 4-1NPC49 4-1PALT1PC49 4-1PC49 4-1QPC49 4-1RPC49 4-1SPC49 4-1TPC49 5-1AALT1PC49 5-1ALT2PC49 5-2ALT1PC49 5-2APC49 5-2BALT1PC49 5-2CPC49 5-2DPC49 4-1BPC49 4-1CALT1PC49 4-1DPC49 5-3GPC49

An externally threaded fastener whose threaded portion is of one nominal diameter. It may have an unthreaded portion with a diameter less than, equal to, or greater than the diameter of the threaded portion. It has either a vertically flattened, circular knurled, or wing type head, all of which are designed for rotation by the thumb and fingers. For items having wrenching facilities such as socket recess, multiple spline or slot heads, use SCREW (as modified) or BOLT (as modified). View more Thumbscrew

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
23

NATO Data Quality

AASK Style C66 for 5305-00-314-3541 1/3 — NSN 5305-00-314-3541 (Identification) 1/3

ABQJ Style F18 for 5305-00-314-3541 2/3 — NSN 5305-00-314-3541 (Identification) 2/3

CRHC Style E17 for 5305-00-314-3541 3/3 — NSN 5305-00-314-3541 (Identification) 3/3

Marketplace 5305-00-314-3541

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

S628 THUMBSCREW 237 EA NS

Updated Every Day

5305-00-314-3541 RQST NE

Updated Every Day

5305-00-314-3541 RQST

Updated Every Day

5305-00-314-3541 RQST NE

Restrictions 5305-00-314-3541

5305-00-314-3541 is a Thumbscrew that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5305-00-314-3541

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-314-3541

US Navy (N9BZ)
Effective Date:: 1 Jun 2005
Former MOE Rule:: N9ZD
Supplementary Collaborators:: HDHX; AMC 3 AMSC R IMC Z IMCACTY GH

Spain (YB01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 5305-00-314-3541

Part Number
Manufacturer
Status
S628: 47496 - The Dewey Electronics Corporation (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
4-1EPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1GPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1JPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1KPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1LPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1MALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1NPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1PALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1QPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1RPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1SPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1TPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-1AALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-1ALT2PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2ALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2APC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2BALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2CPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2DPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1BPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1CALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
4-1DPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3GPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3JPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3KPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3MPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3NPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
94PC83: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
99PC83: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2EALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2FPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2GALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2HPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2JPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2KPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2LPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2MPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2NPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2PPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2QPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2RALT1PC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2SPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2TPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2UPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2VPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2WPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2XPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2YPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-2ZPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3BPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3CPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3DPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3EPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5-3FPC49: 47496 - The Dewey Electronics Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
A026S65-902PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AG88S6505-848551PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AGC5S6505-465002AGC5S6505-465002: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AGC7S6505-519287PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
A025S65-902PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AV7S65-911PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AVG1S65-904PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AVG6S65-905ALT1PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AM57S65-933PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AN1S65-932PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AR5S65-54PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AS11S65-940ALT1PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AS12S6505-29ALT1PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
BB61S65-967PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
BDE1S6505-63PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
CA68S6505-53PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
CB1S6505-68PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
CL119S6505-281248PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
CL49S65-1154ALT1: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AVP10S65-1019ALT1PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AVP10S65-1033PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
AVP10S65-904PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
BB35S6505-553404PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
BB38S6505-458449PC49: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6

Datasheet 5305-00-314-3541

Characteristic
Specifications
FIIG: A003B0
Fastener Length [AASB]: 0.683 Inches Minimum And 0.693 Inches Maximum
Head Diameter [AASL]: 0.500 Inches Nominal
Head Height [AASU]: 0.250 Inches Nominal
Head Style [AASK]: Knurled No. 1

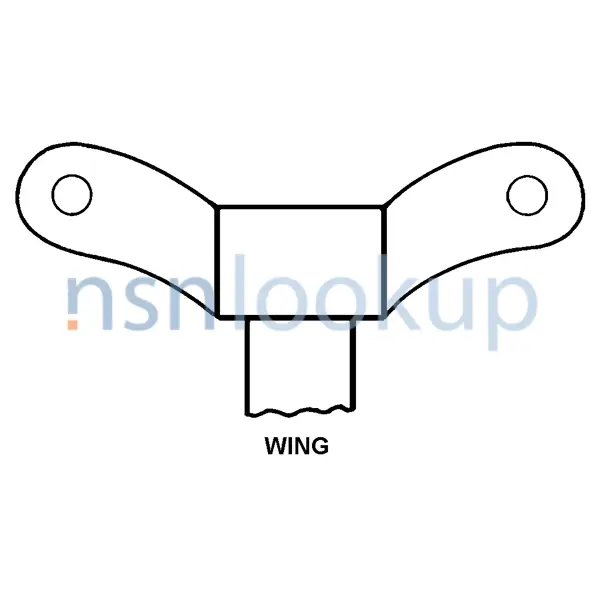

Hole Configuration Style [CRHC]: Wing
