5305-00-269-3240

Hexagon Head Cap Screw

5305002693240 002693240 FF-S-85 9427708 W-11259-3 334 10-305 303837 B1821BH038F150N 907822 18257-183 MS35298-64 MS90727-64 MS90726-64 456720130508 5305PL0817226 5305006255742

An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
July 2025

NATO Update Count
53

NATO Data Quality

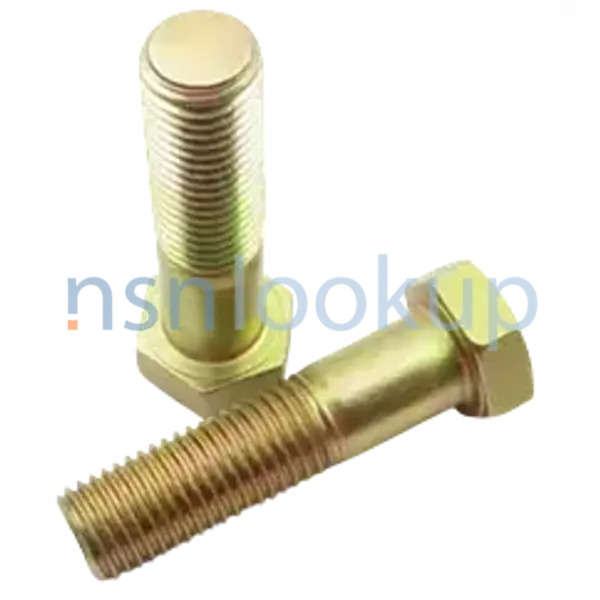

5305-00-269-3240 SCREW,CAP,HEXAGON HEAD 5305002693240 002693240 1/2 — 5305-00-269-3240 Photo 1/2

AASK Style C1 for 5305-00-269-3240 2/2 — NSN 5305-00-269-3240 (Identification) 2/2

Marketplace 5305-00-269-3240

Need Help?
Request a Quotation from participating marketplace vendors

Global Test Supply

334 PIECAL 334 Milliamp Loop Calibrator STK NE $882.55 Distributor Buy Now

Subscribe to View Vendor Details...

MS90726-64 SCREW,CAP,HEXAGON HEAD 7 HD NS

Subscribe to View Vendor Details...

10-305 SCREW,CAP,HEXAGON HEAD 100 HD NS

Subscribe to View Vendor Details...

334 SCREW,CAP,HEXAGON HEAD 1 HD NS

Subscribe to View Vendor Details...

33-4 SCREW,CAP,HEXAGON HEAD 10 HD NS

334 SCREW,CAP,HEXAGON HEAD 46 HD NS

Subscribe to View Vendor Details...

MS90726-64 SCREW,CAP,HEXAGON HEAD 15 HD NS

Subscribe to View Vendor Details...

10-305 SCREW 3 HD NS

MS90726-64 SCREW 15 HD NS

MS90727-64 SCREW 4 HD NS

MS90727-64 SCREW 16 HD NS

Subscribe to View Vendor Details...

M151DEC7834P SCREW,CAP,HEXAGON HEAD RQST NS

Subscribe to View Vendor Details...

334 SCREW,CAP,HEXAGON HEAD 150 HD NS

B1821BH038F150N SCREW,CAP,HEXAGON HEAD 100 HD NS

Subscribe to View Vendor Details...

B1821BH038F150N SCREW,CAP,HEXAGON HEAD 200 HD NS

Updated Every Day

9427708 RQST NE

Updated Every Day

5305-00-269-3240 RQST NE

Updated Every Day

5305-00-269-3240 RQST

Updated Every Day

5305-00-269-3240 RQST NE

Restrictions 5305-00-269-3240

5305-00-269-3240 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5305-00-269-3240

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5305-00-269-3240

US Army (A919)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A187
Supplementary Receivers:: AJCTCLBFBDAZ; AMC 1 AMSC G IMC Z IMCACTY CD

US Coast Guard (C918)
Effective Date:: 1 Apr 2006
Former MOE Rule:: C004; AMC 1 AMSC G

US Air Force (FXGI)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXKZ; AMC 1 AMSC G IMC Z IMCACTY SX

NASA (G06X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G06I; AMC 1 AMSC G

NASA (G37X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G37I; AMC 1 AMSC G

NASA (G42X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G42I; AMC 1 AMSC G

NASA (G76X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G76I; AMC 1 AMSC G

NASA (G77X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G77I; AMC 1 AMSC G

NASA (G81X)
Effective Date:: 1 Apr 2006
Former MOE Rule:: G81I; AMC 1 AMSC G

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G930)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC47)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9ZD
Supplementary Collaborators:: GTKEJFJBHXHD; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Hungary (WH01)
Effective Date:: 1 Sep 2013

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Poland (WP01)
Effective Date:: 1 Jul 2006

MOE Rule:: X002
Effective Date:: 1 Apr 1991

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5305-00-269-3240

Part Number
Manufacturer
Status
10-305: 96289 - Kut Kwick Corp (Active); Primary Buy; RNCC 3 RNVC 2 DAC 6
B1821BH038F150N: 05047 - The American Society Of Mechanical (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
FF-S-85: 81348 - Federal Specifications Promulgated (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
303837: H0G87 - Wiba Zevenaar B.V. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
B1821BH038F150N: 51792 - Apollo Aerospace Components Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
907822: A274N - Scandinavian Manufacturing Scama Ab (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 3
18257-183: D2638 - Eme Elektro-Metall Export Gmbh (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
18257-183: 21439 - Curtiss-Wright Flow Control Service, (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS35298-64: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
5305002693240: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
5305006255742: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
B1821BH038F150N: 80204 - American National Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
MS90727-64: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
MS90726-64: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
456720130508: 0000V - Ncb Hungary (Honvedsegi Egyseges (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305PL0817226: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305002693240: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5305006255742: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
9427708: 24617 - General Motors Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 1
W-11259-3: 28835 - Hobart Bros Co (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
334: D9182 - Zf Industrieantriebe Witten Gmbh (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 5305-00-269-3240

Characteristic
Specifications
FIIG: A003B0
End Item Identification [AGAV]: Mrap Rg-33 Auv
Fastener Length [AASB]: 1.500 Inches Nominal
Hardness Rating [CQFM]: 32.0 Rockwell C Minimum And 38.0 Rockwell C Maximum Overall
Head Height [AASU]: 0.226 Inches Minimum And 0.243 Inches Maximum
Head Style [AASK]: Hexagon
Material Document And Classification [MDCL]: Sae J429 Gr8 Assn Std Single Material Response Overall
Material [MATT]: Steel Overall
Minimum Tensile Strength [CQBC]: 150000 Pounds Per Square Inch
Nominal Thread Diameter [AHYM]: 0.375 Inches
Nondefinitive Spec/Std Data [ZZZT]: 2 Type And Y10p Style And 8 Grade
Width Between Flats [AATB]: 0.551 Inches Minimum And 0.562 Inches Maximum
Surface Treatment Document And Classification [STDC]: Astm B633 Ty Sc 3 Assn Std Single Treatment Response Overall
Surface Treatment [SFTT]: Zinc And Chromate Overall
Thread Class [AAJD]: 2A
Thread Direction [AAJF]: Right-Hand
Thread Length [AASA]: 1.000 Inches Minimum And 1.188 Inches Maximum
Thread Quantity Per Inch [CMLP]: 24
Thread Series Designator [THSD]: Unf
