5305-00-267-8957

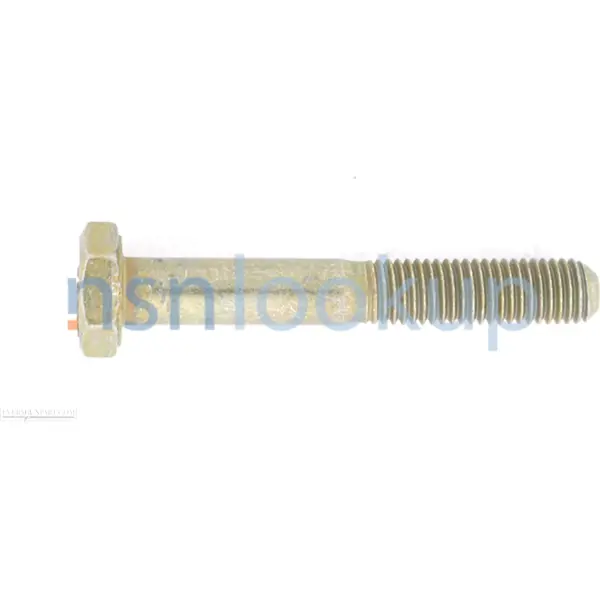

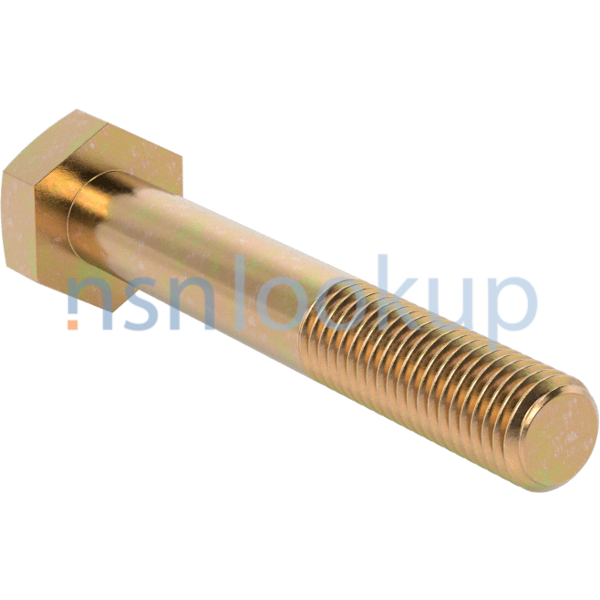

Hexagon Head Cap Screw
5305002678957 002678957 FF-S-85 MS90726-13 60270 854348-00 18C428 B1821BH025F175N MS90727-13 10493817
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
68
68
NATO Data Quality
Product Information 5305-00-267-8957

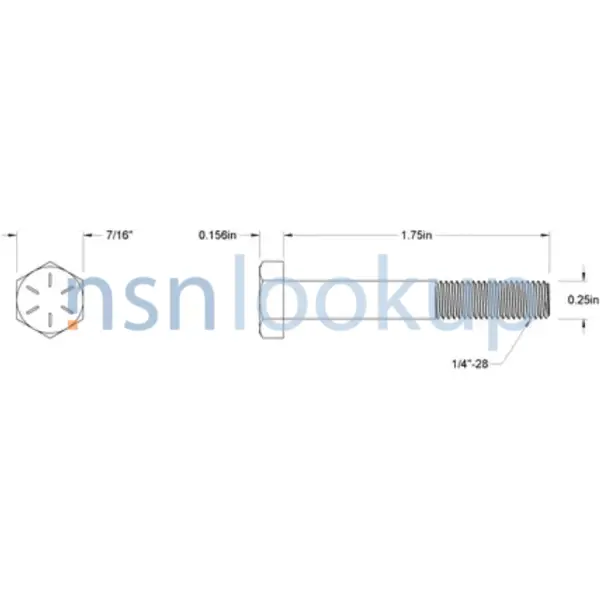

B1821 Series Fine Thread - Undrilled Head - 1/4" 28-UNF-2A Fine Thread
Marketplace 5305-00-267-8957
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
FF-S-85 SCREW,CAP,HEXAGON HEAD 37 HD NS
60270 SCREW,CAP,HEXAGON HEAD 6 HD NS
B1821BH025F175N SCREW,CAP,HEXAGON HEAD 8 HD NS
MS90727-13 SCREW,CAP,HEXAGON HEAD 2 HD NS
FFS85 SCREW,CAP,HEXAGON HEAD 2 HD NS
5305-00-267-8957 SCREW,CAP,HEXAGON HEAD 2 HD NS
18C428 SCREW,CAP,HEXAGON HEAD 6 HD NS
Updated Every Day 5305-00-267-8957 RQST NE
Updated Every Day 5305-00-267-8957 RQST
Updated Every Day 5305-00-267-8957 RQST NE
Related Documents 5305-00-267-8957 5+ Documents (More...)
FF-S-85 MS90726-13 60270 MS90727-13 854348-00 18C428 B1821BH025F175N 10493817 An externally threaded
MS90727-13 SCREW,CAP,HEXAGON HEAD 100 HD NS Request Quotation Subscribe to View Vendor Details... 5305
FF-S-85 SCREW,CAP,HEXAGON HEAD 37 HD NS Request Quotation 60270 SCREW,CAP,HEXAGON HEAD 6 HD NS Request
MS90727-13 SCREW,CAP,HEXAGON HEAD 100 HD NS Request Quotation Subscribe to View Vendor Details... 5305
FF-S-85 SCREW,CAP,HEXAGON HEAD 37 HD NS Request Quotation 60270 SCREW,CAP,HEXAGON HEAD 6 HD NS Request
uk 6115-99-726-6196 /fsg-61/fsc-6115/uk 6115-99 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-267-8957
Hexagon Head Cap Screw 5305002678957 5305-00-267-8957Hexagon Head Cap Screw5305002678957 002678957
FF-S-85 MS90726-13 60270 MS90727-13 854348 Quotation 60270 SCREW,CAP,HEXAGON HEAD 6 HD NS Request https
Hexagon Head Cap Screw 5305002678957 5305-00-267-8957Hexagon Head Cap Screw5305002678957 002678957
FF-S-85 MS90726-13 60270 MS90727-13 854348 Quotation 60270 SCREW,CAP,HEXAGON HEAD 6 HD NS Request https
FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request Quotation FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
MS90727-13 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation 60270 SCREW,CAP,HEXAGON HEAD 6 EA NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
MS90727-13 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation 60270 SCREW,CAP,HEXAGON HEAD 6 EA NS Request
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details... 18C428 SCREW
Quotation 60270 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation Subscribe to View Vendor Details...
FFS85 SCREW,CAP,HEXAGON HEAD 1 EA NS Request Quotation Subscribe to View Vendor Details... 18C428 SCREW
Quotation 60270 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation Subscribe to View Vendor Details...
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request
18C428 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 37 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request
18C428 SCREW,CAP,HEXAGON HEAD 6 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 37 EA NS Request
Restrictions 5305-00-267-8957
5305-00-267-8957 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-267-8957
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-267-8957
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTBFBDAZ
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G180)
- Effective Date:
- 1 Apr 1991
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Feb 1999
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Feb 1994
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2003
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5305-00-267-8957
- Part Number
- Manufacturer
- Status
- B1821BH025F175N
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Primary Buy
- Primary Buy
- FF-S-85
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 854348-00
- 32345 - Defense Reduction Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 18C428
- 12603 - Clark Equipment Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- B1821BH025F175N
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90727-13
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10493817
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- MS90726-13
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 60270
- 99688 - Bergstrom Inc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-267-8957
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.688 Inches Minimum And 1.750 Inches Maximum
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.150 Inches Minimum And 0.163 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae J429 Assn Std All Material Responses Overall
- Material [MATT]
- Steel Comp 1013 Overall Or Steel Comp 1015 Overall Or Steel Comp 1016 Overall Or Steel Comp 1017 Overall Or Steel Comp 1018 Overall Or Steel Comp 1019 Overall Or Steel Comp 1020 Overall Or Steel Comp 1021 Overall Or Steel Comp 1022 Overall Or Steel Comp 1023 Overall Or Steel Comp 1524 Overall Or Steel Comp 1025 Overall Or Steel Comp 1026 Overall Or Steel Comp 1527 Overall Or Steel Comp 1029 Overall Or Steel Comp 1030 Overall Or Steel Comp 1033 Overall Or Steel Comp 1034 Overall Or Steel Comp 1035 Overall Or Steel Comp 1536 Overall Or Steel Comp 1037 Overall Or Steel Comp 1038 Overall Or Steel Comp 1039 Overall Or Steel Comp 1040 Overall Or Steel Comp 1541 Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 10P Style And 8 Grade
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.438 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.750 Inches Minimum And 0.938 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5305-00-267-8957
DLA Procurement Analysis 5305-00-267-8957
- Last Stock Position:
- 33300 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-267-8957
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Marine Corps (DM)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- Defense Logistics Agency (DS)
- HD
- Subscribe
- 1
- HD
- Oct 2020
- Defense Logistics Agency (DS)
- HD
- Subscribe
- 1
- HD
- Oct 2019
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5305-00-267-8979
- 0
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5305-00-267-8957
5305-23-110-7871 5305-15-072-2385 5305-32-080-7488 5305-15-058-0111 5305-15-005-3078 5305-15-007-8618 5305-15-004-1506 5305-32-083-8831 5305-99-404-5225 5305-15-072-1910 5305-21-614-1302 5305-12-182-3224 5305-21-866-4147 5305-33-003-4049 5305-12-387-7596 5305-12-386-5375 5305-22-625-5152 5305-72-000-0039
Freight Information 5305-00-267-8957
5305-00-267-8957 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-267-8957 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-267-8957 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-267-8957 is not classified as a special type of cargo when transported by water. 5305-00-267-8957 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-267-8957
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5305-00-267-8957 October 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
