5305-00-267-8950

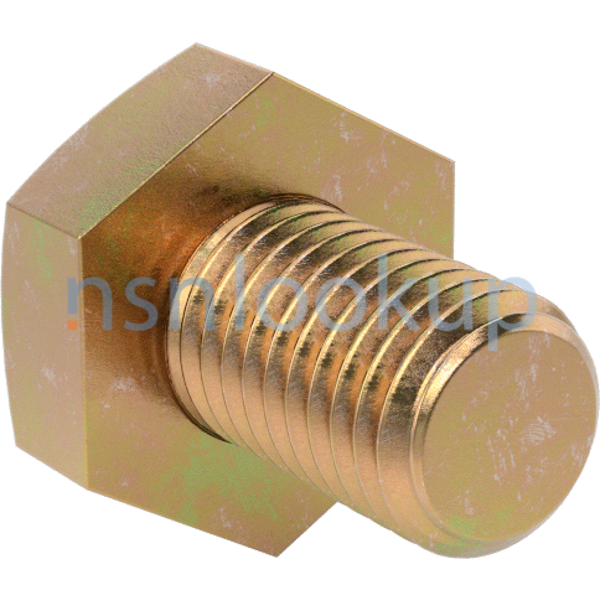

Hexagon Head Cap Screw
5305002678950 002678950 FF-S-85 188609 AES01F250378AW9A91 MS90727-1 XX002-0961 18C406 855352-00 B1821BH025F038N MS90726-1 5305PL0939555
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
September 2025
September 2025
NATO Update Count
69
69
NATO Data Quality
Marketplace 5305-00-267-8950
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5305-00-267-8950 RQST NE
Updated Every Day 5305-00-267-8950 RQST
Updated Every Day 5305-00-267-8950 RQST NE
Related Documents 5305-00-267-8950 5+ Documents (More...)
FF-S-85 188609 AES01F250378AW9A91 MS90727-1 XX002-0961 18C406 855352-00 B1821BH025F038N MS90726-1 5305PL0939555
MS90726-1 SCREW,CAP,HEXAGON HEAD 7 EA NS Request Quotation MS90727-1 SCREW,CAP,HEXAGON HEAD 136 EA NS
NS Request Quotation MS90727-1 SCREW,CAP,HEXAGON HEAD 136 EA NS Quotation Updated Every Day 5305-00-
MS90726-1 SCREW,CAP,HEXAGON HEAD 7 EA NS Request Quotation MS90727-1 SCREW,CAP,HEXAGON HEAD 136 EA NS
NS Request Quotation MS90727-1 SCREW,CAP,HEXAGON HEAD 136 EA NS Quotation Updated Every Day 5305-00-
MS90727-1 SCREW,CAP,HEXAGON HEAD 190 EA NS Request Quotation Subscribe to View Vendor Details...
MS90727-1 SCREW,CAP,HEXAGON HEAD 110 EA NS Request Quotation Subscribe to View Vendor Details...
MS90726-1 SCREW,CAP,HEXAGON HEAD 4 EA NS Request Quotation Subscribe to View Vendor Details...
MS90727-1 SCREW,CAP,HEXAGON HEAD 110 EA NS Request Quotation Subscribe to View Vendor Details...
MS90726-1 SCREW,CAP,HEXAGON HEAD 4 EA NS Request Quotation Subscribe to View Vendor Details...
MS90727-1 SCREW,CAP,HEXAGON HEAD 190 EA NS Request Quotation Subscribe to View Vendor Details...
MS90727-1 SCREW,CAP,HEXAGON HEAD 110 EA NS Request Quotation Subscribe to View Vendor Details...
MS90726-1 SCREW,CAP,HEXAGON HEAD 4 EA NS Request Quotation Subscribe to View Vendor Details...
MS90727-1 SCREW,CAP,HEXAGON HEAD 110 EA NS Request Quotation Subscribe to View Vendor Details...
MS90726-1 SCREW,CAP,HEXAGON HEAD 4 EA NS Request Quotation Subscribe to View Vendor Details...
MS90726-1 SCREW,CAP,HEXAGON HEAD 4 EA NS Request Quotation Subscribe to View Vendor Details... 700081
MS90726-1 SCREW,CAP,HEXAGON HEAD 740 EA NS Request Quotation Subscribe to View Vendor Details...
Hexagon Head Cap Screw 5305002678950, 5305-00-267-8950Hexagon Head Cap Screw5305002678950 002678950
MS90726-1 SCREW,CAP,HEXAGON HEAD 740 EA NS Request Quotation Subscribe to View Vendor Details...
Hexagon Head Cap Screw 5305002678950, 5305-00-267-8950Hexagon Head Cap Screw5305002678950 002678950
$1 a day Upgrade your Account Upgrade 3110-01-595-2489Annular Ball Bearing3110015952489 015952489 188609
to enable JavaScript in your web browser . 5940-15-108 -7875Stud Terminal5940151087875 151087875 188609
Bearing Ball 3110151804120 151804120,188609 188609 how to enable JavaScript in your web browser https
to enable JavaScript in your web browser . 5940-15-108 -7875Stud Terminal5940151087875 151087875 188609
Bearing Ball 3110151804120 151804120,188609 188609 how to enable JavaScript in your web browser https
Restrictions 5305-00-267-8950
5305-00-267-8950 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-267-8950
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-267-8950
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCTCLBF
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEJFHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Dec 2011
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 May 1997
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5305-00-267-8950
- Part Number
- Manufacturer
- Status
- AES01F250378AW9A91
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Primary Buy
- Primary Buy
- B1821BH025F038N
- 05047 - The American Society Of Mechanical (Active)
- Primary Buy
- Primary Buy
- FF-S-85
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- MS90727-1
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- XX002-0961
- H2229 - Rdm Technology B.V. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 18C406
- 12603 - Clark Equipment Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305002678950
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 855352-00
- 32345 - Defense Reduction Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B1821BH025F038N
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90726-1
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305PL0939555
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5305002678950
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 188609
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference

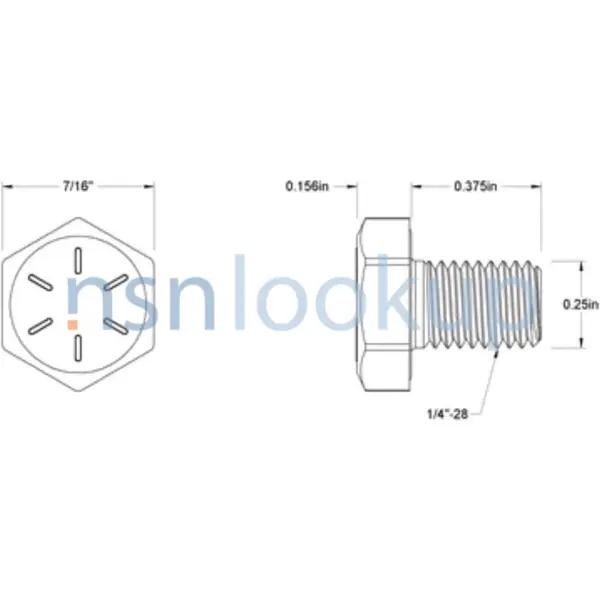

Datasheet 5305-00-267-8950
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.375 Inches Nominal
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.150 Inches Minimum And 0.163 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae J429 Gr 8 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 10P Style And 8 Grade
- Width Between Flats [AATB]
- 0.428 Inches Minimum And 0.438 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.375 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5305-00-267-8950
DLA Procurement Analysis 5305-00-267-8950
- Last Stock Position:
- 1749 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-267-8950
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Apr 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Dec 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5305-00-267-8972
- 0
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- K
- Reserved
- Operational Test:
- No Special Procedures
Similar Supply Items to 5305-00-267-8950
Freight Information 5305-00-267-8950
5305-00-267-8950 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-267-8950 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-267-8950 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-267-8950 is not classified as a special type of cargo when transported by water. 5305-00-267-8950 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-267-8950
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5305-00-267-8950 October 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
