5305-00-225-9092

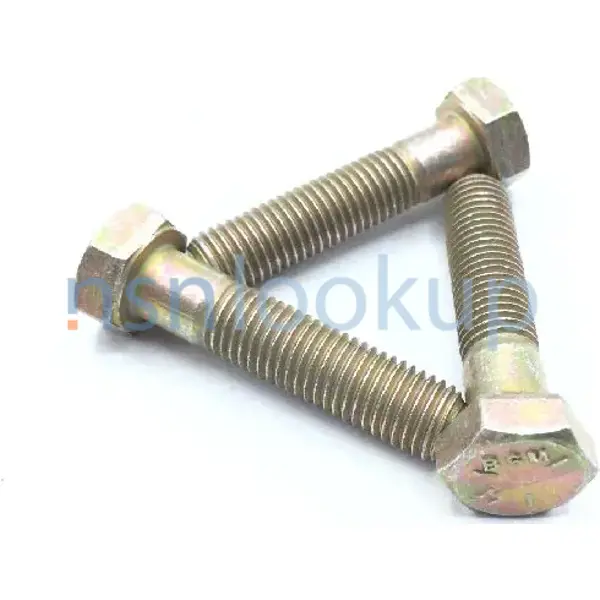

Hexagon Head Cap Screw
5305002259092 002259092 NASM90726 FF-S-85 MS90726-37 MS90726-37G 5305-225-9092
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
July 2025
July 2025
NATO Update Count
52
52
NATO Data Quality
Marketplace 5305-00-225-9092
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Updated Every Day 5305-00-225-9092 RQST NE
Updated Every Day 5305-00-225-9092 RQST
Updated Every Day 5305-00-225-9092 RQST NE
Related Documents 5305-00-225-9092 5+ Documents (More...)
NASM90726 FF-S-85 MS90726-37 MS90726-37G 5305-225-9092 An externally threaded fastener designed for
MS90726-37 SCREW,CAP,HEXAGON HEAD 24 HD NS Request Quotation 5305-00-225-9092 SCREW,CAP,HEXAGON HEAD
( More... ) https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-225-9092 Hexagon Head Cap Screw 5305002259092
MS90726-37 SCREW,CAP,HEXAGON HEAD 24 HD NS Request Quotation 5305-00-225-9092 SCREW,CAP,HEXAGON HEAD
( More... ) https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-225-9092 Hexagon Head Cap Screw 5305002259092
a day Upgrade your Account Upgrade 5305-00-710-4187Hexagon Head Cap Screw5305007104187 007104187 NASM90726
FF-S-85 MS90726-83 215312 An externally threaded fastener designed for insertion into holes in assembled
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-225-9092 Hexagon Head Cap Screw 5305002259092,
FF-S-85 MS90726-83 215312 An externally threaded fastener designed for insertion into holes in assembled
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-225-9092 Hexagon Head Cap Screw 5305002259092,
FF-S-85 MS90726-101 An externally threaded fastener designed for insertion into holes in assembled parts
Hexagon Head Cap Screw 5305002259092, a day Upgrade your Account Upgrade 5305-00-225-9092Hexagon
Head Cap Screw5305002259092 002259092 NASM90726 FF-S-85 MS90726-37 MS90726-37G 5305-225-9092 An externally
Hexagon Head Cap Screw 5305002259092, a day Upgrade your Account Upgrade 5305-00-225-9092Hexagon
Head Cap Screw5305002259092 002259092 NASM90726 FF-S-85 MS90726-37 MS90726-37G 5305-225-9092 An externally
Upgrade your Account Upgrade 5305-00-208-9327Hexagon Head Cap Screw5305002089327 002089327 123605 NASM90726
FFS85 FF-S-85 MS90726-109 1828HX1 100-15S8-4 An externally threaded fastener designed for insertion
SCREW,CAP,HEXAGON HEAD 200 EA NS Request FF-S-85 SCREW,CAP,HEXAGON HEAD 37 EA NS Request Quotation
FFS85 FF-S-85 MS90726-109 1828HX1 100-15S8-4 An externally threaded fastener designed for insertion
SCREW,CAP,HEXAGON HEAD 200 EA NS Request FF-S-85 SCREW,CAP,HEXAGON HEAD 37 EA NS Request Quotation
Upgrade 5305-00-068-0504Hexagon Head Cap Screw5305000680504 000680504 ASME B18.2.1 418179-3 4176118-28 NASM90726
B18.2.1 SCREW,CAP,HEXAGON HEAD 99 HD NS Request Quotation NASM90726 SCREW,CAP,HEXAGON HEAD 200 HD NS
FF-S-85 YE123316 91248A537 HA1683A00 B1821BH0250F050N MS90726-3 MS90727-3 B1821BH025F050N Hexagon Head
B18.2.1 SCREW,CAP,HEXAGON HEAD 99 HD NS Request Quotation NASM90726 SCREW,CAP,HEXAGON HEAD 200 HD NS
FF-S-85 YE123316 91248A537 HA1683A00 B1821BH0250F050N MS90726-3 MS90727-3 B1821BH025F050N Hexagon Head
Restrictions 5305-00-225-9092
5305-00-225-9092 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-225-9092
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-225-9092
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCLBFBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 May 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Feb 2004
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5305-00-225-9092
- Part Number
- Manufacturer
- Status
- NASM90726
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- MS90726-37
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- FF-S-85
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- MS90726-37G
- 0198B - Gestion De Materiales Y Proyectos Sa (Active)
- Secondary Buy
- Secondary Buy
- 5305-225-9092
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305002259092
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90726-37
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305002259092
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 5305-225-9092
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5305-00-225-9092
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.313 Inches Minimum And 1.375 Inches Maximum
- Hardness Rating [CQFM]
- 25.0 Rockwell C Minimum Overall And 34.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.195 Inches Minimum And 0.211 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae J429 Assn Std All Material Responses Overall
- Material [MATT]
- Steel Comp 1013 Overall Or Steel Comp 1015 Overall Or Steel Comp 1016 Overall Or Steel Comp 1017 Overall Or Steel Comp 1018 Overall Or Steel Comp 1019 Overall Or Steel Comp 1020 Overall Or Steel Comp 1021 Overall Or Steel Comp 1022 Overall Or Steel Comp 1023 Overall Or Steel Comp 1524 Overall Or Steel Comp 1025 Overall Or Steel Comp 1026 Overall Or Steel Comp 1527 Overall Or Steel Comp 1029 Overall Or Steel Comp 1030 Overall Or Steel Comp 1033 Overall Or Steel Comp 1034 Overall Or Steel Comp 1035 Overall Or Steel Comp 1536 Overall Or Steel Comp 1037 Overall Or Steel Comp 1038 Overall Or Steel Comp 1039 Overall Or Steel Comp 1040 Overall Or Steel Comp 1541 Overall
- Minimum Tensile Strength [CQBC]
- 120000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.312 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 10P Style And 5 Grade
- Width Between Flats [AATB]
- 0.489 Inches Minimum And 0.500 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 2 Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.875 Inches Minimum And 1.063 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 24
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5305-00-225-9092
DLA Procurement Analysis 5305-00-225-9092
- Last Stock Position:
- 106700 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-225-9092
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2020
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- Oct 2019
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5306-00-012-3783
- 0
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5305-00-225-9092
5305-23-110-7871 5305-15-072-2385 5305-32-080-7488 5305-15-058-0111 5305-15-005-3078 5305-15-007-8618 5305-15-004-1506 5305-32-083-8831 5305-99-404-5225 5305-15-072-1910 5305-21-614-1302 5305-12-182-3224 5305-21-866-4147 5305-33-003-4049 5305-12-387-7596 5305-12-386-5375 5305-22-625-5152 5305-72-000-0039
Freight Information 5305-00-225-9092
5305-00-225-9092 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-225-9092 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-225-9092 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-225-9092 is not classified as a special type of cargo when transported by water. 5305-00-225-9092 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-225-9092
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5305-00-225-9092 October 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
