5305-00-207-0897

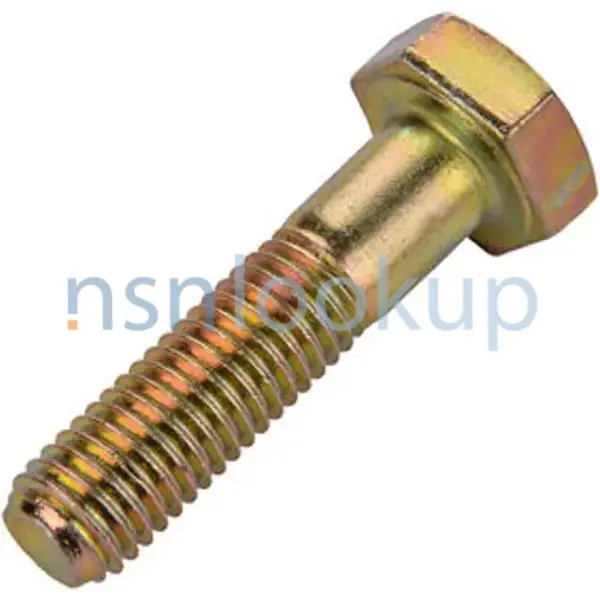

Hexagon Head Cap Screw
5305002070897 002070897 186628 PC186628 MS35301-64
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
January 2023
35
Marketplace 5305-00-207-0897
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-207-0897 4+ Documents (More...)
a day Upgrade your Account Upgrade 1650-00-674-6615Mounting Flange Adapter1650006746615 006746615 186628
ADAPTER,MOUNTING FLANGE 1 EA NS Request Quotation Subscribe to View Vendor Details... 186628 ADAPTER
ADAPTER,MOUNTING FLANGE 1 EA NS Request Quotation Subscribe to View Vendor Details... 186628 ADAPTER
,MOUNTING FLANGE 3 EA NS Request Quotation Subscribe to View Vendor Details... 186628 ADAPTER,MOUNTING
a day Upgrade your Account Upgrade 1650-00-674-6615Mounting Flange Adapter1650006746615 006746615 186628
ADAPTER,MOUNTING FLANGE 1 EA NS Request Quotation Subscribe to View Vendor Details... 186628 ADAPTER
Restrictions 5305-00-207-0897
5305-00-207-0897 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-207-0897
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-207-0897
- Brazil (YA01)
- Effective Date:
- 1 Jun 2010
- Spain (YB01)
- Effective Date:
- 15 Mar 1992
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Malaysia (YW01)
- Effective Date:
- 1 Jan 1998
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5305-00-207-0897
- Part Number
- Manufacturer
- Status
- 186628
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- 186628
- 81381 - Stewart & Stevenson Power Products (Active)
- Secondary Buy
- Secondary Buy
- PC186628
- C7432 - Power Components (Deutschland) Gmbh (Obsolete)
- Secondary Buy
- Secondary Buy
- MS35301-64
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5305-00-207-0897
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 1.500 Inches Nominal
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.226 Inches Minimum And 0.243 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Width Between Flats [AATB]
- 0.551 Inches Minimum And 0.562 Inches Maximum
- Specification/Standard Data [ZZZK]
- 96906-Ms35301/Canceled/ Government Standard
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 1.000 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 16
- Thread Series Designator [THSD]
- Unc
Management Data 5305-00-207-0897
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 1975
- US Marine Corps (DM)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- I
- Z
- Discontinued-Use 5305-00-725-2317
- Z
- US Marine Corps (DM)
- I
- 4
- Reversal Of Phrase Code A 5305-00-415-2855
- 4
NATO Stock Numbers Related to 5305-00-207-0897
Freight Information 5305-00-207-0897
5305-00-207-0897 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-207-0897 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5305-00-207-0897 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-207-0897 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-207-0897 is not classified as a special type of cargo when transported by water. 5305-00-207-0897 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
