5305-00-182-5598

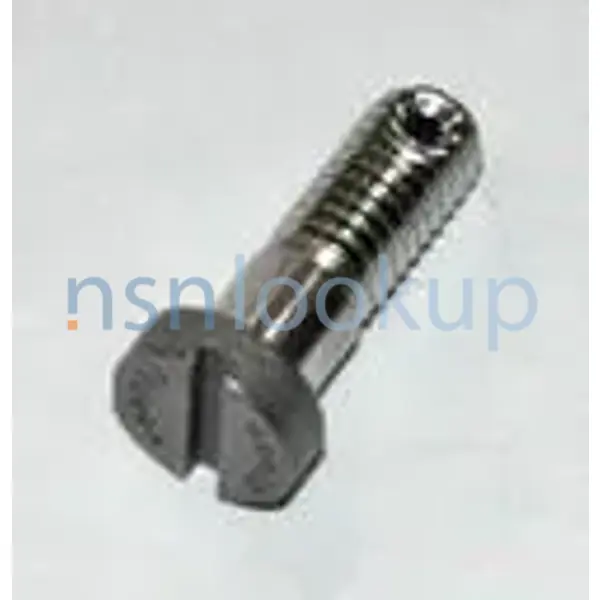

Shoulder Screw
5305001825598 001825598 3024T58P02
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD. View more Shoulder Screw
November 2023
6
Marketplace 5305-00-182-5598
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-182-5598 4+ Documents (More...)
/fsg-53/fsc-5305/us
Quotation Updated Every Day 5305-00-182-5598 RQST NE Updated Every Day 5305-00-182-5598 RQST Updated
Every Day 5305-00-182-5598 RQST NE Related Documents 5305-00-182-5598 1+ Documents ( More... ) https
/fsg-99/fsc-9999/uk
/fsg-84/fsc-8415/nz
/fsg-84/fsc-8455/ca
Restrictions 5305-00-182-5598
5305-00-182-5598 is a Shoulder Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-182-5598
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-182-5598
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Denmark (ZS01)
- Effective Date:
- 1 Nov 2000
Approved Sources 5305-00-182-5598
- Part Number
- Manufacturer
- Status
- 3024T58P02
- Manufacturer
- 03350 - General Electric Company (Active)
- Primary Buy
- Primary Buy
- 3024T58P02
- 99207 - General Electric Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5305-00-182-5598
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Distance From Head Largest Bearing Surface To Shank Hole Center [CRZS]
- 0.480 Inches Nominal First Hole
- Fastener Length [AASB]
- 0.550 Inches Minimum And 0.570 Inches Maximum
- Head Diameter [AASL]
- 0.295 Inches Minimum And 0.305 Inches Maximum
- Head Height [AASU]
- 0.085 Inches Minimum And 0.090 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Material [MATT]
- Nickel Alloy 718 Overall
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Slot
- Shank Unthreaded Hole Diameter [AAWB]
- 0.042 Inches Minimum First Hole And 0.052 Inches Maximum First Hole
- Shoulder Length [AATX]
- 0.170 Inches Minimum First Shoulder And 0.180 Inches Maximum First Shoulder
- Shoulder Shape [CWYB]
- Round First Shoulder
- Special Features [FEAT]
- Major Dia Of Thread Modified To 0.184-0.187 In.
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.370 Inches Minimum And 0.400 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unjf
Weapon Systems (WSDC) 5305-00-182-5598
