5305-00-155-3367

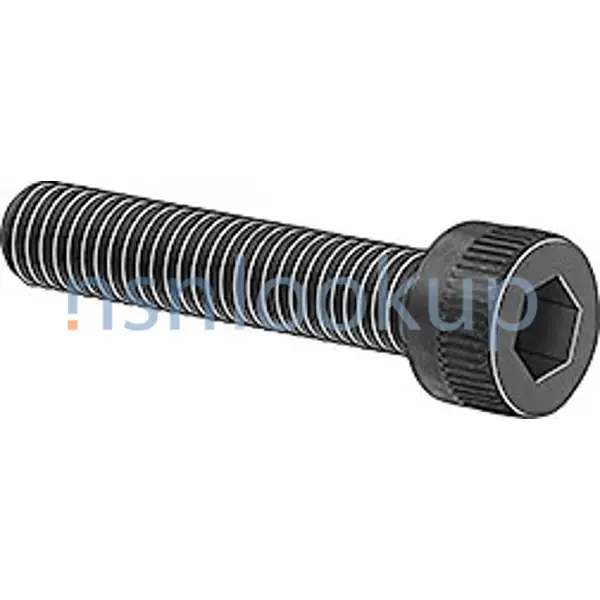

Socket Head Cap Screw
5305001553367 001553367 FFS86 91251A624 11705-016-00 NAS1352-6-16
An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw
Managed by United States
NSN Created on 14 Aug 1972
Data Last Changed
November 2023
November 2023
NATO Update Count
34
34
NATO Data Quality
Marketplace 5305-00-155-3367
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
91251A624 SCREW,CAP,SOCKET HEAD 25 EA NS
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 5 EA NS
5305-01-448-6474 SCREW,CAP,SOCKET HEAD 5 EA NS
FFS86 SCREW,CAP,SOCKET HEAD 1 EA NS
FFS86 SCREW,CAP,SOCKET HEAD 150 EA NS
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 3 EA NS
FF-S-86 SCREW,CAP,SOCKET HEAD 18 EA NS
91251A624 SCREW,CAP,SOCKET HEAD 10 EA NS
5305-00-155-3367 SCREW,CAP,SOCKET HEAD 10 EA NS
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 10 EA NS
11705-016-00 SCREW,CAP,SOCKET HEAD 10 EA NS
FF-S-86 SCREW,CAP,SOCKET HEAD 4 EA NS
Updated Every Day 91251A624 RQST NE
Updated Every Day 5305-00-155-3367 RQST NE
Updated Every Day 5305-00-155-3367 RQST
Updated Every Day 5305-00-155-3367 RQST NE
Related Documents 5305-00-155-3367 5+ Documents (More...)
FFS86 91251A624 NAS1352-6-16 11705-016-00 An externally threaded fastener whose threaded portion is
FFS86 SCREW,CAP,SOCKET HEAD 150 EA NS Request Quotation NAS1352-6-16 SCREW,CAP,SOCKET HEAD 3 EA NS Request
5305-00-155-3367 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation NAS1352-6-16 SCREW,CAP,SOCKET HEAD
FFS86 SCREW,CAP,SOCKET HEAD 150 EA NS Request Quotation NAS1352-6-16 SCREW,CAP,SOCKET HEAD 3 EA NS Request
5305-00-155-3367 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation NAS1352-6-16 SCREW,CAP,SOCKET HEAD
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 5 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 36 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 10 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 36 EA NS Request Quotation Subscribe to View Vendor Details...
a day Upgrade your Account Upgrade 5305-01-448-6474Socket Head Cap Screw5305014486474 014486474 91251A624
Every Day 91251A624 RQST NE Updated Every Day 5305-01-448-6474 RQST NE Updated Every Day 5305-01-448
RQST NE Updated Every Day 5305 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-155-3367 Socket
Every Day 91251A624 RQST NE Updated Every Day 5305-01-448-6474 RQST NE Updated Every Day 5305-01-448
RQST NE Updated Every Day 5305 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-155-3367 Socket
NAS1352-6-16 SCREW,CAP,SOCKET HEAD 36 BX NS Request Quotation Subscribe to View Vendor Details...
FFS86 SCREW,CAP,SOCKET HEAD 12 BX NS Request Quotation Subscribe to View Vendor Details...
FFS86 SCREW,CAP,SOCKET HEAD 150 BX NS Request Quotation NAS1352-6-16 SCREW,CAP,SOCKET HEAD 3 BX NS Request
FFS86 SCREW,CAP,SOCKET HEAD 12 BX NS Request Quotation Subscribe to View Vendor Details...
FFS86 SCREW,CAP,SOCKET HEAD 150 BX NS Request Quotation NAS1352-6-16 SCREW,CAP,SOCKET HEAD 3 BX NS Request
$1 a day Upgrade your Account Upgrade 5305-01-439-5928Socket Head Cap Screw5305014395928 014395928 FFS86
,TY4,(.5-13UNC-2AXLLG) FFS86,TY4,(.5-1 3UNC-2AX1LG) An externally threaded fastener whose threaded portion
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-439-5928 Socket Head Cap Screw 5305014395928 FFS86
,TY4,(.5-13UNC-2AXLLG) FFS86,TY4,(.5-1 3UNC-2AX1LG) An externally threaded fastener whose threaded portion
https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-01-439-5928 Socket Head Cap Screw 5305014395928 FFS86
Restrictions 5305-00-155-3367
5305-00-155-3367 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-155-3367
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-155-3367
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZCT
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Jan 2014
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Aug 2006
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2011
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5305-00-155-3367
- Part Number
- Manufacturer
- Status
- NAS1352-6-16
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- FFS86
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 11705-016-00
- 88900 - Upright Inc (Active)
- Secondary Buy
- Secondary Buy
- NAS1352-6-16
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 91251A624
- 39428 - Mcmaster-Carr Supply Co (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-155-3367
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.970 Inches Minimum And 1.000 Inches Maximum
- Hardness Rating [CQFM]
- 38.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.550 Inches Minimum And 0.562 Inches Maximum
- Head Height [AASU]
- 0.368 Inches Minimum And 0.375 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 155000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Internal Drive Style [ABQZ]
- Hexagon
- Width Across Flats [ASDB]
- 0.313 Inches Minimum And 0.316 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas1351 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Mil-C-13924,Class 1 Mil Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Oxide Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.845 Inches Minimum And 1.000 Inches Maximum
- Thread Series Designator [THSD]
- Unrc
- Thread Quantity Per Inch [CMLP]
- 16
Weapon Systems (WSDC) 5305-00-155-3367
DLA Procurement Analysis 5305-00-155-3367
- Last Stock Position:
- 13923 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-155-3367
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 5305-00-155-3367
5305-14-574-2983 5305-14-561-8796 5305-33-003-4555 5305-14-394-1927 5305-99-795-5990 5305-14-555-6484 5305-99-814-1331 5305-14-443-8895 5305-14-531-9093 5305-14-346-9020 5305-15-061-5272 5305-14-422-5659 5305-14-410-8395 5305-14-302-8324 5305-37-527-2501 5305-27-032-6730 5305-66-128-9482 5305-25-152-7572
Freight Information 5305-00-155-3367
5305-00-155-3367 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096640. A Sub NMFC of X. It has a NMFC Description of SCREWS, IRON OR STEEL. 5305-00-155-3367 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 50600 which rates the freight between FCL and LCL. 5305-00-155-3367 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-155-3367 is not classified as a special type of cargo when transported by water. 5305-00-155-3367 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-155-3367
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-155-3367 8 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE5E219V1535
- 14 Nov 2018
- Subscribe
- 4228
- Subscribe
- Subscribe
- Subscribe
- SPE5E218V7483
- 15 May 2018
- Subscribe
- 4993
- Subscribe
- Subscribe
- Subscribe
- SPE5E218V7394P00001
- 14 May 2018
- Subscribe
- 5594
- Subscribe
- Subscribe
- Subscribe
- SPE5E018V3001
- 11 Apr 2018
- Subscribe
- 10
- Subscribe
- Subscribe
- Subscribe
- SPE5E218V5675
- 23 Mar 2018
- Subscribe
- 2322
- Subscribe
- Subscribe
- Subscribe
- SPE5E218V5356
- 14 Mar 2018
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
- SPE5E218V3837P00001
- 05 Feb 2018
- Subscribe
- 1624
- Subscribe
- Subscribe
- Subscribe
- SPE5E218V2823P00001
- 02 Jan 2018
- Subscribe
- 1042
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5305-00-155-3367 October 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
