5305-00-151-6201

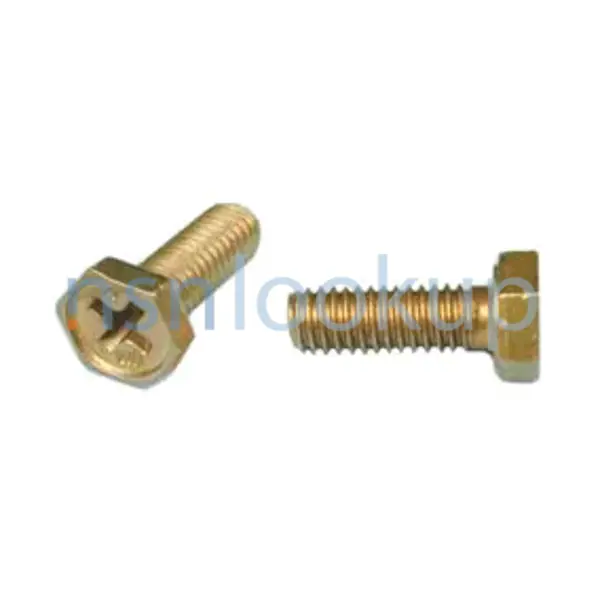

Machine Screw
5305001516201 001516201 NAS1096-1-12
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
November 2023
22
Marketplace 5305-00-151-6201
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-151-6201 5+ Documents (More...)
NAS1096-1-12 SCREW,MACHINE 695 PG NS Request Quotation Subscribe to View Vendor Details...
NAS1096-1-12 SCREW,MACHINE 125 PG NS Request Quotation Updated Every Day 5305-00-151-6201 RQST NE Updated
Restrictions 5305-00-151-6201
5305-00-151-6201 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-151-6201
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-151-6201
- US Army (A919)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CT
- US Air Force (FXGI)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Belgium (ZB01)
- Effective Date:
- 1 Feb 2001
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Feb 1999
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
Approved Sources 5305-00-151-6201
- Part Number
- Manufacturer
- Status
- NAS1096-1-12
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
Datasheet 5305-00-151-6201
- Characteristic
- Specifications
- FIIG
- Specifications
- A500D0
- Fastener Length [AASB]
- 0.734 Inches Minimum And 0.781 Inches Maximum
- Hardness Rating [CQFM]
- 26.0 Rockwell C Minimum And 32.0 Rockwell C Maximum
- Head Height [AASU]
- 0.080 Inches Minimum And 0.095 Inches Maximum
- Head Style [AASK]
- Hexagon
- Minimum Tensile Strength [CQBC]
- 125000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.138 Inches
- Internal Drive Style [ABQZ]
- Cross Recess Type 1
- Screw Material Document And Classification [CYAW]
- Mil-S-6050 Mil Spec 1St Material Response Or Ams 6300 Assn Std 2Nd Material Response
- Screw Surface Treatment Document And Classification [CYBE]
- Qq-P-416,Type 2,Class 3 Fed Spec Single Treatment Response
- Screw Surface Treatment [CYBA]
- Cadmium And Chromate
- Screw Material [CYAU]
- Steel Comp 8630 Or Steel Comp 4037
- Width Between Flats [AATB]
- 0.241 Inches Minimum And 0.250 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas1096 Professional/Industrial Association Standard
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.608 Inches Minimum And 0.749 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unc
