5305-00-143-3266

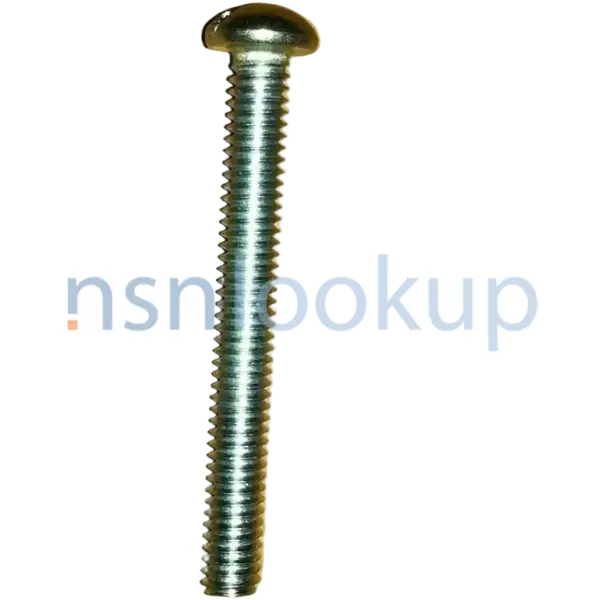

Machine Screw
5305001433266 001433266 MS27039-0825
An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD. View more Machine Screw
October 2025
37
Marketplace 5305-00-143-3266
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-143-3266 1+ Documents (More...)
MS27039-0825 SCREW,MACHINE 310 PG NS Request Quotation Subscribe to View Vendor Details...
MS27039-0825 SCREW,MACHINE 200 PG NS Request Quotation Subscribe to View Vendor Details... 5305-00-143
Restrictions 5305-00-143-3266
5305-00-143-3266 is a Machine Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
