5305-00-143-1512

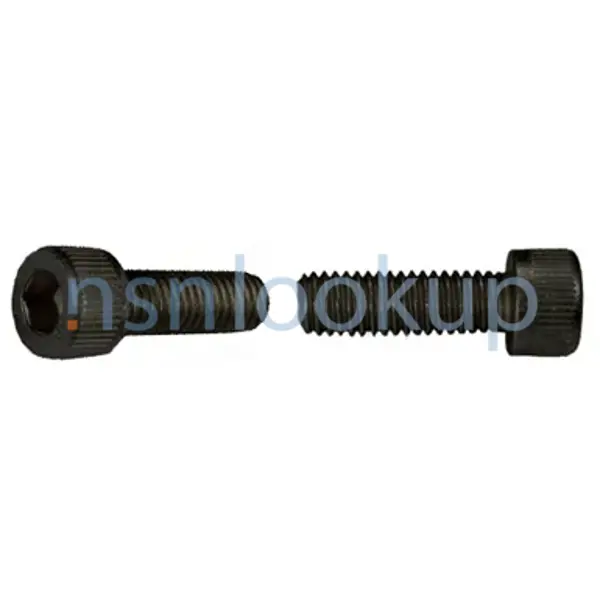

Socket Head Cap Screw
5305001431512 001431512 NAS1351-3H12P S815010H12 10124995
An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw
Managed by United States
NSN Created on 26 Jul 1968
Data Last Changed
November 2023
November 2023
NATO Update Count
35
35
NATO Data Quality
Marketplace 5305-00-143-1512
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-143-1512 5+ Documents (More...)
NAS1351-3H12P S815010H12 10124995 An externally threaded fastener whose threaded portion is of one nominal
NAS1351-3H12P SCREW,CAP,SOCKET HEAD 2 EA NS Request Quotation Updated Every Day 5305-00-143-1512 RQST
Socket Head Cap Screw 5305001431512 Documents 5305-00-143-1512 3+ Documents ( More... ) https//
NAS1351-3H12P SCREW,CAP,SOCKET HEAD 2 EA NS Request Quotation Updated Every Day 5305-00-143-1512 RQST
Socket Head Cap Screw 5305001431512 Documents 5305-00-143-1512 3+ Documents ( More... ) https//
enable JavaScript in your web browser . 4240-12-387-2716Pruefaus Behaelter4240123872716 123872716 10124995
www.nsnlookup.com /fsg-42/fsc-4240/de 4240-12-387-2716 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-143-1512
Socket Head Cap Screw 5305001431512 5305-00-143-1512 (Identification) 4/4 - - - - 1. https//www.nsnlookup.com
www.nsnlookup.com /fsg-42/fsc-4240/de 4240-12-387-2716 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-143-1512
Socket Head Cap Screw 5305001431512 5305-00-143-1512 (Identification) 4/4 - - - - 1. https//www.nsnlookup.com
Socket Head Cap Screw 5305001431512 https//www.nsnlookup.com /fsg-25/fsc-2540/uk 2540-99-793-4197
www.nsnlookup.com /fsg-29/fsc-2925/us 2925-01-137-4062 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-143-1512
Socket Head Cap Screw 5305001431512 693754,57529,697503,696972,695720,687387B,728464 One Each And
www.nsnlookup.com /fsg-29/fsc-2925/us 2925-01-137-4062 https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-143-1512
Socket Head Cap Screw 5305001431512 693754,57529,697503,696972,695720,687387B,728464 One Each And
353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866 5305-00-155-3367 5305-00-058-5087 5305-00-143-1512
353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866 5305-00-155-3367 5305-00-058-5087 5305-00-143-1512
Restrictions 5305-00-143-1512
5305-00-143-1512 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5305-00-143-1512
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BFCT
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEJBHD
- Finland (WF01)
- Effective Date:
- 1 May 2009
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Singapore (YJ01)
- Effective Date:
- 1 Jul 2008
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Nov 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- United Kingdom (ZK01)
- Effective Date:
- 1 Aug 1999
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Jul 2014
- Greece (ZU01)
- Effective Date:
- 1 May 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5305-00-143-1512
- Part Number
- Manufacturer
- Status
- NAS1351-3H12P
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- NAS1351-3H12P
- 5M696 - Ufc Aerospace Corp. (Active)
- Secondary Buy
- Secondary Buy
- S815010H12
- 70210 - Honeywell International Inc. (Active)
- Secondary Buy
- Secondary Buy
- 10124995
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5305-00-143-1512
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.734 Inches Minimum And 0.766 Inches Maximum
- Hardness Rating [CQFM]
- 36.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.303 Inches Minimum And 0.312 Inches Maximum
- Head Height [AASU]
- 0.185 Inches Minimum And 0.190 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Hole Configuration Style [CRHC]
- Round Internal Hexagon
- Hole Diameter [AAUB]
- 0.047 Inches Nominal
- Hole Type [BQDM]
- Drilled
- Hole Quantity [ASXK]
- 6
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 130000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 6 Type
- Internal Drive Style [ABQZ]
- Hexagon
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Width Across Flats [ASDB]
- 0.156 Inches Minimum And 0.158 Inches Maximum
- Surface Treatment Document And Classification [STDC]
- Ams-Qq-P-416, Ty 2, Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.672 Inches Minimum And 0.766 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unf
Weapon Systems (WSDC) 5305-00-143-1512
DLA Procurement Analysis 5305-00-143-1512
- Last Stock Position:
- 3552 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-143-1512
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-00-143-1512
Freight Information 5305-00-143-1512
5305-00-143-1512 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-143-1512 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-143-1512 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-143-1512 is not classified as a special type of cargo when transported by water. 5305-00-143-1512 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-143-1512
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-143-1512 7 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A722F6295
- 13 Mar 2022
- Subscribe
- 1929
- Subscribe
- Subscribe
- Subscribe
- SPE4A722F6295
- 13 Mar 2022
- Subscribe
- 1929
- Subscribe
- Subscribe
- Subscribe
- SPE5EY19F5783
- 21 Dec 2018
- Subscribe
- 415
- Subscribe
- Subscribe
- Subscribe
- SPE5EY17D05160085
- 23 Jul 2017
- Subscribe
- 2084
- Subscribe
- Subscribe
- Subscribe
- SPM5EY12D00015114
- 08 May 2017
- Subscribe
- 1751
- Subscribe
- Subscribe
- Subscribe
- SPM5EY12D00015009
- 09 Apr 2017
- Subscribe
- 2738
- Subscribe
- Subscribe
- Subscribe
- SPM5EY12D00012394
- 02 Apr 2015
- Subscribe
- 3083
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5305-00-143-1512 April 2020
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
