5305-00-138-9866

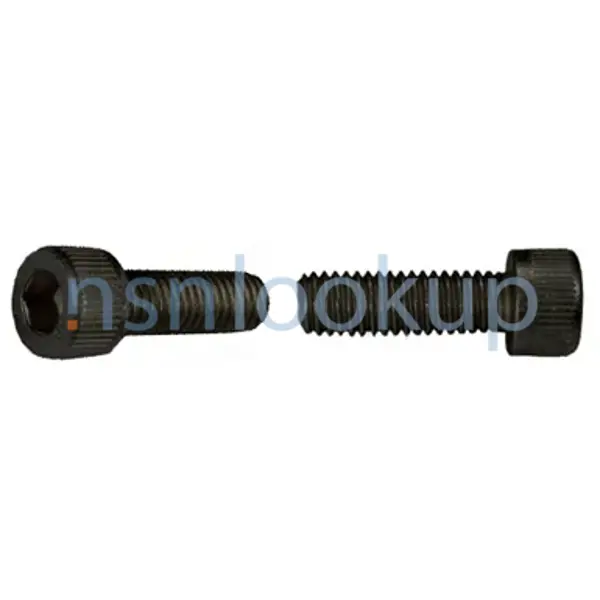

Socket Head Cap Screw
5305001389866 001389866 NAS1351-4LB12P NAS1351-4LE12P 407180518
An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE. View more Socket Head Cap Screw
Managed by United States
NSN Created on 27 Aug 1971
Data Last Changed
November 2023
November 2023
NATO Update Count
36
36
NATO Data Quality
Marketplace 5305-00-138-9866
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-138-9866 5+ Documents (More...)
NAS1351-4LB12P NAS1351-4LE12P 407180518 An externally threaded fastener whose threaded portion is of
NAS1351-4LB12P SCREW,CAP,SOCKET HEAD 63 EA NS Request Quotation NAS1351-4LE12P SCREW,CAP,SOCKET HEAD
... ) https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-138-9866 Socket Head Cap Screw 5305001389866
NAS1351-4LB12P SCREW,CAP,SOCKET HEAD 63 EA NS Request Quotation NAS1351-4LE12P SCREW,CAP,SOCKET HEAD
... ) https//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-138-9866 Socket Head Cap Screw 5305001389866
330-3670 5305-00-082-4708 5305-01-318-5295 5305-01-353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866
330-3670 5305-00-082-4708 5305-01-318-5295 5305-01-353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866
330-3670 5305-00-082-4708 5305-01-318-5295 5305-01-353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866
330-3670 5305-00-082-4708 5305-01-318-5295 5305-01-353-0294 5305-00-210-4866 5305-00-182-7460 5305-00-138-9866
Restrictions 5305-00-138-9866
5305-00-138-9866 is a Socket Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-138-9866
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-138-9866
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBF
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Jan 2000
- Belgium (ZB01)
- Effective Date:
- 1 Nov 1999
- Canada (ZC01)
- Effective Date:
- 1 May 2008
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 May 2004
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5305-00-138-9866
- Part Number
- Manufacturer
- Status
- NAS1351-4LE12P
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 407180518
- 3226A - Rafael (Active)
- Secondary Buy
- Secondary Buy
- 5305001389866
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305001389866
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- NAS1351-4LB12P
- 80205 - National Aerospace Standards (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-138-9866
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.720 Inches Minimum And 0.750 Inches Maximum
- Hardness Rating [CQFM]
- 38.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
- Head Diameter [AASL]
- 0.365 Inches Minimum And 0.375 Inches Maximum
- Head Height [AASU]
- 0.244 Inches Minimum And 0.250 Inches Maximum
- Head Style [AASK]
- Flat Chamfer
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 180000 Pounds Per Square Inch
- Minimum Yield Strength [CQHQ]
- 155000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Internal Drive Style [ABQZ]
- Hexagon
- Locking Feature [AAUM]
- Patch Threads Or Pellet Threads Or Strip Threads
- Width Across Flats [ASDB]
- 0.188 Inches Minimum And 0.190 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas1351 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- Ams-Qq-P-416, Ty 2, Cl 2 Fed Spec All Treatment Responses Overall
- Surface Treatment [SFTT]
- Cadmium Overall And Chromate Overall
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.649 Inches Minimum And 0.750 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 28
- Thread Series Designator [THSD]
- Unrf
