5305-00-135-5157
Assembled Washer Screw
5305001355157 001355157 9417936 271468 09417926 9417926 PC9417926 594271 PC09417926
A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s). View more Assembled Washer Screw
Managed by United States
NSN Created on 6 Jan 1969
Data Last Changed
November 2023
November 2023
NATO Update Count
44
44
NATO Data Quality
Marketplace 5305-00-135-5157
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-135-5157 5+ Documents (More...)
9417936 271468 09417926 9417926 PC9417926 594271 PC09417926 A SCREW, (as modified) to which has been

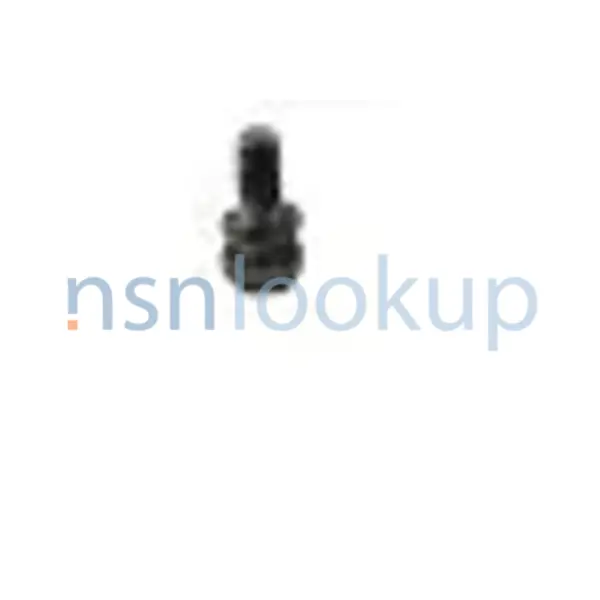

Photo 1/4 NSN 5305-00-135-5157 (Identification) 2/4 NSN 5305-00-135-5157 (Identification) 3/4 NSN
PC09417926 SCREW,ASSEMBLED WASHER 22 EA NS Request Quotation Subscribe to View Vendor Details... 271468
Photo 1/4 NSN 5305-00-135-5157 (Identification) 2/4 NSN 5305-00-135-5157 (Identification) 3/4 NSN
PC09417926 SCREW,ASSEMBLED WASHER 22 EA NS Request Quotation Subscribe to View Vendor Details... 271468
enable JavaScript in your web browser . 2520-99-821-8250Cl Bearing Assembly2520998218250 998218250 594271
www.nsnlookup.com /fsg-25/fsc-2520/uk 2520-99-821-8250 Cl Bearing Assembly 2520998218250998218250 594271
a day Upgrade your Account Upgrade 5305-00-282-7676Assembled Washer Screw5305002827676 002827676 594271
www.nsnlookup.com /fsg-25/fsc-2520/uk 2520-99-821-8250 Cl Bearing Assembly 2520998218250998218250 594271
a day Upgrade your Account Upgrade 5305-00-282-7676Assembled Washer Screw5305002827676 002827676 594271
to enable JavaScript in your web browser . 5330-15-166-3692Gomma Di Tenuta5330151663692 151663692 271468
to enable JavaScript in your web browser . 5310-14-247-9191Round Plain Nut5310142479191 142479191 271468
Upgrade your Account Upgrade 5998-01-384-3098Electronic Components Assembly5998013843098 013843098 271468
to enable JavaScript in your web browser . 5310-14-247-9191Round Plain Nut5310142479191 142479191 271468
Upgrade your Account Upgrade 5998-01-384-3098Electronic Components Assembly5998013843098 013843098 271468
to enable JavaScript in your web browser . 5310-14-247-9191Round Plain Nut5310142479191 142479191 271468
to enable JavaScript in your web browser . 5330-15-166-3692Gomma Di Tenuta5330151663692 151663692 271468
Assembled Washer Screw 5305001355157 Upgrade your Account Upgrade 5305-00-135-5157Assembled Washer
to enable JavaScript in your web browser . 5330-15-166-3692Gomma Di Tenuta5330151663692 151663692 271468
Assembled Washer Screw 5305001355157 Upgrade your Account Upgrade 5305-00-135-5157Assembled Washer
a day Upgrade your Account Upgrade 5305-00-282-7676Assembled Washer Screw5305002827676 002827676 594271
www.nsnlookup.com /fsg-25/fsc-2520/uk 2520-99-821-8250 Cl Bearing Assembly 2520998218250998218250 594271
594271 Cl Bearing Assembly 2520998218250998218250 enable JavaScript in your web browser . 2520-99-821
www.nsnlookup.com /fsg-25/fsc-2520/uk 2520-99-821-8250 Cl Bearing Assembly 2520998218250998218250 594271
594271 Cl Bearing Assembly 2520998218250998218250 enable JavaScript in your web browser . 2520-99-821
Restrictions 5305-00-135-5157
5305-00-135-5157 is a Assembled Washer Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5305-00-135-5157
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-135-5157
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBF
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 1997
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 1994
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5305-00-135-5157
- Part Number
- Manufacturer
- Status
- 271468
- Manufacturer
- 24617 - General Motors Corp (Active)
- Primary Buy
- Primary Buy
- 09417926
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Secondary Buy
- Secondary Buy
- 9417926
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Secondary Buy
- Secondary Buy
- PC9417926
- C7432 - Power Components (Deutschland) Gmbh (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 594271
- 21450 - Army Weapons Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PC09417926
- C7432 - Power Components (Deutschland) Gmbh (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 9417936
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-135-5157
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.750 Inches Nominal
- Head Diameter [AASL]
- 0.389 Inches Minimum And 0.414 Inches Maximum
- Head Height [AASU]
- 0.155 Inches Minimum And 0.170 Inches Maximum
- Head Style [AASK]
- Fillister
- Material [MATT]
- Steel Comp 1010 Fastener Or Steel Comp 1011 Fastener Or Steel Comp 1013 Fastener Or Steel Comp 1015 Fastener Or Steel Comp 1016 Fastener Or Steel Comp 1017 Fastener Or Steel Comp 1018 Fastener Or Steel Comp 1019 Fastener Or Steel Comp 1020 Fastener
- Nominal Thread Diameter [AHYM]
- 0.250 Inches
- Internal Drive Style [ABQZ]
- Slot
- Material Document And Classification [MDCL]
- 66 Fed Std All Material Responses Fastener
- Primary Washer Outside Diameter [CSPG]
- 0.384 Inches Minimum And 0.400 Inches Maximum
- Primary Washer Style [CTHW]
- Split Helical Ring
- Primary Washer Material Thickness [CTJJ]
- 0.063 Inches Minimum
- Washer Quantity [AAVW]
- 1
- Surface Treatment [SFTT]
- Cadmium Overall Or Zinc Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.650 Inches Minimum
- Thread Quantity Per Inch [CMLP]
- 20
- Thread Series Designator [THSD]
- Unc
