5305-00-116-0034
Close Tolerance Screw
5305001160034 001160034 NAS1153E4 10124988
A SCREW, MACHINE or SCREW, CAP, SOCKET HEAD whose unthreaded portion is of specified grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001 IN.) (0.025 mm) or less of a specific diameter for items (1.000 IN.) (25 mm) or less in diameter. Items over (1.000 IN.) (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015 IN.) (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001 IN.) (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. The head is designed to be held or driven with an inserted driver. It is not designed for rotation by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. View more Close Tolerance Screw
November 2023
43
Marketplace 5305-00-116-0034
Request a Quotation from participating marketplace vendors
Related Documents 5305-00-116-0034 5+ Documents (More...)

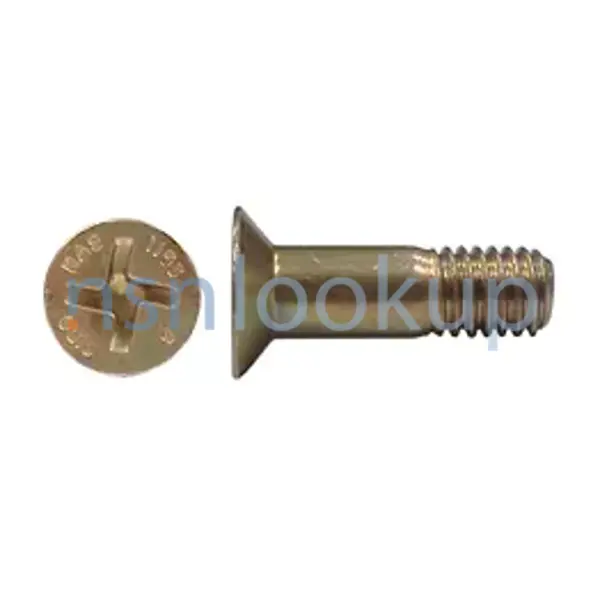

Photo 1/3 NSN 5305-00-116-0034 (Identification) 2/3 NSN 5305-00-116-0034 (Identification) 3/3 -
NAS1153E4 SCREW,CLOSE TOLERANCE 44 EA NS Request Quotation Updated Every Day 5305-00-116-0034 RQST NE
NAS1153E4 SCREW,CLOSE TOLERANCE 2371 EA NS Request Quotation Subscribe to View Vendor Details...
NAS1153E4 SCREW,CLOSE TOLERANCE 1 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5305-00-116-0034
5305-00-116-0034 is a Close Tolerance Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-116-0034
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-116-0034
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIZD
- Supplementary Collaborators:
- GTKE
- Finland (WF01)
- Effective Date:
- 1 May 2009
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Czech Republic (WZ01)
- Effective Date:
- 1 Dec 2015
- Brazil (YA01)
- Effective Date:
- 1 Oct 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Jul 2000
- Malaysia (YW01)
- Effective Date:
- 1 Aug 2000
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 30 Jun 2004
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- South Africa (ZD01)
- Effective Date:
- 1 May 2013
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Netherlands (ZN01)
- Effective Date:
- 1 Dec 1995
- Denmark (ZS01)
- Effective Date:
- 1 Jan 2013
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5305-00-116-0034
- Part Number
- Manufacturer
- Status
- NAS1153E4
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- 10124988
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5305-00-116-0034
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Countersink Angle [CRSQ]
- 99.0 Degrees Minimum And 101.0 Degrees Maximum
- Fastener Length [AASB]
- 0.511 Inches Minimum And 0.541 Inches Maximum
- Grip Length [ANEE]
- 0.240 Inches Minimum And 0.260 Inches Maximum
- Grip Diameter [AAUR]
- 0.1885 Inches Minimum And 0.1895 Inches Maximum
- Head Diameter [AASL]
- 0.328 Inches Minimum And 0.385 Inches Maximum
- Head Style [AASK]
- Flat Countersunk
- Material [MATT]
- Iron Alloy 660 Overall
- Minimum Tensile Strength [CQBC]
- 160000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.190 Inches
- Internal Drive Style [ABQZ]
- Offset Cruciform (Torque Set)
- Material Document And Classification [MDCL]
- Ams 5737 Assn Std Single Material Response Overall
- Specification/Standard Data [ZZZK]
- 80205-Nas1153 Professional/Industrial Association Standard
- Surface Finish [CSYM]
- 32.0 Microinches Bearing Surface Of Head
- Surface Finish [CSYM]
- 32.0 Microinches Grip
- Surface Finish [CSYM]
- 32.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A
- Thread Length [AASA]
- 0.251 Inches Minimum And 0.301 Inches Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Quantity Per Inch [CMLP]
- 32
- Thread Series Designator [THSD]
- Unjf
Weapon Systems (WSDC) 5305-00-116-0034
DLA Procurement Analysis 5305-00-116-0034
- Last Stock Position:
- 7670 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-116-0034
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5305-00-116-0034
Freight Information 5305-00-116-0034
5305-00-116-0034 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-116-0034 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-116-0034 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-116-0034 is not classified as a special type of cargo when transported by water. 5305-00-116-0034 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-116-0034
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- 10
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-116-0034 3 Records
Contracting Technical Data File (CTDF) 5305-00-116-0034 October 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
