5305-00-115-9526

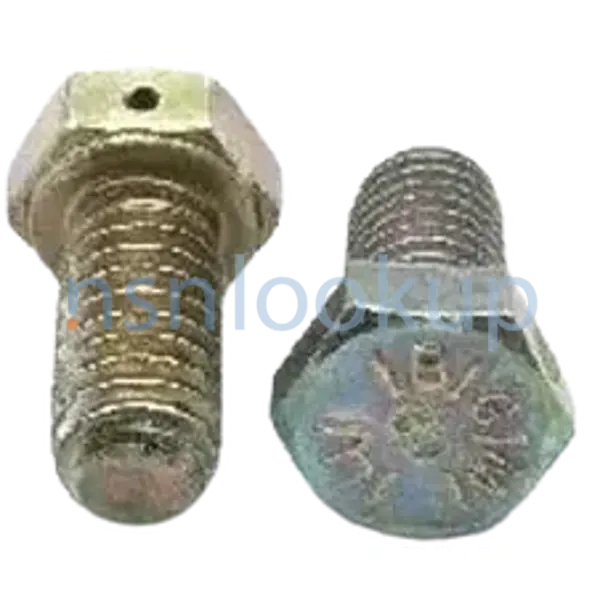

Hexagon Head Cap Screw
5305001159526 001159526 FFS85 FF-S-85 NASM90725 S509 20998 WG107145 35A2D109 123478-L10 0826V039 SZ3-8INX16UNC2A X3-4INLG E108165 FIND NO 260 EE45762 MS90725-58G 0702077 16TX243 180120 MS18154-58 852388-00 B1821BH038C075D MS90725-58 5305PL0677195 5305002693209
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD. View more Hexagon Head Cap Screw
Managed by United States
NSN Created on 22 Feb 1973
Data Last Changed
July 2025
July 2025
NATO Update Count
85
85
NATO Data Quality
Marketplace 5305-00-115-9526
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 HD NS
B1821BH038C075D SCREW,CAP,HEXAGON HEAD 101 HD NS
FFS85 SCREW,CAP,HEXAGON HEAD 94 HD NS
MS90725-58 SCREW,CAP,HEXAGON HEAD 22 HD NS
20998 SCREW,CAP,HEXAGON HEAD 1 HD NS
FFS85 SCREW,CAP,HEXAGON HEAD 2 HD NS
FF-S-85 SCREW,CAP,HEXAGON HEAD 37 HD NS
Updated Every Day 5305-00-115-9526 RQST NE
Updated Every Day 5305-00-115-9526 RQST
Updated Every Day 5305-00-115-9526 RQST NE
Related Documents 5305-00-115-9526 5+ Documents (More...)
FFS85 FF-S-85 NASM90725 S509 20998 WG107145 35A2D109 123478-L10 0826V039 SZ3-8INX16UNC2A X3-4INLG E108165
FIND NO 260 EE45762 MS90725-58G 0702077 16TX243 180120 MS18154-58 852388-00 B1821BH038C075D MS90725-
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 HD NS Request Quotation B1821BH038C075D SCREW,CAP,HEXAGON HEAD 101
FIND NO 260 EE45762 MS90725-58G 0702077 16TX243 180120 MS18154-58 852388-00 B1821BH038C075D MS90725-
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 HD NS Request Quotation B1821BH038C075D SCREW,CAP,HEXAGON HEAD 101
MS18154-58 SCREW,CAP,HEXAGON HEAD RQST NS Request Quotation MS90725-58 SCREW,CAP,HEXAGON HEAD RQST NS
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 HD NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 HD NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 37 HD NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 2 HD NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 HD NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 HD NS Request
FF-S-85 SCREW,CAP,HEXAGON HEAD 37 HD NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 2 HD NS Request
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
FFS85 SCREW,CAP,HEXAGON HEAD 2 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 37 EA NS Request
//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-269-3209 Hexagon Head Cap Screw 5305002693209 FF-S-85
FFS85 SCREW,CAP,HEXAGON HEAD 2 EA NS Request Quotation FF-S-85 SCREW,CAP,HEXAGON HEAD 37 EA NS Request
//www.nsnlookup.com /fsg-53/fsc-5305/us 5305-00-269-3209 Hexagon Head Cap Screw 5305002693209 FF-S-85
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
MS90725-58 SCREW,CAP,HEXAGON HEAD RQST NS Request Quotation MS18154-58 SCREW,CAP,HEXAGON HEAD RQST NS
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
MS90725-58 SCREW,CAP,HEXAGON HEAD RQST NS Request Quotation MS18154-58 SCREW,CAP,HEXAGON HEAD RQST NS
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
FF/S/85 SCREW,CAP,HEXAGON HEAD 30 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 11 EA NS Request
MS90725-58 SCREW,CAP,HEXAGON HEAD RQST NS Request Quotation MS18154-58 SCREW,CAP,HEXAGON HEAD RQST NS
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
MS90725-58 SCREW,CAP,HEXAGON HEAD RQST NS Request Quotation MS18154-58 SCREW,CAP,HEXAGON HEAD RQST NS
FF-S-85 SCREW,CAP,HEXAGON HEAD 200 EA NS Request Quotation FFS85 SCREW,CAP,HEXAGON HEAD 94 EA NS Request
Restrictions 5305-00-115-9526
5305-00-115-9526 is a Hexagon Head Cap Screw that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5305-00-115-9526
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5305-00-115-9526
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AJCTCLBFBDAZ
- US Coast Guard (C918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- C004
- National Security Agency (DGXK)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- DKZ2
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- NASA (G06X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G06I
- NASA (G10X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G10I
- NASA (G15X)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- G15I
- NASA (G170)
- Effective Date:
- 1 Apr 1991
- NASA (G180)
- Effective Date:
- 1 Apr 1991
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GEKEJVHSHDGT
- MOE Rule:
- S911
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- S006
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 Jul 2000
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- MOE Rule:
- X002
- Effective Date:
- 1 Apr 1991
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Sep 1993
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Oct 2000
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 5305-00-115-9526
- Part Number
- Manufacturer
- Status
- B1821BH038C075D
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Primary Buy
- Primary Buy
- FFS85
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- FF-S-85
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- NASM90725
- 80205 - National Aerospace Standards (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS90725-58G
- 0198B - Gestion De Materiales Y Proyectos Sa (Active)
- Secondary Buy
- Secondary Buy
- 0702077
- S3002 - General Dynamics European, (Active)
- Secondary Buy
- Secondary Buy
- 16TX243
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 180120
- 11862 - General Motors Corp Chevrolet Motor (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MS18154-58
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 852388-00
- 32345 - Defense Reduction Agency (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- B1821BH038C075D
- 80204 - American National Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS90725-58
- 80205 - National Aerospace Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- EE45762
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5305001159526
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 5305PL0677195
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5305002693209
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 16TX243
- 75Q65 - Oshkosh Defense Llc (Active)
- Advisory Reference
- Advisory Reference
- S509
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 20998
- 03476 - Terex Reedrill Dba Reedrill Texoma (Active)
- Advisory Reference
- Advisory Reference
- WG107145
- 3X894 - Control Flow, Inc. (Active)
- Advisory Reference
- Advisory Reference
- 35A2D109
- 33968 - Clark Equipment Co (Active)
- Advisory Reference
- Advisory Reference
- 123478-L10
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- 0826V039
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- SZ3-8INX16UNC2A X3-4INLG
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
- E108165 FIND NO 260
- 3X894 - Control Flow, Inc. (Active)
- Advisory Reference
- Advisory Reference
- EE45762
- 75Q65 - Oshkosh Defense Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5305-00-115-9526
- Characteristic
- Specifications
- FIIG
- Specifications
- A003B0
- Fastener Length [AASB]
- 0.719 Inches Minimum And 0.750 Inches Maximum
- Hardness Rating [CQFM]
- 32.0 Rockwell C Minimum Overall And 38.0 Rockwell C Maximum Overall
- Head Height [AASU]
- 0.226 Inches Minimum And 0.243 Inches Maximum
- Head Style [AASK]
- Hexagon
- Material Document And Classification [MDCL]
- Sae Gr 8 Assn Std Single Material Response Overall
- Material [MATT]
- Steel Overall
- Minimum Tensile Strength [CQBC]
- 150000 Pounds Per Square Inch
- Nominal Thread Diameter [AHYM]
- 0.375 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 10P Style And 8 Grade
- Width Between Flats [AATB]
- 0.551 Inches Minimum And 0.563 Inches Maximum
- Surface Finish [CSYM]
- 63.0 Microinches Threads
- Surface Treatment Document And Classification [STDC]
- Astm B633 Ty 2 Sc 3 Assn Std Single Treatment Response Overall
- Surface Treatment [SFTT]
- Zinc Overall And Chromate Overall
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.750 Inches Maximum
- Thread Series Designator [THSD]
- Unc
- Thread Quantity Per Inch [CMLP]
- 16
Weapon Systems (WSDC) 5305-00-115-9526
DLA Procurement Analysis 5305-00-115-9526
- Last Stock Position:
- 69100 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5305-00-115-9526
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- US Coast Guard (GP)
- HD
- Subscribe
- 1
- HD
- Oct 2021
- Defense Logistics Agency (DS)
- HD
- Subscribe
- 1
- HD
- Oct 2020
- US Marine Corps (DM)
- HD
- Subscribe
- 1
- HD
- Oct 2019
- Department of the Air Force (DF)
- HD
- Subscribe
- 1
- HD
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 5305-00-955-5627
- 0
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5305-00-115-9526
Freight Information 5305-00-115-9526
5305-00-115-9526 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5305-00-115-9526 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5305-00-115-9526 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5305-00-115-9526 is not classified as a special type of cargo when transported by water. 5305-00-115-9526 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5305-00-115-9526
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5305-00-115-9526 9 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623FBT1M
- 04 Aug 2023
- Subscribe
- 108
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FBT1M
- 04 Aug 2023
- Subscribe
- 108
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FBG8Z
- 02 Aug 2023
- Subscribe
- 83
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FBG9A
- 02 Aug 2023
- Subscribe
- 146
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FBG8Z
- 02 Aug 2023
- Subscribe
- 83
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FBG9A
- 02 Aug 2023
- Subscribe
- 146
- Subscribe
- Subscribe
- Subscribe
- SPE4A621V202B
- 06 Apr 2021
- Subscribe
- 298
- Subscribe
- Subscribe
- Subscribe
- SPE5E816V7193
- 18 Aug 2016
- Subscribe
- 376
- Subscribe
- Subscribe
- Subscribe
- SPE5E216MQ324P00001
- 09 Aug 2016
- Subscribe
- 401
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5305-00-115-9526 October 2020
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
